Component Snapshot At-a-Glance

• Model: MVAJ27T1FB0784D
• Alt. P/N: MVAJ27L1FB0784D (standard low-burden coil, no surge suppression); MVAJ27B1FB0784D (medium-burden coil); MVAJ53 (no internal drop-off delay)
• Product Series: MVAJ Midos electromechanical trip/lockout relay family, unified rack base footprint matching MCGG/MVAX/MVTT/MCTI protection relays

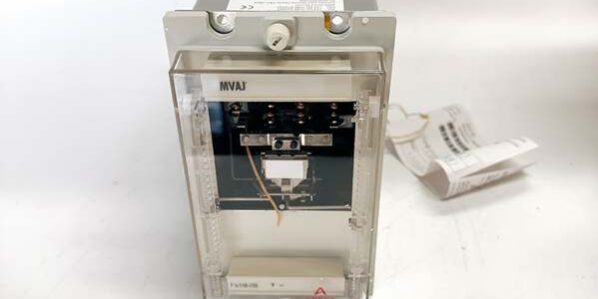

• Hardware Type: Full withdrawable plug-in latching trip relay, blue aluminum industrial Midos chassis, transparent front window with visible mechanical trip flag
• Key Feature: T-series transient-hardened anti-surge 110/125VDC coil, fixed 40–60ms copper slug drop-off delay, mechanical hand-reset latch, multi-stack arc-resistant changeover contacts with magnetic blowout plates
• Primary Field Use: Latch breaker trip signals and maintain fault lockout logic; internal short delay ensures series fault flag/SCADA auxiliary relays complete operation before coil power cuts; T coil variant suppresses cable capacitance transients on long remote trip wiring to avoid nuisance pickup.

Hard-Numbers: Technical Specifications

• Protocol Support: Pure electromechanical hardware, no digital bus communication; volt-free C/O trip/alarm contact outputs
• Port Count: DC coil supply terminals, multi-pole independent contact stacks for main breaker trip, local cabinet alarm, remote SCADA fault indication
• Baud/Data Rate: No serial data transmission
• Operating Temperature: -10°C to +55°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 2000Vrms dielectric withstand between coil winding and contact wiring
• Power Draw: T anti-transient coil, nominal low steady-state burden, integrated RC absorption network to block stray capacitance leakage pulses
• Nominal Coil Voltage: 110/125 VDC station control battery, reliable pickup at 70% rated voltage, immunity to short-duration stray voltage transients
• Drop-off Delay Window: Fixed factory 40–60ms copper slug delay before main coil holding circuit opens
• Reset Method: Front panel mechanical hand-reset trip flag; latched fault state persists after coil de-energization
• Operate Speed: ≤10ms full armature pull-in at rated DC voltage
• Contact Continuous Rating: 5A @300VDC resistive load; 40W DC inductive breaking capacity with integrated magnetic blowout plates
• 3s Fault Make/Carry Rating: 30A peak transient current capacity for direct breaker trip coil switching
• Mechanical Endurance: Minimum 10,000 loaded fault switching cycles
• Physical Weight: 0.43kg fully assembled Midos draw-out unit

The Real-World Problem It Solves

Standard MVAJ27L low-burden coils lack transient suppression; hundreds-of-meters remote trip cables accumulate stray capacitance, short leakage pulses trigger false relay pickup and spurious breaker lockout.Non-delayed MVAJ53 latching relays cut coil power instantly after energization; downstream fault flag and SCADA auxiliary relays lack sufficient dwell time to actuate, resulting in missing permanent fault logs and blank local indication flags.External discrete RC surge suppressors and timing resistors occupy extra rack slots and introduce vibration-prone wiring splices that open over years of plant thermal cycling.Medium-burden MVAJ27B coils draw heavy continuous DC load during multi-feeder simultaneous faults; station battery voltage collapses, lockout trip logic fails to energize for critical transformer/generator internal faults.Self-reset MVAA relays drop fault status immediately after fault clearance; locked-out breakers require a persistent mechanical latched flag to prevent unauthorized re-closure before technician inspection.Where you’ll typically find it:

• Fossil power plant generator, main transformer and boiler feeder long-distance remote trip lockout panels
• Refinery MV compressor and large process pump MCC fault latching coordination schemes with extended field wiring
• Urban distribution primary substation ring bus remote feeder trip control cabinets with lengthy cable runsThis single draw-out T-coil trip relay combines built-in 40–60ms drop-off delay for auxiliary flag coordination and factory-integrated transient suppression to eliminate nuisance operation from cable capacitance, without external surge or timing hardware for high-risk long-wire trip circuits.

Hardware Architecture & Under-the-Hood Logic

This unit uses dual armature electromagnetic design with copper slug delay element, mechanical spring latch and built-in coil RC absorption network, no onboard microprocessor or signal sampling ICs. It shares standardized Midos rack mechanical design with all ALSTOM Midos protection hardware for unified cabinet layout.

1. Protection fault contact closes to energize the T-series anti-surge main coil; integrated RC network clamps stray capacitance transients on long trip cables to prevent false armature pull-in. Magnetic flux pulls primary armature closed and engages internal mechanical latch to hold all contact stacks in fault state.
2. Secondary delay armature with copper slug energizes simultaneously; auxiliary holding contact maintains main coil current for fixed 40–60ms window to allow series flag and SCADA relays full time to complete operation.
3. After delay window elapses, delay armature resets, opening holding contact and cutting main coil current to zero; mechanical latch retains all trip/alarm contacts in latched fault state regardless of input signal loss.
4. Silver alloy contact tips paired with magnetic blowout plates extinguish DC inductive arcs from breaker trip coils, eliminating permanent contact welding during heavy fault switching cycles.
5. Front panel transparent window exposes red mechanical trip flag; flag remains latched until manual front pushbutton reset for instant on-site visual fault identification without DCS workstation access.
6. Rear Midos rack terminal base pre-fitted with factory CT short-circuit jumpers; full chassis withdrawal possible without disconnecting CT secondary wiring to eliminate lethal open CT kilovolt surge hazards during maintenance outages.

Field Service Pitfalls: What Rookies Get Wrong

Swapping MVAJ27L Standard Low-Burden Coil Variant For MVAJ27T Transient-Suppression Unit

New technicians install MVAJ27L spare stock without matching T suffix. Long remote trip wiring stray capacitance generates leakage pulses, relay falsely latches breakers during normal switching transients, causing unplanned feeder outages.Field Rule: MVAJ27T mandatory for all trip circuits with cable length >100m; segregate T and L/B coil MVAJ27 spares in clearly labeled locked storage bins.

Skipping CT Short Jumper Installation Before Withdrawing Draw-out Relay

Apprentices pull relay chassis straight out without shorting CT terminals on the rack base. Open CT secondary windings generate kilovolt surge that damages upstream MCGG overcurrent relay sampling boards and creates cabinet electric shock hazard for field technicians.Quick Fix: Always install factory CT short-circuit jumpers on the Midos base terminal strip before removing any draw-out MVAJ trip relay unit.

Forgetting Manual Front Flag Reset After Clearing Fault Trip

Maintenance crews only reset DCS logic and ignore the mechanical front trip flag. Latched flag blocks subsequent protection trip operation, creating hidden single-point failure risk for the next equipment fault event.Field Rule: Manually depress front reset flag after every fault trip and before returning relay online; visually confirm flag returns to normal unlatched position.

Removing Internal Copper Slug Delay Element To Speed Coil Cut-off

Techs extract the copper delay slug to eliminate the 40–60ms hold window. Series fault flag and SCADA auxiliary relays fail to actuate, operators receive no permanent fault indication after breaker trip.Field Rule: Never alter or remove the factory copper delay slug; built-in drop-off delay is mandatory for coordinated fault flagging logic.

Jumping External Surge Suppressors Across T Coil Terminals

Field crews add external RC snubbers in parallel with T coil terminals. Over-damping slows armature operate speed, critical fast fault trip coordination timing is broken, breakers suffer delayed clearing times.Field Rule: MVAJ27T contains factory integrated transient suppression; no external surge components shall be wired to coil terminals.
