Component Snapshot At-a-Glance

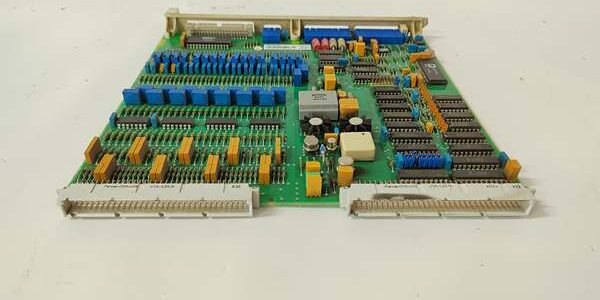

• Model: DSAI130D, factory P/N 3BSE006513R1
• Alt. P/N: DSAI130 (non-HART older revision, limited diagnostic capability); DSAI143 (16-channel non-isolated AI, cannot substitute)
• Product Series: ABB S800 I/O, AC 800M / 800xA DCS & SIL capable SIS auxiliary monitoring
• Hardware Type: Hot-swappable rack plug-in 8-channel analog input module, mates with S800 TU830/TU831 terminal baseplates
• Key Feature: Individual channel galvanic isolation, native HART 5/7 communication, loop-powered 4–20mA transmitter support, full per-loop diagnostics
• Primary Field Use: Acquire 4–20mA loop signals from pressure, temperature, flow HART transmitters for continuous regulatory control and plant monitoring.

Hard-Numbers: Technical Specifications

• Protocol Support: S800 ModuleBus, HART 5 / HART 7 superimposed on analog current loops
• Port Count: 8 fully isolated analog input channels; S800 backplane gold finger edge connector; screw terminal landing via TU830 series base
• Baud/Data Rate: Fixed S800 I/O scan cycle; HART polling runs asynchronous without disrupting analog PV sampling
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 1500Vrms channel-to-backplane independent galvanic isolation per channel
• Power Draw: 24VDC rack supply, typical module power consumption 4.6W
• Input Signal Range: 4–20mA standard loop current; 0–20mA compatible for non-standard transmitters
• Loop Supply Capacity: 24VDC loop power, max 500Ω allowable load resistance per channel
• ADC Resolution: 16-bit delta-sigma analog-to-digital conversion
• Accuracy: ±0.08%FS @25°C; ±0.12%FS full operating temperature range
• Diagnostics: Open wire detection, short circuit flag, low loop current alarm, HART communication loss
• Certifications: CE Class B EMC, UL/cUL, ATEX Ex ec IIC T4 Zone 2 cabinet compliant
• Physical Weight: 0.42kg single module assembly

The Real-World Problem It Solves

Non-isolated 16-channel DSAI143 AI cards share a common ground plane; single channel ground loop noise from VFD loads creates erratic PV swings and false high/low process interlock trips.Older DSAI130 non-D revisions lack built-in HART modulation; technicians must carry handheld communicators to pull transmitter calibration and fault data, adding unplanned field trips during outages.Hardware without open wire diagnostics hides broken field wiring for months; undetected dead transmitters fail to trigger safety actions during critical process upsets.External signal isolators add extra rack space and intermediate wiring splices; cabinet vibration creates intermittent noisy measurements that destabilize tight PID control loops.Where you’ll typically find it:

• Refinery distillation column critical pressure & temperature monitoring S800 I/O racks
• Fossil power plant boiler feedwater, furnace pressure, steam flow transmitter DCS panels
• Chemical batch reactor cabinets with dense HART temperature and level transmitter clustersThis isolated 8-channel HART AI card eliminates external signal isolators, reads transmitter diagnostic data natively, and flags broken loop wiring to the 800xA event log before process deviations escalate.

Hardware Architecture & Under-the-Hood Logic

This module uses separate isolated signal conditioning circuits for every input channel, paired with independent HART demodulators that do not interfere with primary 4–20mA analog measurement.

1. Field 4–20mA transmitter signals enter matched TU830 terminal base, pass TVS surge suppression before individual isolation transformers to break ground loop paths.
2. Precision shunt resistors convert loop current to scaled voltage for the 16-bit delta-sigma ADC sampling circuit on each channel.
3. Dedicated HART demodulator chips extract digital transmitter diagnostic data without shifting the base analog PV value sent to the AC800M controller.
4. Continuous leakage current monitoring logic flags open wire (current <3.8mA) and short circuit overcurrent conditions per individual channel.
5. Isolated ModuleBus transceiver transmits validated analog PV values, HART device status and channel fault codes to the CI840 communication interface every scan cycle.
6. Front panel dual-color LED array displays module RUN status, aggregate channel fault, and HART bus activity for fast cabinet troubleshooting without workstation access.

Field Service Pitfalls: What Rookies Get Wrong

Installing DSAI130 Non-HART Legacy Card In Place Of DSAI130D

New techs swap older DSAI130 spare modules to cut spare stock cost. No onboard HART demodulation; 800xA cannot pull transmitter calibration data, requiring handheld communicator site visits for every transmitter fault.Field Rule: Deploy DSAI130D for all new HART transmitter loops; segregate DSAI130 and DSAI130D spares in labeled storage bins to avoid cross-installs.

Exceeding 500Ω Maximum Loop Load Resistance Per Channel

Apprentices run extremely long field cable or daisy-chain multiple HART devices to one input channel, pushing total loop resistance above 500Ω. Transmitter cannot sustain full 20mA output, PV readings drift and constant low-current open wire alarms fill the event log.Quick Fix: Limit each DSAI130D channel to a single HART transmitter; calculate total wire resistance during cabinet build to stay under 500Ω total loop load.

Routing Unshielded Instrument Cable Parallel To VFD Power Cables

Crews pull unshielded twisted pair for transmitter wiring routed alongside variable frequency motor power cables. EMI noise distorts analog current signals and corrupts HART digital telegrams, triggering sporadic PV fluctuation and HART comm loss alarms.Field Rule: Use foil-shielded instrument cable for all 4–20mA HART loops; terminate shield drain wire only at the TU830 cabinet side, tape and isolate field transmitter head shield from earth ground.
