Component Snapshot At-a-Glance

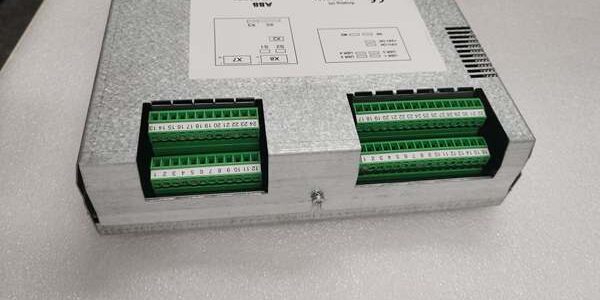

• Model: DSQC355A
• Alt. P/N: DSQC355 (older non-A revision, pinout partial mismatch; DSQC355B upgraded version with improved EMI filtering)
• Product Series: ABB IRC5 Robot Controller, Serial Measurement Bus (SMB) architecture
• Hardware Type: Rack-mount SMB serial measurement board, hot-swap compatible inside IRC5 main cabinet
• Key Feature: Reads absolute serial encoder data from robot servo axes, onboard backup battery holder for position retention during power loss
• Primary Field Use: Collects absolute encoder position signals from robot manipulator axes, stores axis zero offset data to maintain robot calibration after full power down.

Hard-Numbers: Technical Specifications

• Protocol Support: ABB proprietary SMB serial encoder bus, internal IRC5 backplane communication
• Port Count: 6 dedicated SMB axis output ports; backplane gold finger connector; 2-pin battery holder for 3.6V lithium backup cell
• Baud/Data Rate: SMB bus fixed serial speed for absolute encoder synchronous sampling
• Operating Temperature: 0°C to +50°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 500Vrms galvanic isolation between SMB field encoder lines and controller backplane
• Power Draw: 24VDC cabinet supply, typical board consumption 3.4W
• Axis Capacity: Supports up to 6 robot axes (standard 6-axis manipulator)
• Backup Battery: 3.6V lithium primary cell, retains position data for minimum 1000 hours with cabinet power off
• Diagnostics: Encoder communication loss, low battery voltage, SMB short circuit, backplane link fault
• EMC Compliance: CE Class B, certified for automotive welding high-noise factory environments
• Physical Weight: 0.36kg single board assembly

The Real-World Problem It Solves

Without SMB board, cannot read absolute encoder values. Every full power cycle forces full robot jog homing sequence, halting production lines for 5–15 minutes per restart.Older DSQC355 non-A boards lack reinforced SMB port surge protection; welding cell arc noise induces encoder communication faults, triggering robot stop codes and scrapped workpieces.External battery packs for position retention add loose wiring inside compact cabinets; vibration dislodges battery leads and erases axis calibration offsets mid-shift.Separate external signal conditioners for SMB encoders waste cabinet space and introduce extra wiring fault points between controller and robot arm.Where you’ll typically find it:

• Automotive welding robot cabinets handling spot / arc welding manipulators
• Packaging plant palletizing 6-axis ABB robot control racks
• Metal fabrication machine tending robot cells with heavy servo axis cyclingThis dedicated SMB measurement board integrates absolute encoder signal processing and onboard battery backup, eliminates mandatory full homing after power loss and blocks welding arc EMI from corrupting axis position data.

Hardware Architecture & Under-the-Hood Logic

This board holds dedicated SMB communication ASICs for each axis channel, isolated from the main CPU backplane to prevent encoder noise bleeding into control logic.

1. 24VDC cabinet power feeds isolated onboard regulators for SMB transceivers and battery monitoring circuit.
2. Six independent SMB differential transceivers communicate bidirectionally with each servo motor’s absolute serial encoder, sampling axis position every control cycle.
3. Onboard battery monitoring circuit tracks 3.6V backup cell voltage; sends low battery warning to FlexPendant HMI when charge drops below threshold.
4. Non-volatile memory on the board stores robot axis zero offsets, retained by backup battery when main cabinet power is cut.
5. Per-channel TVS surge suppressors clamp arc welding voltage transients on SMB cables to avoid encoder communication dropouts.
6. Front panel LED indicators display board RUN state, low battery alarm, and individual SMB axis communication fault for fast cabinet troubleshooting.

Field Service Pitfalls: What Rookies Get Wrong

Installing DSQC355 Non-A Older Board In Place Of

New techs swap unmodified DSQC355 spare boards to cut inventory cost. Missing enhanced surge protection leads to constant SMB comm loss alarms in welding cells; robot randomly stops mid-cycle.Field Rule: is required for all high EMI welding environments; DSQC355 only permitted for low-noise packaging robot cells with factory sign-off.

Failing To Replace Backup Battery During Swap

Apprentices reuse aged depleted lithium backup cells when replacing the SMB board. Battery cannot hold position data overnight; every morning startup triggers full robot homing downtime.Quick Fix: Install new 3.6V lithium battery every time is replaced; log battery replacement date in robot maintenance logbook.

Running Unshielded SMB Cable Parallel To Welding Power Cables

Crews pull unshielded SMB wiring routed alongside welding transformer high-current cables. Arc EMI corrupts serial encoder frames, robot reports axis position mismatch fault and triggers safety stop.Field Rule: Use factory shielded ABB SMB cables only; route SMB wiring separate from welding power runs, single-point shield ground at cabinet side.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
