Component Snapshot At-a-Glance

• Model: SK827005
• Alt. P/N: SK827100-AS (24VDC DC coil variant, pinout incompatible); SK827004 (400VAC coil, voltage mismatch)
• Product Series: ABB EH550 high-power AC contactor, generator excitation & MCC power switching equipment

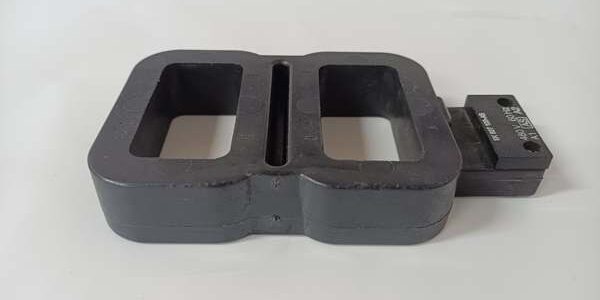

• Hardware Type: Molded insulated AC operating magnet coil, plug-in direct replacement for EH550 contactor core
• Key Feature: Factory integrated surge suppression circuit, 480V 60Hz rated dual-window coil form, overvoltage/magnetic field protection
• Primary Field Use: Electromagnetic drive coil to actuate ABB EH550 main power contactors for generator excitation, large motor MCC feeders, and process plant high-current load switching.

Hard-Numbers: Technical Specifications

• Protocol Support: Pure electromagnetic power component, no communication bus
• Port Count: A1/A2 two screw terminal control connection; dual rectangular coil windows to fit EH550 iron core
• Control Voltage Rating: 480V AC, 60Hz nominal operating coil voltage
• Operating Temperature: -10°C to +60°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 2500Vrms dielectric insulation between coil winding and metal housing
• Power Draw: Rated holding power 95VA; inrush pull-in power 420VA
• Matching Contactor Frame: Exclusive fit for ABB EH550 3-pole contactor (max 800A AC-1, 550A AC-3 @400V)
• Surge Protection: Built-in varistor suppressor blocks back EMF spikes during contactor de-energization
• Mechanical Spec: Molded thermoset plastic housing, dustproof IP20 coil assembly
• Vibration Compliance: IEC 60068-2-6 compliant for MCC cabinet blower vibration
• Physical Weight: 0.72kg single coil assembly
• Certifications: CE, UL recognized for industrial motor control centers

The Real-World Problem It Solves

Generic unprotected aftermarket coils lack integrated surge suppression; contactor de-energization back EMF spikes burn PLC discrete output channels, causing random motor feeder trip faults and unplanned process shutdowns.Mismatched voltage coils (400V/230V) run hot on 480V excitation control circuits, insulation degrades rapidly within 6–12 months and leads to coil short circuits that blow upstream control fuses.Discrete external RC snubber circuits add extra terminal wiring in crowded MCC cubicles; cabinet vibration loosens snubber splices and creates intermittent contactor chatter during generator load transients.Separate generator overvoltage protection hardware adds extra rack space; SK827005 internal circuitry delivers built-in field overvoltage lockout without auxiliary components.Where you’ll typically find it:

• Power plant generator excitation control panels driving EH550 main field contactors
• Refinery large motor MCC feeder cubicles for 300kW+ pump/compressor loads
• Offshore FPSO main power distribution cabinets high-current AC switching contactorsThis factory matched 480V coil eliminates external surge snubber wiring, fits directly into contactor frames, and prevents EMF damage to upstream DCS/PLC discrete output modules.

Hardware Architecture & Under-the-Hood Logic

This is a wound copper magnet coil assembly with embedded transient suppression components; it relies on magnetic attraction against the contactor iron armature to close main power poles.

1. 480V 60Hz control voltage applied to A1/A2 terminals energizes tightly wound insulated copper magnet wire inside dual molded coil windows.
2. Magnetic flux generated across the coil windows pulls the contactor’s moving iron armature closed, mechanically engaging the main high-current power contacts.
3. Integrated metal oxide varistor (MOV) wired parallel across coil terminals absorbs inductive back EMF spike when control voltage cuts off.
4. Thick thermoset molded housing encapsulates windings to block dust, humidity, and cabinet chemical vapors that degrade bare copper insulation.
5. Dual rectangular window form factor locks perfectly onto the core laminations; no loose coil movement under continuous MCC vibration.
6. No onboard LED indicators; contactor coil energization status is read via auxiliary contact hardwired back to DCS DI channels.

Field Service Pitfalls: What Rookies Get Wrong

Installing SK827100-AS 24VDC Coil Into 480VAC Control Circuits

New techs swap DC coil spares to cut inventory costs. Applying 480V AC instantly melts coil insulation, short circuit blows control fuses and locks the contactor in welded closed state.Field Rule: Verify control circuit voltage is 480V 60Hz before installing SK827005; store AC and DC contactor coils in separate labeled spare bins.

Removing Internal MOV Surge Suppression For Troubleshooting

Apprentices clip the built-in varistor to eliminate minor control signal noise. Unsuppressed back EMF voltage spikes damage upstream PLC DO cards, triggering random motor feeder trip alarms during contactor dropout.Quick Fix: Never remove the factory MOV suppression circuit; add external RC snubber to control wiring if residual EMI noise impacts nearby analog transmitters.

Over-Torquing A1/A2 Control Terminal Screws

Crews over-tighten terminal lugs past factory torque spec, cracking molded coil housing and damaging internal winding insulation. Cracked insulation leads to gradual coil leakage current and thermal burnout during high generator load cycles.Field Rule: Torque A1/A2 control terminals to 0.6 N·m; inspect coil housing for cracks every MCC annual outage maintenance cycle.
