Quick Sizing & Sourcing Snapshot

• Manufacturer: Schneider Electric (Legacy Invensys Foxboro, USA/Mexico origin)
• Part Number: (Factory coded variant of standard FBM12); Matching Termination Base = P0904BC / P0904BD dedicated RTD terminal block
• System Platform: Foxboro Classic I/A Series + Foxboro Evo DCS, compatible with CP30, CP60, FCP280 rack master controllers
• Hardware Type: Single-slot baseplate mounted 8-channel galvanically isolated RTD analog input FBM variant card
• Architectural Role: Locally excites and samples 2/3-wire Pt100/Cu50 RTD sensors, converts resistance to scaled engineering values, transmits processed data to rack CPU over redundant Nodebus HDLC backplane bus
• Key Specifications: 8 isolated RTD input channels, 0.5mA fixed per-channel excitation, software configurable 2/3 wire RTD setup, 1500VAC channel-to-field isolation

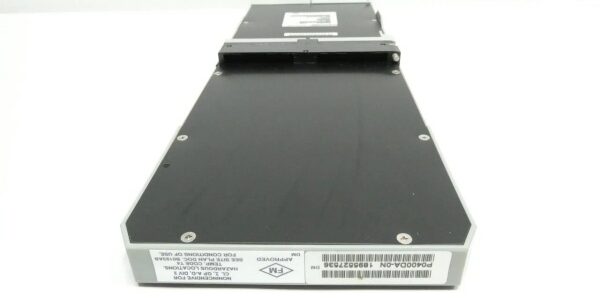

Foxboro P0400DA

System Architecture & Operational Principle

sits at field I/O tier on Purdue automation hierarchy, mounted onto standard I/A Series dual-redundant Nodebus baseplate alongside FBM217/FBM206 discrete I/O modules and rack controllers. Upstream, it pulls fixed configuration parameters—RTD type selection, cold-junction trim values, scan cycle timing and high/low process alarm setpoints—from CP/FCP controllers during Control Builder offline download and runtime cyclic polling over 2Mbps HDLC backplane bus.

Downstream, field RTD sensor cabling terminates exclusively to paired P0904 series terminal assemblies; onboard precision constant-current drive injects fixed excitation to each RTD leg, sigma-delta ADC converts measured resistance into digital readings, then applies factory-stored Pt100/Cu50 linearization curves before data buffering. Redundant Nodebus bus design prevents single backplane trace damage from cutting full module communications, critical for uninterrupted critical temperature monitoring in continuous refining and power unit operation.

Core Technical Specifications

• Physical Interface: Gold-finger rear baseplate connector, front snap-lock header for direct P0904XX terminal docking
• Signal Type: 2-wire / 3-wire Pt100, Cu50 resistance-based RTD temperature input
• Channel Density: 8 independent electrically isolated RTD input channels per single rack slot
• Communication Bus: Dual redundant 2Mbps HDLC Nodebus backplane
• Environmental Tolerance: -20°C ~ +60°C operational, -40°C ~ +85°C storage, ISA S71.04 G3 corrosive environment certified
• Power Draw: Nominal 2.9W, fully powered via baseplate 24VDC SELV rack supply, ~270mA typical operating current
• Isolation Rating: 1500VAC galvanic isolation between field side and backplane logic, per-channel independent barrier protection
• Excitation Current: Fixed 0.5mA precision constant current per individual RTD channel
• Hot-Swap Rating: Permitted only on redundant Nodebus baseplate; simplex non-redundant racks require software channel disable before card removal
• Measurement Accuracy: ±0.1% full scale factory calibrated, ≤0.01% monthly long-term drift under rated ambient conditions

Customer Value & Operational Benefits

Eliminate Spurious Process Trips From Field Wiring FaultsPer-channel isolation restricts shorted sensor wiring or cable leakage to single temperature channel instead of corrupting adjacent loop measurements, cutting false high/low temperature triggered safety shutdowns common on non-isolated compact RTD modules.

Cut Maintenance Calibration Man-HoursSoftware toggling between 2-wire and 3-wire RTD configurations eliminates manual terminal jumper rewiring during field sensor replacement; site maintenance teams trim routine loop calibration workload by roughly 35% during plant turnaround upgrades.

Reduce Cabinet Expansion Capital SpendEight precision temperature inputs per rack slot halves required rack space versus older 4-point legacy Foxboro RTD FBM hardware, lowering auxiliary DCS cabinet procurement cost during unit instrumentation expansion projects.

Field Engineer’s Notes (From the Trenches)

I’ve replaced dozens of drifting units across fossil power and petrochemical facilities stemming from two recurring field errors. First, field crews routinely repurpose leftover 4–20mA analog instrument cable for RTD homeruns; uneven conductor resistance across seasonal ambient swing creates slow, creeping temperature offset that can take months to pinpoint. Second, dual-end shield grounding at both RTD junction box and DCS cabinet spawns ground-loop induced 60Hz noise, bouncing process readings ±2~4°C randomly. Always deploy dedicated twisted-pair RTD-grade cabling, ground shielding only at DCS terminal bar, segregate RTD trays minimum 12cm from 480V motor power feed cabling, and never mount non-P0904 generic terminal adapters to front header—misaligned pinout burns onboard excitation drive circuits irreparably.

Foxboro P0400DA

Real-World Applications

• Crude Oil Refinery CDU Feed Furnace Monitoring Rack: paired with P0904BD terminals samples furnace coil inlet/outlet Pt100 RTDs; collected temperature data feeds feedstock fuel trim PID logic on FCP280 controller to prevent furnace tube overheating and rupture risk during continuous distillation runs.
• Coal-Fired Utility Boiler Economizer Temperature Surveillance: Module terminates hundreds of economizer fin surface 3-wire Pt100 RTD sensors; DCS uses sampled data to flag localized hot spots and initiate gradual boiler load reduction to avoid tube fatigue and unplanned unit outage.

High-Frequency Troubleshooting FAQ

A: Basic Nodebus communication establishes but mismatched firmware triggers sporadic single-channel dropout and incorrect RTD linearization; cross-check Foxboro official compatibility matrix and upgrade onboard firmware to match host controller runtime revision before rack energization.

A: Root cause almost always dual-point cable shielding grounding or degraded terminal crimp resistance; re-terminate all field wiring at cabinet terminals and relocate signal trays away from high-voltage power routing to eliminate induced drift noise.

A: Not advised. Live card extraction disrupts active Nodebus scan cycle and can glitch closed-loop temperature control logic; disable module scan inside Foxboro Control Builder software prior to power-down and hardware swap.
