Component Snapshot At-a-Glance
- Model: FBM206
- Alt. P/N: P0916CQ (matching factory terminal TA part number)
- Product Series: Foxboro I/A Series 200 Baseplate, fully backward compatible with Foxboro Evo rack setup
- Hardware Type: Rack-mounted 8-channel galvanically isolated pulse input FBM field module
- Key Feature: Per-channel independent opto-isolation blocking single field short from crashing adjacent measurement points
- Primary Field Use: Captures pulse signals from turbine/vortex flowmeters, converts raw pulse counts to volumetric flow data then transmits to rack CP30 via Nodebus

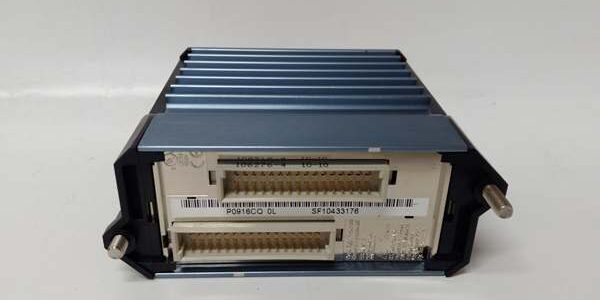

Foxboro FBM206
Hard-Numbers: Technical Specifications
- Protocol Support: Redundant 2Mbps proprietary HDLC Nodebus for backplane CPU communication
- Port Count: 8 independent field pulse input channels, single goldfinger backplane connector
- Baud/Data Rate: Max channel pulse frequency 25kHz; fixed Nodebus bus speed 2Mbps
- Operating Temperature: -20℃ ~ +60℃ continuous cabinet running; -40℃~+85℃ storage rating
- Isolation Rating: 1500V galvanic opto-isolation per channel, channel-to-channel and field-to-backplane isolated
- Power Draw: 3.5W nominal operating power, fed entirely from baseplate 24VDC SELV supply
- Field Input Rating: 7VDC~27VDC 2-wire pulse input, 10Hz minimum measurable frequency
- Resolution: 12-bit internal pulse counting resolution, ±0.025% full span linearity error
- Hot-Swap Rating: Full live hot-swap approved on populated active baseplate without rack shutdown
- Environmental Grade: ISA S71.04 Class G3 harsh industrial corrosive environment rated
The Real-World Problem It Solves
Unisolated multi-channel pulse cards let field instrument ground leakage or wiring surge corrupt all flow readings in a single bank, triggering erroneous batch totalization and unplanned feed control cuts. Older non-split pulse boards force full rack I/O outage if one flowmeter wiring shorts out in field trenches.Where you’ll typically find it:
- Refinery crude distillation cabinet tracking feedstock turbine flow for mass balance accounting
- Coal-fired power plant boiler rack measuring feedwater vortex meter pulse for boiler load regulation
- Offshore oil production metering skid collecting separator export flow pulse data for custody transfer calculation
Per-channel isolation confines field faults to one channel only, preserving remaining seven flow measurements uninterrupted during instrument wiring failure.
Hardware Architecture & Under-the-Hood Logic
This aluminum-cased module locks into standard I/A baseplate, splits PCB into isolated field input section and backplane communication section to contain field-side electrical damage away from Nodebus transceiver silicon. It acts as standalone pulse counter between field flow instruments and rack CP30 control logic.
- 24VDC baseplate power feeds isolated internal regulators separating field sensing circuit and bus communication power rails.
- Incoming 7~27VDC field pulse crosses channel optocoupler to strip noisy field voltage and convert to clean logic pulses.
- Onboard dedicated counter IC accumulates incoming pulse totals per configured meter K-factor and scaling setup stored in onboard Flash.
- Compiled flow rate and totalized volume values get buffered in local RAM ahead of cyclic Nodebus polling.
- Module responds to periodic read commands from CP30 processor over redundant 2Mbps Nodebus to upload updated flow data.
- Front panel individual LED lights toggle to confirm live pulse activity per channel for quick cabinet-side troubleshooting.
Foxboro FBM206
Field Service Pitfalls: What Rookies Get Wrong
Overrunning Max 25kHz Channel Frequency With High-Speed Turbine Sensors
Techs wire high-RPM turbine transmitters outputting >30kHz pulses directly into channels without divider scaling; internal counter overflows, flow total drifts negative with no fault alarm triggered.
- Field Rule: Verify instrument max pulse output pre-wire; install external pulse divider for signals exceeding 24kHz to stay under module rated limit.
Mixed AC/DC Cable Routing In Same Conduit For Pulse Wiring
Technicians run 120VAC motor control cable alongside 24VDC pulse field wiring in shared tray; radiated EMI creates false stray pulses leading to inflated flow totalization in DCS historian.
- Quick Fix: Separate low-level pulse cabling minimum 12cm from AC power runs; route all field leads in dedicated shielded cable tray with single-point ground at cabinet terminal block.
Improper Grounding Of Instrument Shield Drained Into FBM Terminal Block
Field crew bonds both ends of flowmeter cable shield to cabinet ground; ground loop induces AC noise pulses into input channels causing random fluctuating flow readings.
- Field Rule: Terminate cable shield only at TA terminal side, leave field instrument end shield floating ungrounded to eliminate loop currents.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
