Component Snapshot At-a-Glance
- Model: P0926GJ (Base part for FBM230 serial communication module)
- Alt. P/N: P0926GU / P0926GG (FBM230 alternate factory suffix variants)
- Product Series: Foxboro I/A Series Invensys DCS Platform
- Hardware Type: Backplane plug-in intelligent serial gateway / multi-channel isolated comm FBM card
- Key Feature: Four fully galvanically isolated independent serial ports per single module card
- Primary Field Use: Bridges Nodebus DCS backplane to field-mounted VFDs, analyzers, local PLCs via RS232/422/485 multidrop wiring

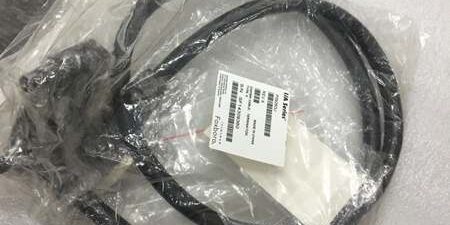

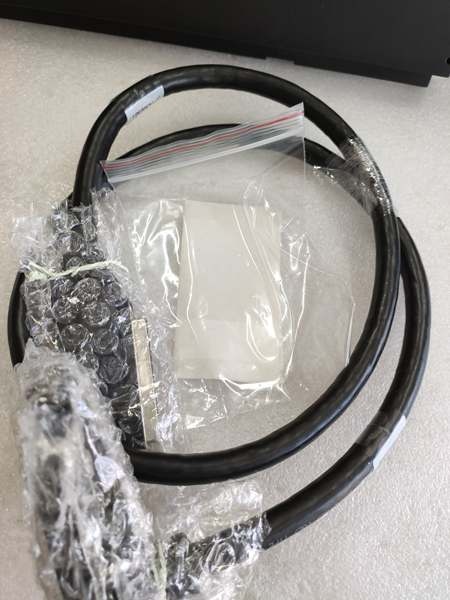

Foxboro P0926GJ
Hard-Numbers: Technical Specifications
- Protocol Support: Nodebus 2Mbps backplane, Modbus RTU, RS232, RS422, RS485 multidrop master/slave
- Port Count: 4x software configurable isolated serial terminal ports on front header
- Baud/Data Rate: 300bps ~ 115200bps per individual channel, software selectable per port
- Operating Temperature: -20°C ~ +70°C continuous cabinet ambient; rated G3 corrosive environment compliant
- Isolation Rating: 2500VDC channel-to-backplane & channel-to-channel galvanic isolation
- Power Draw: 3.2W nominal @ regulated 24VDC SELV rack backplane feed
- Hot-Swap Rating: Full live hot plug/unplug valid only on redundant I/A baseplate rack setup
- Module Dimensions: 125mm ×75mm ×80mm; unit weight 0.20kg
The Real-World Problem It Solves
Early-generation single-port serial FBM hardware forced stacking multiple cards to connect scattered field transmitters and drives, wasting valuable rack slot space and adding extra backplane bus load. Unisolated legacy serial modules let VFD spike noise bleed back onto Nodebus, triggering sporadic entire rack FBM offline and random CP fault alarms mid-run.Where you’ll typically find it:
- Refinery pump house DCS racks linking variable frequency drive speed feedback to main CP60 control logic
- Coal plant boiler BMS cabinet connecting gas analyzers and flame scanners via Modbus RTU multidrop
- Natural gas processing unit enclosures bridging local skid-mounted standalone PLC to central I/A DCS
Four isolated ports on one card cuts rack slot consumption and eliminates cross-channel EMI leakage originating from field powered devices.
Hardware Architecture & Under-the-Hood Logic
This card uses a dedicated onboard microcontroller separate from Nodebus transceiver hardware; each serial channel gets independent isolated power supply to block field ground loop surge feeding back to DCS backplane rail.
- Rear edge goldfinger contacts pull regulated 24VDC rack power and Nodebus command frames from host CP60 backplane bus.
- Onboard MCU parses incoming Nodebus instructions and routes setpoint/query data to assigned individual serial channel circuits.
- Isolation barrier blocks ground differential voltage before serial driver IC converts logic to RS232/485 line level for field cabling.
- Inbound field device Modbus data passes reverse isolation filtering then buffers before packaging into Nodebus payload for host CPU.
- Front panel LED bank per port shows TX/RX activity and channel fault for quick field diagnostic spot-checking.

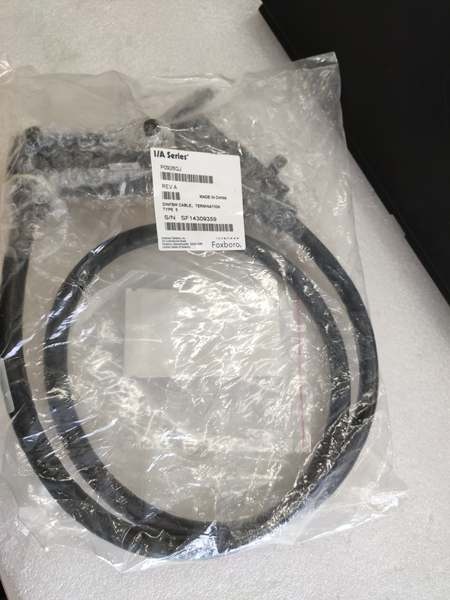

Foxboro P0926GJ
Field Service Pitfalls: What Rookies Get Wrong
Mismatch Serial Wiring Polarity on RS485 A/B Terminals
New tech swaps A/B pair wiring on multidrop RS485 runs; full field device chain drops offline with no visible front panel LED fault on card.
- Quick Fix: Pin out field cable continuity with multimeter before termination, label A/B at both module and device ends.
Daisy-Chain Exceed 32 Field Nodes Per Single Serial Port
Field crew stacks over 35 Modbus slave devices on one RS485 channel; bus loading overloads onboard transceiver leading to intermittent polling dropout.
- Field Rule: Split device count above 30 nodes across spare unused channel ports.
Run Unshielded Serial Cable Parallel With 480V VFD Power Trunk
Improper tray routing routes bare twisted pair alongside high-current inverter wiring; radiated EMI causes corrupted Modbus checksum and random port lockup.
- Field Rule: Deploy foil-shielded RS485 cable with single-point chassis ground at DCS cabinet only, separate power/data trays minimum 10cm clearance.
