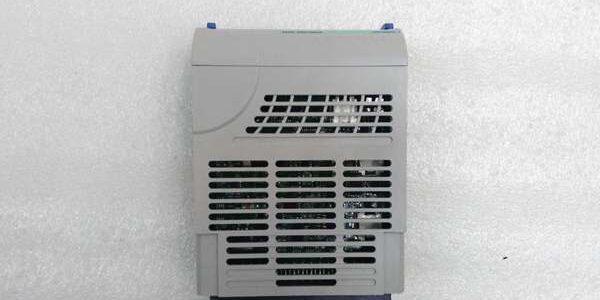

Customer Value & Operational Benefits

Precision Process Control & Stability
In critical loops like steam temperature or chemical feed rate, a valve that doesn’t move to the exact commanded position can cause process instability or product quality issues. The 1C31194G03’s high-precision output ensures that the final control element responds exactly as the control algorithm intends, minimizing process variability and improving overall plant efficiency.

Enhanced Reliability in Harsh Environments
Designed for the most demanding industrial applications, this module operates reliably in extreme temperatures ranging from -40°C to 85°C. This makes it ideal for outdoor installations in arctic climates or indoor cabinets in hot steel mills and power plants, reducing the risk of temperature-related failures and unplanned downtime.

Simplified Maintenance & Diagnostics
The module’s onboard diagnostics and clear LED indicators allow maintenance technicians to quickly identify a faulty channel or a field wiring issue (like a broken wire to the valve positioner). This rapid fault isolation significantly reduces Mean Time To Repair (MTTR), keeping the plant running smoothly.

Field Engineer’s Notes (From the Trenches)

Check Your Loop Power and Grounding.
The most common issue with output cards like the 1C31194G03 isn’t the card itself, but the field loop. If a valve isn’t moving correctly, first verify that the 24VDC loop power supply is stable and has enough capacity for all the devices on the loop. A sagging power supply will cause erratic valve movement.

Also, ensure your analog output shield is grounded at the cabinet end ONLY. Grounding the shield at both the cabinet and the field device creates a ground loop, which induces 60Hz noise onto your 4-20mA signal. This noise can cause the control valve to “hunt” or jitter around the setpoint, wearing out the valve actuator prematurely.

Real-World Applications

• Power Plant Boiler Feedwater Control:
  In a fossil fuel power plant, the 1C31194G03 is used to drive the massive feedwater control valves that regulate water flow into the boiler steam drum. The Ovation controller calculates the precise valve position needed to maintain drum level, and this module ensures that command is executed with extreme accuracy, preventing dangerous low-level or high-level trips.
• Petrochemical Reactor Temperature Control:
  In a chemical reactor, temperature is controlled by modulating a cooling water or steam valve. The 1C31194G03 receives the PID output from the controller and drives the valve positioner. Its stability and precision are critical for maintaining the exact reaction temperature, ensuring product quality and preventing runaway reactions.

High-Frequency Troubleshooting FAQ

Q: The Ovation controller is commanding a valve to 50%, but the valve is physically at 45%. How do I troubleshoot?
A: First, measure the mA output directly at the 1C31194G03 terminal block. If the card is outputting 12mA (which corresponds to 50% of a 4-20mA range), the card is working correctly, and the issue is in the field (e.g., a sticky valve, a mis-calibrated positioner, or insufficient air supply). If the card is outputting 11.6mA (45%), the issue is in the Ovation configuration or the card itself.

Q: Can I use the 1C31194G03 to drive a variable frequency drive (VFD) speed reference?
A: Yes, absolutely. As long as the VFD accepts a standard 4-20mA analog speed reference, the 1C31194G03 is perfectly suited for this application. Just ensure you configure the Ovation output scaling to match the VFD’s minimum and maximum speed requirements.

Q: The module’s “Fault” LED is lit. What does this mean?
A: A solid Fault LED typically indicates a field wiring issue, most commonly an “open loop” condition (a broken wire between the card and the valve positioner). The card detects that the current loop is incomplete and triggers the fault. Check your marshalling panel fuses and field wiring for breaks or loose connections.

Commercial Availability & Pricing

Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
