Product Core Brief

• Model: RPS6U (part number varies by revision, e.g., 200-582-xxx-xxx)
• Brand: VIBRO-METER
• Series: VM600 RPS6U
• Core Function: 6U rack power supply that delivers +5 VDC and ±12 VDC to all modules in a VM600 ABE04x system rack.
• Product Type: VM600 rack power supply module
• Key Specs: 6U height | +5 VDC & ±12 VDC output | AC or DC input versions | supports single or redundant configuration | overvoltage/short-circuit/overload protection
• Condition: New original / new surplus — verify exact PNR on nameplate

Product Introduction

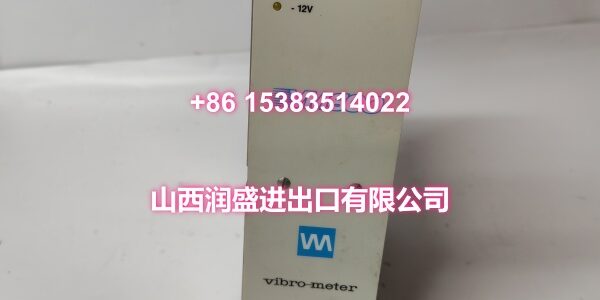

The VIBRO-METER VM600 RPS6U is the dedicated rack power supply for the VM600 machinery protection and condition monitoring platform. It mounts in the front of a VM600 ABE04x 19-inch, 6U system rack and connects directly to the VME backplane to power all installed MPC4, IOC4T, CPUM, CMC16, XMV16, XIO16T, IOCN, and related modules.

One RPS6U can power a fully loaded rack; a second unit may be installed for redundant power with automatic switchover. Versions are available for AC input or DC input, and some variants support a wide input range including 24 VDC or 100–240 VAC depending on the specific part number.

Note: The exact part number must be confirmed from the nameplate. Common RPS6U variants include 200-582-500-013, 200-582-200-011, 200-582-600-013, and 200-582-500-021, which may differ in input voltage range, hardware revision, or power rating.

Key Technical Specifications

• Product family: VM600 RPS6U
• Module type: 6U rack power supply
• Typical PNR series: 200-582-xxx-xxx (confirm on label)
• Rack compatibility: VM600 ABE040, ABE042, ABE056 (19″, 6U)
• Mounting position: Front slot of VM600 ABE04x rack

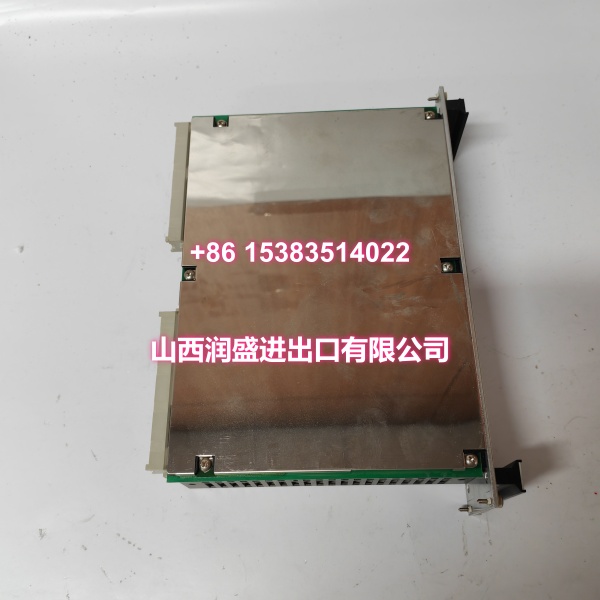

• Backplane interface: VME bus via dual high-current connectors
• Output voltages: +5 VDC and ±12 VDC for rack and all installed cards
• Input options: AC input version or DC input version; some variants accept 24 VDC or 100–240 VAC
• Redundancy: Single or dual RPS6U with automatic switover
• Protection: Overvoltage, short-circuit, and overload protection; continuous short-circuit proof

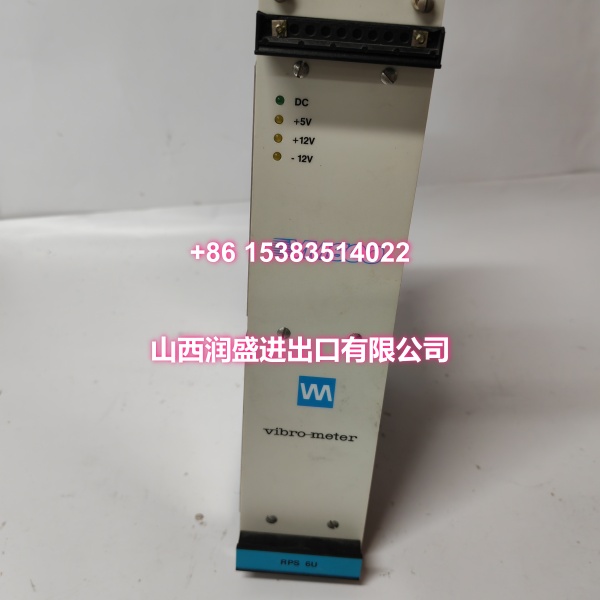

• Indicators: Status LEDs for power and fault indication
• Operating temperature: Typically 0°C to +70°C or -20°C to +70°C depending on variant
• Storage temperature: Typically -40°C to +85°C
• Humidity: 5% to 90% or up to 95% non-condensing
• Hot-swappable: Yes (follow OEM procedure for redundant configuration)

Quality Control Process (Dynamic for Power Supply)

• Nameplate verification: Confirm exact PNR (e.g., 200-582-500-013), hardware revision, and input voltage type.
• Visual inspection: Check front panel, connectors, mounting ears, and status LED window for damage.
• Backplane pin check: Inspect VME bus connectors for bent pins, corrosion, or loose contacts.
• Input voltage verification: Confirm AC or DC input matches the installed power source and nameplate rating.
• Output validation: With a compatible VM600 rack, verify +5 VDC and ±12 VDC outputs under no-load and loaded conditions.
• Redundancy test (if dual unit): Simulate primary supply loss and confirm automatic switchover without rack reset.
• Packing: Use anti-static bag, connector protection, foam support, and rigid carton for shipment.

Replacement Pitfall Guide

❗ Do not assume all RPS6U part numbers are interchangeable. Variants such as 200-582-500-013, 200-582-200-011, and 200-582-600-013 may differ in input voltage range, power rating, or hardware revision.

❗ Do not mix AC-input and DC-input RPS6U units in a redundant pair. Redundant units must match in type and rating.

❗ Verify backplane compatibility. RPS6U is designed for VM600 ABE04x 6U racks; it is not directly compatible with 1U frames or non-VM600 racks.

❗ Confirm total rack load before deployment. Overloading the power supply with too many active cards can cause voltage drop or unstable operation.

❗ Record input wiring and grounding before removal. Incorrect DC polarity or AC wiring can damage the module or downstream cards.

❗ Do not hot-swap both RPS6U units simultaneously in a redundant configuration. Always replace one unit at a time to maintain rack power.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Benchmarks: 6U rack power supply for VM600 MPS/CMS; +5 VDC & ±12 VDC output; AC or DC input versions; VME backplane connection; overvoltage/short-circuit/overload protection; supports single or redundant configuration; compatible with VM600 ABE040/ABE042/ABE056 racks; hot-swappable.
