Product Core Brief
- Model: CMC16
- Brand: VIBRO-METER
- Series: VM600 / VM600 Mk2 Machine Monitoring System
- Core Function: 16-channel condition monitoring card that acquires, processes, and analyzes vibration and speed signals for VM600 rack-based machinery monitoring systems.
- Product Type: VM600 Condition Monitoring Module
- Key Specs: 16 dynamic channels + 4 tachometer channels | 24-bit acquisition | High-resolution FFT | Ethernet communication | VibroSight compatible | Hot-swappable
- Condition: New Surplus
Product Introduction

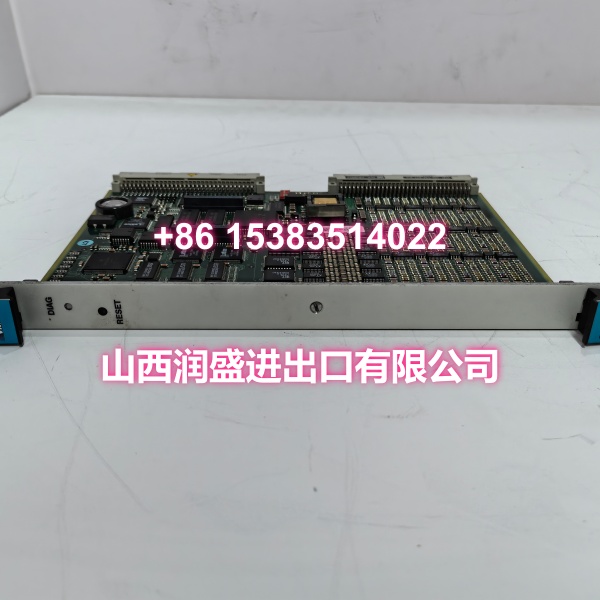

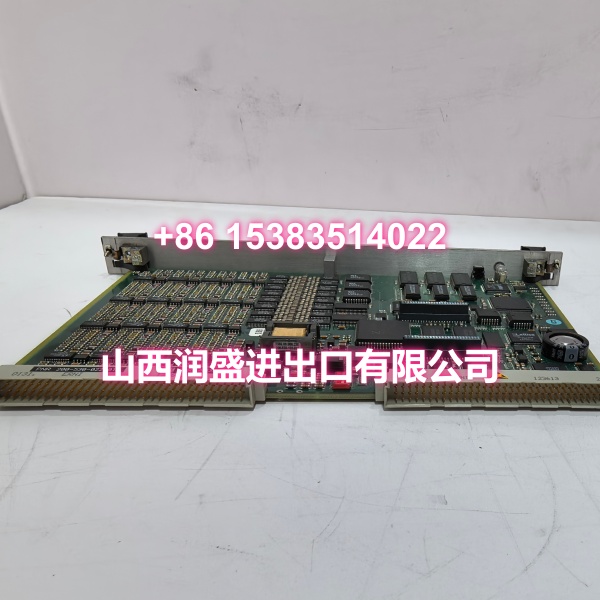

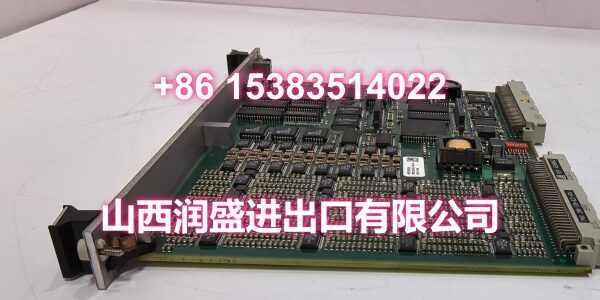

VIBRO-METER CMC16 is a condition monitoring module for the VM600 and VM600 Mk2 rack-based machinery monitoring systems. It provides 16 dynamic input channels and 4 tachometer channels for continuous acquisition, processing, and analysis of vibration and speed signals from rotating equipment such as turbines, compressors, generators, pumps, fans, and blowers.
The CMC16 performs 24-bit data acquisition with high signal-to-noise ratio processing and supports both asynchronous fixed-frequency sampling and synchronous order-tracked sampling. It is capable of high-resolution FFT analysis and generates multiple processed outputs per channel for trend monitoring, alarm evaluation, and diagnostic reporting. Monitoring data can be accessed through Ethernet communication and is designed for use with VibroSight software for configuration, visualization, and long-term condition assessment.
The CMC16 is installed in the front of a VM600 ABE04x system rack and communicates through the rack backplane. Depending on the hardware revision and system configuration, it may be paired with a rear I/O module such as XIO16T for sensor and tachometer connections. The exact channel mapping, I/O arrangement, and software license requirements should be confirmed against the module nameplate and official Vibro-Meter documentation.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | VM600 Condition Monitoring Module |
| Brand | VIBRO-METER |
| Model | |
| Part Numbers | 200-530-111-013, 200-530-100-014 |
| System Compatibility | / Mk2 |
| Dynamic Channels | 16 |
| Tachometer Channels | 4 |
| Data Acquisition | 24-bit |
| Sampling | Asynchronous and synchronous/order-tracked |
| Communication | Ethernet |
| Software | VibroSight |
| Mounting | Front-mounted in VM600 ABE04x rack |
| Hot Swap | Supported |
| Condition | New Surplus |
Note: Exact frequency range, FFT resolution, processed output count, I/O module pairing, and revision differences between 200-530-111-013 and 200-530-100-014 should be verified from the module nameplate and official Vibro-Meter documentation.
Quality Control Process
Each unit begins with a visual inspection of the front panel, connectors, PCB, backplane contacts, and status indicators for corrosion, burnt traces, loose connectors, or mechanical damage. The CMC16 is seated into a compatible VM600 rack to verify mechanical fit and backplane engagement.
Power is applied through the rack supply, and module initialization is checked via status LEDs. Ethernet communication is verified where testable, and channel health is reviewed through VibroSight or rack diagnostics. If an associated rear I/O module is present, sensor input paths and tachometer channels are checked for continuity and signal integrity. Final packing uses anti-static bags, foam inserts, and sealed cartons to protect the module during shipment.
Replacement Pitfall Guide
❗ Confirm the exact part number and revision. CMC16 modules exist in multiple variants such as 200-530-111-013, 200-530-100-014, and 200-530-025-014. Hardware revision, I/O pairing, and software features may differ between revisions.
❗ Verify the rear I/O module. Some VM600 condition monitoring configurations require a paired rear I/O card such as XIO16T for dynamic and tachometer signal connections. Installing a CMC16 without the correct rear module can leave channels unmapped.
❗ Revalidate channel mapping in VibroSight. After replacement, every dynamic and tachometer channel must be reconfirmed in the configuration software. Incorrect mapping can cause missing trends, false alarms, or loss of diagnostic data.
❗ Check Ethernet and software licensing. CMC16 data is typically accessed through VibroSight over Ethernet. Confirm network settings, module addressing, and any required software licenses before commissioning.
❗ Do not confuse CMC16 with MPC4. MPC4 is a machinery protection card focused on trip logic, while CMC16 is a condition monitoring card focused on data acquisition, FFT analysis, and long-term trending. They are not direct replacements for each other.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Related Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| VIBRO-METER CMC16 200-530-111-013 | VIBRO-METER CMC16 200-530-111-013 | Direct | Same part number; verify revision and I/O pairing. |
| VIBRO-METER CMC16 200-530-111-013 | VIBRO-METER CMC16 200-530-100-014 | Needs Adaptation | Same CMC16 family; confirm revision, channel configuration, and software compatibility. |
| VIBRO-METER CMC16 200-530-111-013 | VIBRO-METER CMC16 200-530-025-014 | Needs Adaptation | Same CMC16 family; verify exact hardware revision and feature set. |
| VIBRO-METER CMC16 | VIBRO-METER MPC4 / AMC8 | Not Compatible | MPC4 and AMC8 are protection/analog monitoring cards, not direct CMC16 replacements. |
Benchmark notes:
- 16 dynamic channels plus 4 tachometer channels for comprehensive condition monitoring.
- 24-bit acquisition with asynchronous and synchronous/order-tracked sampling.
- Ethernet communication designed for VibroSight integration in VM600 / VM600 Mk2 racks.
Always confirm the exact revision, rear I/O module pairing, and VibroSight channel configuration against the original unit before installation.
