Product Core Brief

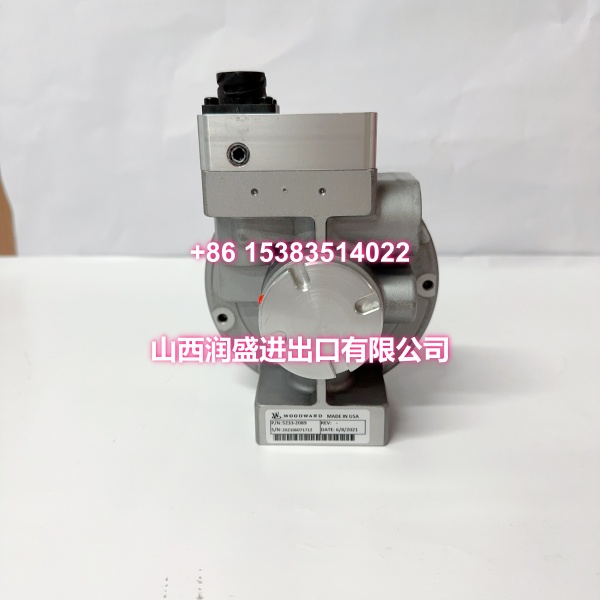

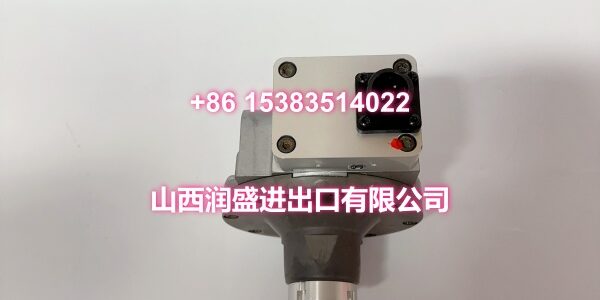

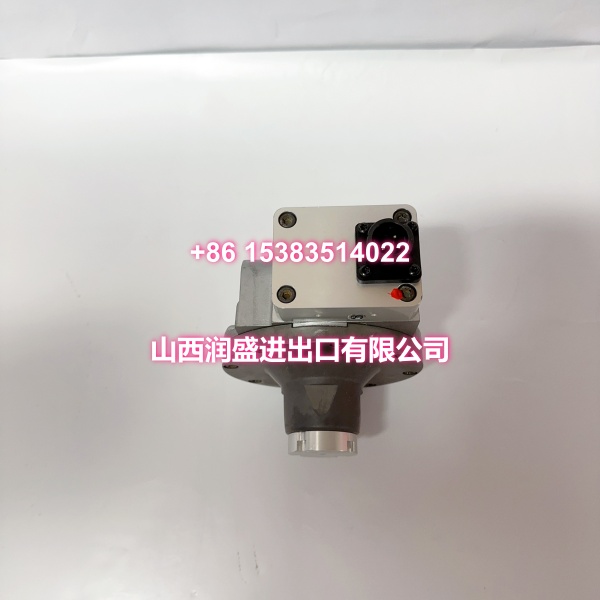

• Model: 5233-2089
• Brand: WOODWARD
• Series: 505E Series Microprocessor Control
• Core Function: Digital speed, load, and synchronization control for industrial steam turbines, gas turbines, turbo-generators, and turbo-expanders.
• Product Type: Turbine Governor / Digital Microprocessor Controller Module
• Key Specs: 16 contact inputs (4 fixed + 12 programmable) | 6 programmable 4–20 mA analog inputs | 0–10 V DC actuator output | RS-232 / Ethernet (Modbus) communications
• Condition: New Original / New Surplus (verify per lot)

Key Technical Specifications

• Controller type: Digital microprocessor turbine governor
• Application: Steam turbines, gas turbines, turbo-generators, turbo-expanders
• Control modes: Speed control, load control, isochronous/synchronization
• Display: 2-line × 24-character front-panel operator display, menu-driven configuration
• Digital inputs: 16 contact inputs (4 dedicated, 12 programmable)
• Analog inputs: 6 programmable current inputs, 4–20 mA
• Analog output: 0–10 V DC for actuator/valve drive
• Communications: RS-232, Ethernet; Modbus protocol support
• Advanced features: Critical-speed avoidance, valve limiting, self-diagnostics
• Power supply: Confirm from nameplate; public listings vary between 24 V DC and 220 V AC depending on configuration
• Operating temperature: Confirmed range varies by source; verify nameplate rating before deployment
• Mounting: Panel/control-cabinet module, modular PCB assembly in enclosure



Product Introduction (No Fluff)

The WOODWARD 5233-2089 is a microprocessor-based turbine governor used to manage start/stop sequencing, acceleration, speed regulation, load control, and synchronization on industrial turbines. It drives single or dual staged actuators to position steam inlet valves while continuously monitoring speed, temperature, pressure, and I/O status.

For integrators and plant engineers, the value is straightforward: it consolidates turbine sequencing, protection logic, analog conditioning, and Modbus communications into one configurable controller. That reduces wiring complexity, shortens commissioning time, and makes replacement planning easier when legacy hardware reaches obsolescence.



QA & Testing SOP (Dynamic & Transparent)

Every unit is handled as a critical control component. Before release, we run the following checks:

1. Visual & counterfeit inspection — Verify part number, serial/lot markings, PCB revision, connector condition, and signs of rework or corrosion.
2. ESD-safe handling — Stored and shipped in anti-static packaging; handled with grounded wrist straps and ESD mats.
3. Power-up & firmware check — Apply rated power per nameplate, confirm boot sequence, display initialization, and accessible configuration menus.
4. I/O verification — Validate digital input response and analog input scaling where test equipment permits; confirm 0–10 V output stage readiness.
5. Communications sanity check — Confirm RS-232/Ethernet interface presence and basic link detection; full Modbus point mapping is validated during site commissioning.

Note: Full turbine-loop testing requires the actuator, speed pickup, and process instrumentation. Bench testing confirms hardware health, not final plant tuning.

Installation Pitfalls & Guide (Engineer to Engineer)

❗ Confirm the exact power rating before energizing. Public references list both 24 V DC and 220 V AC variants. Applying the wrong supply can destroy the module. Always match the nameplate.

❗ Do not hot-swap during active turbine operation. This is a governor-class controller; removing it while the turbine is online can cause loss of speed/load control and unsafe valve behavior.

❗ Check actuator compatibility. The 0–10 V output must match the actuator’s input range, polarity, and fail-safe requirements. Do not assume legacy hydraulic amplifiers accept direct 0–10 V drive.

❗ Grounding and noise matter. 4–20 mA loops and speed signals should be routed away from VFD cables, contactor coils, and Ethernet runs. Poor grounding can create drift or false trips.

Replacement steps:

1. Pre-install: Lock out energy sources, confirm turbine is tripped/secured, record existing parameters, and verify replacement nameplate data.
2. Removal: Label all wiring, photograph terminal assignments, disconnect I/O and communications, then remove the module.
3. Install: Seat the replacement securely, reconnect I/O with correct polarity, and verify grounding.
4. Power-on test: Apply power, confirm display and diagnostics, verify I/O readings, then recommission under controlled conditions with the turbine offline or in manual test mode.



Technical FAQ

Is this compatible with my existing 505E system? It is listed as part of the 505E-series microprocessor control family, but compatibility depends on firmware, I/O mapping, actuator type, and existing configuration. Always cross-check the nameplate and application notes before substitution.

Can you supply this as new surplus? Yes, availability depends on current inventory. We can provide new original or new surplus stock when available, with photos and lot details on request.

What warranty do you offer? Warranty terms depend on condition and lot. New original units typically carry a standard defect warranty; surplus items may carry a shorter DOA/inspection window. Confirm before ordering.

Can I replace a failed 5233-2089 without reprogramming? Not automatically. Even if the hardware matches, parameters such as speed setpoints, actuator limits, critical-speed bands, and I/O assignments must be verified. Treat it as a recommissioning event, not a plug-and-play swap.

Is Modbus integration supported? Yes. The controller supports RS-232/Ethernet communications with Modbus protocol capability for integration with DCS, PLC, or SCADA systems. Final point mapping must be configured during commissioning.
