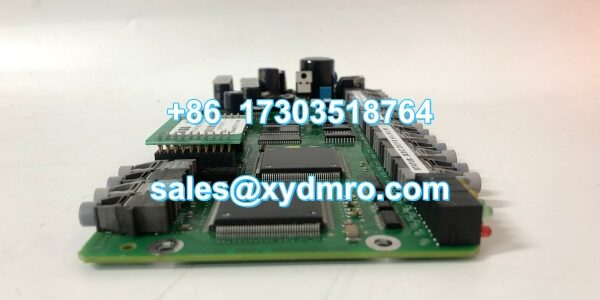

Product Quick-Glance Brief
- Model: 3BHE055094R0002 / GBU72
- OEM: ABB
- Category: Grid Breaker Control Unit / Breaker Interface Module
- Core Function: Controls and supervises grid-side breaker trip/close commands for ABB PCS 6000 medium-voltage drive and converter systems.
- Key Specs: 24 VDC control supply | Opto-isolated digital inputs | Relay outputs for trip/close commands
Technical Overview & Field Application
Medium-voltage drive cabinets do not tolerate vague breaker control. The ABB 3BHE055094R0002 GBU72 sits in that exact gap between the system controller and the grid breaker, translating permissive signals into safe trip and close commands.
This unit is commonly used in PCS 6000 MV drive, converter, SFC, and STATCOM applications, where breaker status supervision, auxiliary contact monitoring, and interlock logic must remain deterministic. It typically monitors 52a/52b auxiliary contacts, spring-charged status, and other permissives before allowing a close command.
Its opto-isolated digital inputs help reduce noise coupling inside medium-voltage switchgear environments. Relay outputs provide hardwired trip/close signaling, which remains preferable when fieldbus latency or controller restarts cannot be trusted with breaker safety logic. The module is not a gate driver, not a PLC CPU, and not a general-purpose I/O card.
Essential Specifications
| Parameter | Specification |
|---|---|
| Product identification | ABB 3BHE055094R0002 / GBU72 |
| Product type | Grid Breaker Control Unit |
| Typical system | ABB PCS 6000 MV drive / converter platforms |
| Control supply | 24 VDC nominal, typically 18–30 VDC |
| Power consumption | Approx. 6–10 W depending on I/O loading |
| Digital inputs | 24 VDC opto-isolated inputs |
| Outputs | Relay outputs for trip/close commands |
| Communication | Hardwired I/O; no fieldbus required for basic operation |
| Mounting | Cabinet/panel-mounted in low-voltage control cubicle |
| Operating temperature | 0 to +55 °C typical for indoor panel installation |
Quality Assurance Protocol
Each unit is visually inspected for burnt components, damaged terminal blocks, relay contacts, opto-isolators, and corrosion on connectors or mounting surfaces. The 3BHE055094R0002 and markings are verified to prevent substitution with unrelated ABB gate driver or I/O modules.
Power-up checks confirm:
- 24 VDC supply acceptance
- Digital input status recognition
- Relay output operation where test fixtures allow
- Terminal labeling and interlock wiring integrity
Final packing uses anti-static bags, foam support, and rigid cartons to protect connectors during transit.
Engineer’s Installation / Replacement Notes
- Verify it is a Grid Breaker Unit. GBU72 in this part number refers to breaker control, not a semiconductor gate drive board.
- Match the full part number and revision. Other GBU72 or 3BHE055094 variants may change I/O allocation or interlock behavior.
- Confirm breaker auxiliary wiring. 52a/52b contacts, spring-charged signals, and permissive circuits must match the installed breaker.
- Check anti-pumping and interlock logic. Incorrect trip/close wiring can cause repeated closing attempts or unsafe operation.
- Back up system configuration. Controller-side I/O mapping, permissive logic, and breaker supervision parameters should be reviewed before replacement.
