Product Core Brief

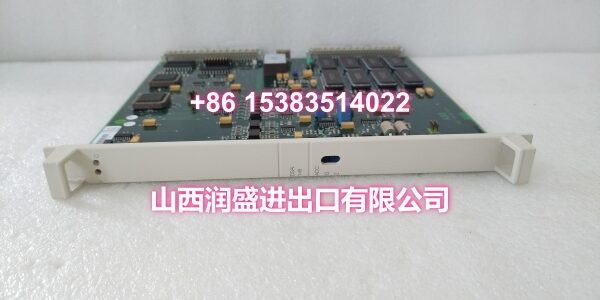

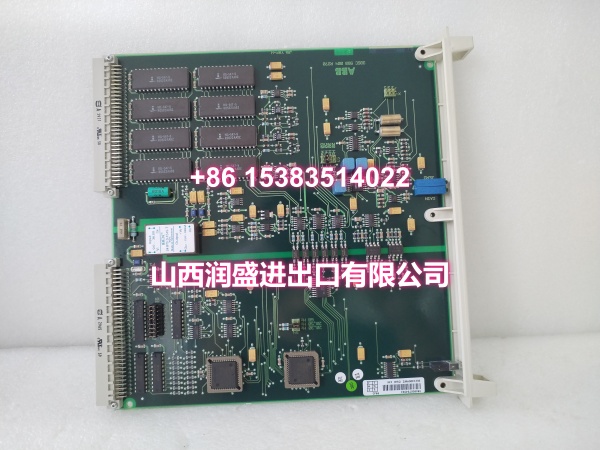

- Model: DSAI146 3BSE007949R1
- Brand: ABB
- Series: Advant OCS / S100 I/O
- Core Function: 31-channel RTD (Pt100, 3-wire) analog input module for temperature monitoring in Advant OCS systems.
- Product Type: RTD Input Module
- Key Specs: 31 RTD channels | Pt100 3-wire | −100 °C to +320 °C / −200 °C to +640 °C range
- Condition: New Original / New Surplus
Key Technical Specifications
- Channels: 31 RTD inputs (Pt100, 3-wire)
- Input Range: −100 °C to +320 °C or −200 °C to +640 °C
- System Compatibility: ABB Advant OCS / S100 I/O
- Module Type: RTD Input Unit
- Part Number: 3BSE007949R1
- Signal Type: Resistance temperature detector (RTD)
- Wiring Configuration: 3-wire RTD
- Mounting: S100 I/O subrack / cardfile
- Diagnostics: Board-level LED indicators and system diagnostics
- Hot-Swap: Supported for S100 I/O analog boards in normal operation
Product Introduction (No Fluff)
This is an ABB Advant OCS / S100 I/O RTD input module designed for multi-point temperature acquisition in process control, power generation, and industrial automation systems. It accepts 31 channels of Pt100 3-wire RTD signals, making it suitable for furnace monitoring, heat exchanger arrays, reactor temperature banks, and distributed temperature measurement where channel density matters.
The main advantage is channel consolidation: one module handles 31 RTD points, reducing rack space, wiring complexity, and spare-part variety. For plants running legacy Advant OCS hardware, this unit is often the correct direct replacement when original cards fail or when system expansions require additional temperature inputs.
QA & Testing SOP (Dynamic & Transparent)
We treat this as a legacy S100 I/O board, not a generic plug-in card. Incoming units go through visual, electrical, and functional checks before release.
- Inbound authenticity check: Verify part number 3BSE007949R1, ABB labeling, PCB revision, connector condition, and absence of corrosion or rework signs.
- Physical inspection: Check edge connector pins, card guides, mounting hardware, and LED indicators for damage or bent contacts.
- ESD-safe handling: Units are stored in anti-static bags with humidity control; handling follows ESD workstation practices.
- Bench verification: Confirm board power-up behavior, LED status, and basic communication with an Advant OCS / S100 test environment where available.
- Channel sanity check: For RTD modules, we verify representative channel readings against known resistance values to detect open circuits, shorted inputs, or drifted channels.
If a full OEM test rack is not available, we disclose it clearly rather than inventing test results.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Do not confuse DSAI146 with other DSAI boards. DSAI145, DSAI155, DSAI133, and DSAI110 are different modules. Wrong substitution can cause bad readings or slot faults.
❗ Check 2-wire vs 3-wire RTD wiring. This module is specified for Pt100 3-wire RTD. Using 2-wire sensors without proper compensation will introduce measurement error.
❗ Verify slot configuration before insertion. Advant OCS / S100 systems may require the slot to be configured for the correct module type. Dropping in a new board without confirming the engineering station configuration can trigger diagnostics alarms.
❗ Mind ESD and backplane pins. S100 cards use edge connectors; forced insertion can bend pins. Always align the card guides and seat evenly.
Replacement steps:
- Pre-install: Confirm part number, slot ID, engineering configuration, and ESD precautions.
- Removal: If hot-swap is permitted by the system design, follow ABB procedures; otherwise, plan a controlled shutdown.
- Install: Seat the module firmly, verify connector alignment, and secure retaining hardware.
- Power-on test: Check LED status, confirm channel diagnostics, and validate temperature readings against a known reference.
Technical FAQ
Is this module still available?
ABB DSAI146 3BSE007949R1 is a legacy Advant OCS / S100 I/O module. Availability depends on surplus and remaining stock. We recommend confirming current inventory before planning a large replacement.
Can I use it instead of DSAI145 or DSAI155?
No. DSAI145, DSAI155, and DSAI146 serve different input types. DSAI146 is an RTD input unit for 31-channel Pt100 3-wire signals; substituting it for thermocouple or other analog boards is not supported.
Does it support hot-swap?
ABB Advant OCS S100 I/O supports exchanging certain I/O boards during operation, but actual hot-swap safety depends on system configuration, slot type, and plant procedures. Always verify with the engineering station and site SOP before removing a live card.
What warranty do you offer?
Warranty terms depend on condition: new original, new surplus, or tested used. We provide clear condition labeling and DOA coverage for tested units. Specific warranty length should be confirmed at checkout.
Can you help me confirm compatibility?
Yes. Send the rack type, slot number, existing module label, and engineering station screenshot if possible. We will check whether 3BSE007949R1 matches your slot configuration and wiring before shipment.
