Component Snapshot At-a-Glance

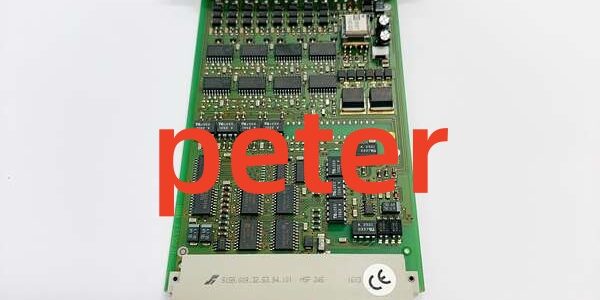

- Model: F3330
- Alt. P/N: 984333002 factory full part number
- Product Series: HIMA HIMax, H41q, H51q HIQuad Safety Instrumented System
- Hardware Type: DIN rail rack-mounted 8-channel safety digital output module
- Key Feature: Per-channel output readback + continuous walking-bit test to detect stuck-on/stuck-off circuit faults
- Primary Field Use: Drive 24VDC ESD solenoid valves, blowdown actuators and alarm horns for SIL3 emergency shutdown safety loops.
Hard-Numbers: Technical Specifications
- Protocol Support: HIMA proprietary safety backplane bus, ELOP II programming software
- Port Count: Single rear P2 ITI terminal port locked to Z7138 prefabricated cable assemblies only
- Baud/Data Rate: Fixed 50ms full module scan cycle, 200µs diagnostic test pulse width
- Operating Temperature: -20°C to +60°C operational; -40°C to +85°C storage
- Isolation Rating: 1500VAC field-to-backplane galvanic isolation per channel bank
- Power Draw: 5VDC rack bus 110mA, 24VDC field supply max 180mA
- Channel Rating: 500mA per channel max, 12W inductive/resistive load, 4W lamp load
- Line Resistance Limit: Max 11Ω total wire resistance per output circuit
- Undervoltage Trip Threshold: ≤16VDC field supply triggers module general fault
- Short-Circuit Protection: 0.75–1.5A auto current limiting, auto reset after fault clear
- Certifications: IEC 61508 SIL3, ATEX Zone 2, PL e ISO 13849-1
- Matching Cable: Z7138/3330/CX/P2 factory shielded pre-terminated harnesses
- Weight: 0.1kg single module unit
The Real-World Problem It Solves
Standard non-safety digital output cards lack output readback, so control logic cannot tell if a trip solenoid fails open or shorted mid-run. Unprotected inductive solenoid flyback voltage burns generic output transistors and creates unrecognized silent safety failures that violate SIL3 fault detection rules.Where you’ll typically find it:
- Refinery reactor blowdown, high-pressure vessel HIPPS solenoid control loops
- Offshore FPSO fire suppression valve and emergency shutdown trip actuator wiring
- Fossil power plant boiler fuel shutoff valve and gas turbine BMS safety outputsThis diagnostic-equipped DO module catches stuck output circuits and suppresses solenoid flyback without unplanned unit trips.
Hardware Architecture & Under-the-Hood Logic
This module uses independent isolated drive circuits for each channel, paired with dedicated feedback readback paths to validate every switch state to the safety CPU.
- ELOP II safety logic sends switch commands over the rack safety backplane to ’s channel drive logic.
- Isolated power FET switches 24VDC field power to solenoid loads through Z7138 shielded wiring.
- A dedicated readback circuit samples actual output voltage after every switch command to confirm physical state matches logic demand.
- Cyclic walking-bit test injects microsecond test pulses to detect shorted channel pairs and broken field wiring without actuating loads.
- Internal flyback suppression diodes clamp inductive solenoid voltage spikes to prevent FET burnout during valve de-energization.
- Front panel LED array displays module OK, general fault, and individual channel mismatch/readback alarms for quick cabinet troubleshooting.
Field Service Pitfalls: What Rookies Get Wrong
Forcing Mismatched Z7128/Z7116 Plugs Into P2 ITI Port
New technicians grab leftover analog Z7128 or DI Z7116 plugs when Z7138 stock runs low. Misaligned pinouts short high-current 24V output power to low-voltage measurement circuits and blow internal module drive FETs instantly.Field Rule: Only Z7138 series plugs marked /3330/P2 are permitted for ; inspect P2 keyway indexing before mating to rear port.
Directly Wiring Inductive Solenoids Without External Snubber Circuits
Most crews skip adding RC snubbers or freewheeling diodes on large 24V trip solenoids. Flyback voltage spikes degrade the output FETs over weeks of cycling, triggering intermittent readback mismatch faults.Quick Fix: Install 1N4007 freewheel diode reverse parallel across each solenoid coil; limit single channel load to under 400mA for continuous cycling valves.
Dual-End Shield Grounding Creates Random Solenoid Chatter
Field crews ground braided shield at both cabinet baseplate and field junction box. Plant ground potential difference generates low-frequency hum current that toggles DO states randomly during compressor and turbine load swings.Field Rule: Terminate shield drain wire exclusively at the cabinet baseplate; cap and insulate field-side shield with no ground connection.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
