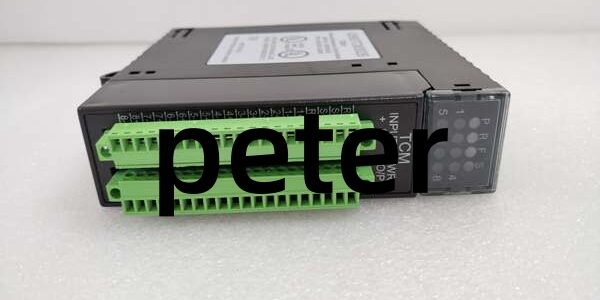

Product Core Brief

• Model:
• Brand: GE Fanuc / Emerson Automation
• Series: Series 90-30 PLC
• Core Function: 8-channel independent temperature control module for Series 90-30 main rack. Combines temperature sensor acquisition and local PID closed-loop control, outputs PWM drive signals to regulate heating/cooling loads. Control algorithm runs onboard to minimize CPU scan overhead.
• Product Type: Single-width Series 90-30 Local I/O Temperature Control Module
• Key Specs: 8 independent control loops | Supports Thermocouple & 3-wire Pt100 RTD | Built-in cold junction compensation | Onboard PID | Solid-state PWM outputs Note: Discontinued legacy Series 90-30 module; new original stock scarce, surplus & refurbished widely available. Suffix variant IC693TCM302B is updated PCB revision, fully mechanically and functionally interchangeable. Does NOT support hot swap. Cannot plug directly into RX3i main backplane; RX3i systems require IC695LRE001 serial expansion remote rack deployment. No built-in HART support.



Key Technical Specifications

• Channel Configuration: 8 independent closed-loop temperature control channels
• Supported Sensor Types Thermocouple: J, K, E, T, R, S, B, N RTD: Pt100 (3-wire)
• ADC Resolution: 12-bit
• Control Algorithm: Independent PID per channel, manual open-loop mode selectable
• Output Type: Solid-state DC PWM outputs
• Output Electrical Ratings External supply: 18 ~ 36 VDC Per channel maximum load: 100 mA Off-state leakage current ≤ 0.1 mA
• PWM Cycle Period: Adjustable range 0.1 ~ 60 seconds per channel
• Diagnostics: Sensor open-circuit detection, thermocouple reverse polarity detection, temperature high/low limit alarms
• Isolation Rating: 1500 VAC isolation between field I/O circuit and backplane logic
• Backplane Power Consumption 5 VDC: 150 mA
• External Power Requirement: 18–36 VDC to power PWM output drivers
• Front Panel LED Indicators: PWR, RUN, FLT, SHORT, 8 individual channel status LEDs
• Operating Temperature: 0°C ~ +55°C horizontal cabinet mounting
• Storage Temperature: -40°C ~ +85°C
• Form Factor: Single-width module for Series 90-30 backplane
• Compatible Baseplates: IC693CHS391, IC693CHS392 Series 90-30 racks
• Supported Software: Logicmaster 90, Proficy Machine Edition
• Agency Certifications: UL508, Class I Div.2, CE



Product Introduction

is a multi-loop integrated temperature control module designed for the Series 90-30 platform, widely used in heat treatment furnaces, extrusion lines, packaging thermoforming, ovens and other thermal process equipment.

Core advantage: PID control executes locally on the module hardware, not within the main CPU. Even with all 8 active control loops, CPU scan cycle impact remains minimal. Each channel supports independent sensor configuration (thermocouple or Pt100 RTD) with built-in cold junction compensation. PWM outputs are primarily used to drive solid-state relays (SSR) for heater regulation.

Important Distinction

1. : Integrated input + onboard PID + PWM output temperature controller
2. IC693ALG220 / ALG221: Temperature input-only modules, no local control outputs

Platform Migration Note cannot be inserted directly into RX3i main rack. If deploying on RX3i systems, install on remote serial expansion racks via IC695LRE001 transceiver.

Revision Note: and IC693TCM302B share identical pinout and specifications, interchangeable. After replacement, verify all channel parameters.



QA & Testing SOP (Transparency Building)

1. Incoming Inspection: Verify part marking. Inspect backplane gold pins for oxidation and bending; check terminal connectors and module housing integrity.
2. Live Testing: Mount onto validated Series 90-30 backplane. Configure sensor type and PID parameters, simulate setpoint adjustments, validate closed-loop temperature regulation, test sensor break diagnostic alarms, run continuous 24-hour stability test.
3. Electrical Testing: Monitor backplane 5V rail stability. Insulation resistance ≥10MΩ between field circuits and chassis protective ground.
4. Firmware Record: Document hardware revision; photograph front panel labels before clearing configuration data.
5. Final QC & Packaging: Place unit inside anti-static shielding. Attach dated QC test tag confirming temperature acquisition, PID control and fault diagnostic function validation prior to shipment.



Installation Pitfalls & Guide

❗ No Hot Swap Support: Series 90-30 modules cannot be hot swapped. Full rack power shutdown required before removal. ❗ External DC Power Mandate: PWM outputs require separate 18~36VDC external power supply; outputs will not activate without external field power. ❗ Thermocouple Wiring Rule: Use dedicated thermocouple extension cable; ordinary copper wire creates measurement offset errors. ❗ Inductive Load Protection: When driving inductive loads, install flyback suppression components; recommended load is SSR solid-state relays. ❗ Fail State Planning: Configure safe output state upon sensor open-circuit to avoid over-temperature hazards. ❗ Revision Interchange: and IC693TCM302B are plug-compatible. After replacement, recheck sensor settings, PID gains and limit alarms. ❗ ESD Risk: Static discharge damages analog front-end circuits, resulting in temperature reading drift and unstable control.

Replacement Guide

1. Pre-install: Lockout-tagout rack power; back up complete PLC project and all TCM channel parameter settings. Photograph slot layout and field wiring.
2. Removal: Disconnect all field input/output wiring; unlatch module and slide straight out without twisting backplane pins.
3. Install: Seat new into original slot, replicate all field wiring connections.
4. Power-on Test: Restore rack power; confirm PWR/RUN LED status, download project parameters, verify temperature readings, closed-loop PID response and sensor fault detection.



FAQ

Q: Does support hot swapping? A: No. Series 90-30 I/O modules do not support hot swap. Full rack power shutdown is mandatory.

Q: What is the difference between and IC693TCM302B? A: Identical core functionality. -B suffix represents updated PCB hardware revision. Mechanically fully interchangeable. Always perform full channel testing after replacement.

Q: Can this module run PID without CPU logic intervention? A: Yes. Closed-loop control runs locally on the module; CPU only exchanges setpoints and temperature feedback values.

Q: Can I install directly into RX3i main rack? A: No. Native Series 90-30 module. For RX3i systems, use IC695LRE001 to build remote serial expansion racks.

Q: Does this module accept 4–20mA transmitters? A: No. Native inputs limited to thermocouple and 3-wire Pt100 RTD.

Q: Can channels mix thermocouple and RTD sensors on the same module? A: Yes, each channel can be independently configured for different sensor types.

Q: Will PID parameters remain stored on the module after replacement? A: All configuration resides in the PLC project. Module replacement requires re-downloading channel parameters.
