Component Snapshot At-a-Glance

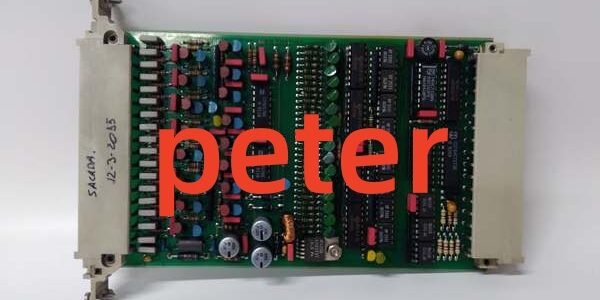

- Model: F3236
- Alt. P/N: 984323602 factory full part number
- Product Series: HIMA HIMax, H41q, H51q HIQuad Safety Instrumented System
- Hardware Type: DIN rail rack-mounted 16-channel safety digital input module, 4TE slot width
- Key Feature: Dual independent signal measurement circuits per channel with continuous cyclic wire testing
- Primary Field Use: Capture NAMUR sensors, dry safety trip switches, valve position feedback and fire gas detector discrete signals for SIL3 ESD interlock loops.
Hard-Numbers: Technical Specifications
- Protocol Support: HIMA proprietary safety backplane bus, ELOP II / SILworX programming software
- Port Count: Single rear T1 ITI terminal port, exclusive mating with Z7116 prefabricated cable assemblies
- Baud/Data Rate: Fixed 50ms full module scan cycle, 8ms configurable input debounce filter
- Operating Temperature: -25°C to +60°C operational; -40°C to +85°C storage
- Isolation Rating: 1500VAC channel-to-channel galvanic isolation, field-to-backplane isolation
- Power Draw: 5VDC rack bus 120mA, total module power consumption max 2.5W
- Input Signal Compatibility: 24VDC dry mechanical contacts, NAMUR proximity sensors (6mA / 2mA current thresholds)
- Input Trip Threshold: Logic ON ≥18VDC, Logic OFF ≤11VDC for 24V contact signals
- Line Diagnostic Limit: Max 12Ω total wire resistance per channel before wire-break alarm triggers
- Certifications: IEC 61508 SIL3, ATEX Zone 2, PL e ISO 13849-1, CE marked
- Matching Cable: Z7116/3236/CX/T1 factory shielded LED-equipped harnesses
- Weight: 0.1kg single module unit
The Real-World Problem It Solves
Low-density generic DI cards waste rack cabinet space and lack dual cross-check measurement, so single circuit faults go undetected and break SIL3 fault detection requirements. Standard input hardware skips continuous wire testing, leaving broken field wiring undiscovered until a safety trip event fails to actuate.Where you’ll typically find it:
- Refinery high-level, high-pressure trip switch and HIPPS valve position feedback input circuits
- Offshore FPSO fire gas detector, blowdown valve limit switch safety signal acquisition
- Fossil power plant boiler emergency stop, furnace pressure interlock discrete safety loopsThis high-density dual-measurement DI module catches hidden wire faults and rejects industrial EMI without spurious safety trip initiations.
Hardware Architecture & Under-the-Hood Logic
This module runs two fully separate signal acquisition paths for every channel; no shared conditioning hardware between measurement legs to eliminate single-point signal failure.
- Field NAMUR/dry contact signals pass through Z7116 shielded wiring into isolated front-end input circuits on each channel.
- Two independent sampling circuits read identical input current/voltage values simultaneously for hardware cross-comparison.
- Cyclic walking-bit test injects microamp test pulses to detect open wires, shorted pairs and degraded cable insulation.
- Configurable 0–32ms digital debounce filter suppresses mechanical contact bounce from valve limit switches.
- Isolated safety backplane interface transmits validated discrete states and fault codes to HIMA safety CPU every 50ms scan cycle.
- Front panel LED array displays module OK, general fault, and channel-specific wire-break alarms for rapid cabinet diagnostics.
Field Service Pitfalls: What Rookies Get Wrong
Forcing Mismatched Z7128/Z7138 Plugs Into T1 ITI Port
New technicians grab leftover analog Z7128 or DO Z7138 plugs when Z7116 stock runs low. Mismatched pinouts short 24V field power to low-voltage measurement circuits and blow internal module input protection fuses instantly.Field Rule: Only Z7116 series plugs marked /3236/T1 are permitted for ; verify T1 keyway indexing before mating to rear port.
Dual-End Shield Grounding Creates Random DI State Fluctuations
Field crews ground the braided shield at both cabinet baseplate and field junction box. Plant ground potential difference generates circulating hum current that toggles safety switch inputs randomly during compressor and turbine load swings.Quick Fix: Terminate shield drain wire solely at the cabinet baseplate; cap and insulate field-side shield with no ground connection.
Overlooking Plug Channel LEDs And Breaking Live Field Junction Boxes
Most rookies skip checking the rear plug’s built-in LED array and immediately open energized field enclosures to probe signals. Live box work raises arc flash risk and adds unnecessary outage downtime.Field Rule: Inspect plug LED status first; dark LED = open field wire, steady lit = closed safety switch contact before opening any field enclosures.
