Component Snapshot At-a-Glance

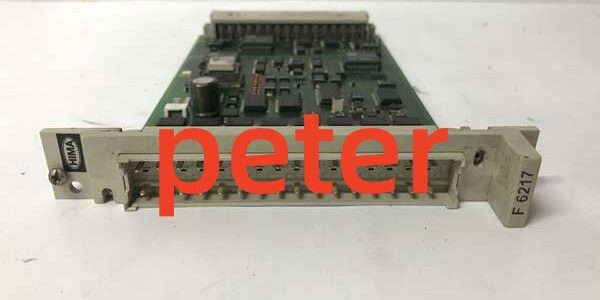

- Model: F6217
- Alt. P/N: 984621702 factory full part number
- Product Series: HIMA HIMax, H41q, H51q HIQuad Safety Instrumented System
- Hardware Type: DIN rail rack-mounted 8-channel safety analog input module
- Key Feature: Dual redundant measurement circuitry per channel with full galvanic channel-to-channel isolation
- Primary Field Use: Acquire 4–20mA/0–10V process transmitter signals for SIL3 pressure, temperature, flow safety interlock loops.
Hard-Numbers: Technical Specifications
- Protocol Support: HIMA proprietary safety backplane bus, ELOP II programming software
- Port Count: Single rear ITI terminal port compatible exclusively with Z7128 prefabricated cable assemblies
- Baud/Data Rate: Fixed 50ms full module scan cycle, 200Hz internal sampling
- Operating Temperature: -25°C to +60°C operational; -40°C to +85°C storage
- Isolation Rating: 1500VAC channel-to-channel galvanic isolation, field-to-backplane isolation
- Power Draw: 24VDC rack supply, max 7.2W per module
- Input Ranges: 0–22mA current (4–20mA transmitters), 0–5.5V / 0–10V voltage signals
- Resolution: 12-bit ADC per redundant measurement leg
- Accuracy: ±0.5% full scale over operating temperature band
- Certifications: IEC 61508 SIL3, ATEX Zone 2, PL e ISO 13849-1
- Supported Cable: Z7128/6217/CX/ITI factory pre-terminated shielded harnesses
- Weight: 0.14kg single module unit
The Real-World Problem It Solves
Generic non-safety analog cards share common ground buses and skip per-channel isolation, letting VFD and motor EMI skew safety readings and trigger false plant trips. Single-measurement hardware cannot distinguish between sensor drift and module failure, violating SIL3 fault detection requirements.Where you’ll typically find it:
- Refinery HIPPS, reactor pressure and tank level SIL3 safety monitoring loops
- Offshore FPSO compressor vibration, separator temperature transmitter signal acquisition
- Fossil power plant boiler furnace pressure, steam turbine feedwater flow SIS inputsThis dual-redundant isolated AI module catches open/short field wiring faults and rejects industrial EMI without nuisance safety shutdowns.
Hardware Architecture & Under-the-Hood Logic
This module has independent dual measurement circuits for every input channel; no shared signal conditioning between legs to eliminate single-point measurement failure.
- Field 4–20mA/voltage signals pass through Z7128 shielded cable into isolated front-end shunt resistors on each channel.
- Two separate 12-bit ADCs sample identical input values simultaneously for hardware cross-comparison.
- On-board diagnostic logic flags value mismatch between the two ADC legs as a module internal fault.
- Continuous walking-bit test injects small test signals to detect open wiring, shorted pairs, and broken shield runs.
- Isolated backplane interface transmits validated digital process values to HIMA safety CPU every 50ms scan cycle.
- Front panel multi-state LEDs display module OK, general fault, and individual channel wire-break alarms for fast visual troubleshooting.
Field Service Pitfalls: What Rookies Get Wrong
Mismatched Z7128 Cable Plug or Forced Cross-Mating With DO/DI Plugs
New technicians force Z7116 DI or Z7138 DO plugs into F6217 rear ITI port when Z7128 stock runs low. Misaligned pinouts short 24V transmitter supply to analog measurement circuits and burn internal shunt resistors instantly.Field Rule: Only Z7128 series plugs marked /6217 are permitted for F6217; verify plug ITI keyway before mating to rear port.
Dual-End Shield Grounding Creates Persistent Analog Value Drift
Most crews ground the braided shield at both cabinet baseplate and field junction box. Plant ground potential difference generates low-frequency hum that swings 4–20mA readings by ±4% under normal process load swings.Quick Fix: Terminate shield drain wire solely at the F6217 cabinet side; cap and insulate field-side shield with no ground connection.
Ignoring Low-Frequency Pump Vibration Noise Without External Filtering
Piston pump pulsations inject 10Hz interference into pressure transmitter lines, triggering intermittent channel fault alarms on F6217 during normal operation. Default module digital filters lack sufficient damping for cyclic mechanical noise.Field Rule: Install HIMA H7017 analog low-pass filter at transmitter junction boxes for pump pressure inputs; adjust filter time constant in ELOP II logic to match process dynamics.
