Component Snapshot At-a-Glance

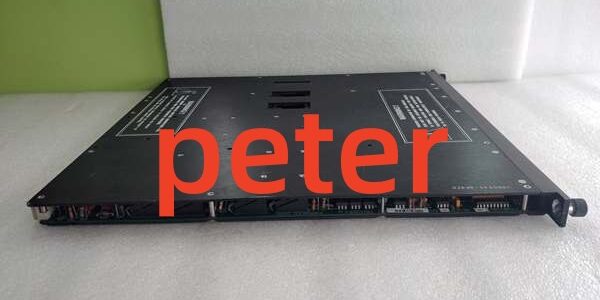

• Model: Triconex 3607E
• Alt. P/N: Supervised counterpart = 3608E (non-commoned); commoned = 3617E
• Product Series: Tricon 3000 TMR I/O, fits CX/EX/RX chassis, single-slot
• Hardware Type: 16-channel non-supervised, non-isolated digital output (DO), hot swap
• Key Feature: 48VDC direct drive, no per-channel diagnostics, lower cost
• Primary Field Use: Control non-critical 48VDC indicators, relays, and low-risk solenoids in SIL3 SIS

Hard-Numbers: Technical Specifications

• Protocol Support: Tricon TriBus backplane only; no external fieldbus
• Port Count: 16 non-isolated, non-supervised DO channels (common ground)
• Output Voltage: 48VDC nominal; 42–56VDC operating range
• Current Rating: 1.5A continuous/channel; 5A peak (10ms)
• Min Load: No minimum (no supervision circuit)
• Isolation Rating: None (field-to-backplane common ground; no channel isolation)
• Operating Temperature: -40°C to +70°C; storage -40°C to +85°C
• Power Draw: 10W max @5VDC backplane
• Certifications: IEC61508 SIL3, UL Class I Div 2, ATEX Zone 2
• Diagnostics: Module-level OK/fault only; no channel open/short detection
• Fusing: External 2A fast-acting fuse per channel (field-side)

The Real-World Problem It Solves

Supervised 48VDC modules (3608E/3617E) add unnecessary cost for low-risk, non-critical loads. Unsupervised modules cut cost while keeping TMR safety for the controller side.Where you’ll typically find it:

• Refinery auxiliary panels driving 48VDC status indicators and alarm beacons
• Power plant BMS for non-critical 48VDC control relays and annunciators
• Offshore platform non-ESD circuits: valve position indicators, local alarm lampsThis module delivers low-cost 48VDC switching for non-safety-critical loads without redundant diagnostics overhead.

Hardware Architecture & Under-the-Hood Logic

TMR controller interface with triple logic legs, but no per-channel sense circuits. Outputs use solid-state switches tied to a common ground; no isolation between channels or field/backplane.

1. TriBus receives commands from SIS controller to all three TMR legs.
2. Each leg votes independently; 2-out-of-3 enables output driver bank.
3. Solid-state switches route 48VDC to field loads; all channels share common ground.
4. No loopback sensing—module only reports global fault (power/backplane).
5. Hot-swap maintains rack uptime; outputs de-energize (fail-safe) on swap.

Field Service Pitfalls: What Rookies Get Wrong

Using 3607E for Safety-Critical LoopsTechs save cost by putting ESD/F&G solenoids on 3607E. No channel diagnostics mean broken wires/coils stay hidden until a safety demand.

• Field Rule: 3607E only for non-safety-critical loads; use 3608E/3617E for SIL3-rated safety loops.

Assuming Channel-to-Channel IsolationRookies wire separate 48VDC circuits to adjacent channels, thinking they’re isolated. Common ground causes cross-talk and unintended energization.

• Quick Fix: Group all 3607E loads to a single 48VDC supply; never mix separate power domains.

Overloading Channels Without External FusesTechs connect >1.5A loads directly to 3607E without external fuses. Internal solid-state switches burn out, taking the whole module down.

• Field Rule: Add 2A fast-acting fuse per channel at the field terminal; never exceed 1.5A continuous.
