Component Snapshot At-a-Glance

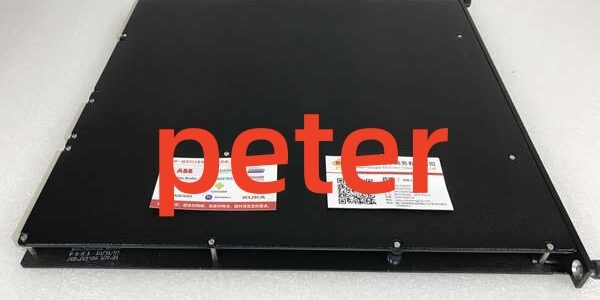

- Model: Triconex 3604E
- Alt. P/N: Commoned equivalent = 3605E; non-supervised counterpart = 3603E
- Product Series: Tricon 3000 TMR I/O Family, compatible with CX, EX, RX racks
- Hardware Type: 16-channel non-commoned supervised digital output module, single-slot hot swappable
- Key Feature: Full channel-to-channel and field-to-backplane isolation with per-channel load supervision
- Primary Field Use: Operate critical 24VDC solenoids, trip coils and contactors within SIL3-rated safety systems.
Hard-Numbers: Technical Specifications
- Protocol Support: Proprietary Tricon TriBus backplane bus only, no external fieldbus or Ethernet
- Port Count: 16 fully isolated non-commoned supervised digital output channels
- Data Rate: Real-time state updates, continuous per-channel diagnostic scanning
- Operating Temperature: -40°C to +70°C continuous operation; -40°C to +85°C storage
- Isolation Rating: 1500VDC field-to-backplane and channel-to-channel galvanic isolation
- Power Draw: 12W maximum at 5VDC backplane input, 1.0A nominal current
- Output Voltage: 24VDC nominal, 15VDC to 30VDC valid operating range
- Current Rating: 2A continuous per channel, 10A peak for 10ms transient loads
- Minimum Load: 50mA per channel to maintain valid diagnostic status
- Certifications: IEC61508 SIL3, UL Class I Div 2, ATEX Zone 2 hazardous area approval
The Real-World Problem It Solves
Commoned output modules let a single ground fault or short circuit take down multiple channels at once. Modules without supervision leave broken wires or open coils undetected during normal operation.Where you’ll typically find it:
- Refinery ESD racks controlling 24VDC emergency shutdown valves and trip relays
- Power plant BMS cabinets for fuel valve interlocks and turbine trip circuits
- Offshore fire and gas panels driving critical isolation solenoids and alarm devicesThis hardware isolates every channel and verifies load health to stop cascading faults and hidden circuit failures.
Hardware Architecture & Under-the-Hood Logic
This module uses three independent TMR logic assemblies and dedicated output drivers. Every channel has separate sense circuitry and isolation barriers with no shared return paths.
- TriBus receives command signals from the main SIS controller and distributes data to all three TMR logic legs.
- Each leg executes logic calculations independently; a 2-out-of-3 vote activates the corresponding output driver.
- Solid-state switches switch 24VDC to field loads, with fully separate positive and negative wiring for each channel.
- Onboard sense circuits track current and voltage to flag open loads, short circuits or damaged wiring.
- Hot-swap circuitry keeps the rack running during module replacement; all outputs stay de-energized for fail-safe operation.
Field Service Pitfalls: What Rookies Get Wrong
Mixing Non-Commoned and Commoned Wiring SchemesTechnicians wire 3604E using a shared return like commoned modules. This breaks channel isolation and creates ground loops that trigger false fault alarms.
- Field Rule: Run separate positive and negative conductors for every channel. Never tie return lines together.
Operating Loads Below 50mA Minimum ThresholdSmall indicator lamps and low-current relays draw less than 50mA per channel. The supervision circuit registers false open-load faults.
- Quick Fix: Install 1kΩ 2W shunt resistors on low-current loads to meet the 50mA minimum requirement.
Inductive Loads Without Surge ProtectionSolenoids and relay coils produce voltage spikes when de-energized. These transients damage internal output transistors over time.
- Field Rule: Fit a 1N4007 freewheeling diode across all inductive field loads for transient suppression.
