Component Snapshot At-a-Glance

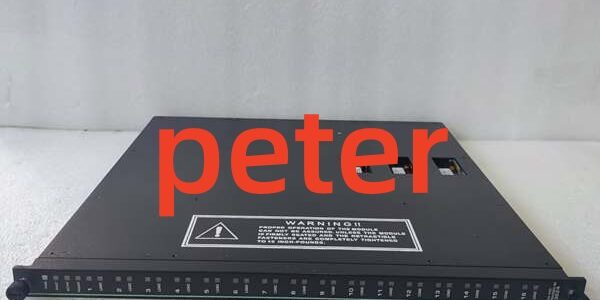

- Model: Triconex 3608E
- Alt. P/N: Functional peer = 3617E (commoned 48VDC); lower power = 3607E (48VDC non-supervised)
- Product Series: Tricon 3000 TMR I/O, fits CX/EX/RX chassis
- Hardware Type: 16-channel non-commoned supervised digital output (SDO), single-slot hot swap
- Key Feature: 48VDC isolated outputs with per-channel supervision & 1500VDC isolation
- Primary Field Use: Control high-power 48VDC solenoids, actuators, and contactors in SIL3 ESD/F&G systems
Hard-Numbers: Technical Specifications
- Protocol Support: Tricon TriBus backplane only; no external fieldbus
- Port Count: 16 non-commoned (isolated per-channel) supervised DO channels
- Output Voltage: 48VDC nominal; 42–56VDC operating range
- Current Rating: 2A continuous/channel; 10A peak (10ms)
- Min Load: 50mA/channel (diagnostic threshold)
- Isolation Rating: 1500VDC field-to-backplane & channel-to-channel
- Operating Temperature: -40°C to +70°C; storage -40°C to +85°C
- Power Draw: 14W max @5VDC backplane
- Certifications: IEC61508 SIL3, UL Class I Div 2, ATEX Zone 2
- Diagnostics: Open load, short circuit, blown fuse, wire break detection
- Fusing: 2.5A fast-acting fuse per channel (field-side)
The Real-World Problem It Solves
24VDC modules lack the voltage/current to drive large 48VDC solenoids and actuators. Commoned 48VDC modules (3617E) risk single-point faults taking out multiple channels. Unsupervised 48VDC modules hide wiring/coil failures.Where you’ll typically find it:
- Offshore ESD racks driving 48VDC shutdown valves and hydraulic actuators
- Refinery F&G panels for high-power 48VDC fire suppression solenoids
- Power plant BMS for 48VDC turbine trip coils and large contactorsThis module delivers isolated 48VDC switching with per-channel diagnostics to eliminate latent failures and single-point fault risks on high-power safety loops.
Hardware Architecture & Under-the-Hood Logic
TMR design with three independent logic legs and solid-state output drivers. Each channel is fully isolated (no common return); per-channel current/voltage sensing for supervision.
- TriBus receives commands from SIS controller and feeds all three TMR legs.
- Each leg processes logic independently; 2-out-of-3 vote enables output driver.
- Solid-state switches route 48VDC to field loads; no shared return between channels.
- Precision sense circuits monitor for <50mA (open load) or overcurrent (short/fuse blow).
- Hot-swap logic maintains rack uptime during replacement; outputs de-energize (fail-safe).
Field Service Pitfalls: What Rookies Get Wrong
Confusing 3608E (Non-Commoned) with 3617E (Commoned)Techs swap 3608E and 3617E without checking load wiring. 3608E needs isolated returns per channel; 3617E shares a common return—cross-wiring causes ground loops and channel damage.
- Field Rule: Use 3608E for high-value, independent 48VDC loads; 3617E for grouped, lower-risk 48VDC loads.
Ignoring 50mA Minimum Load ThresholdRookies connect small 48VDC indicators (<50mA) to 3608E. Below threshold triggers false open-load alarms.
- Quick Fix: Add 1kΩ/2W shunt resistors to hit 50mA minimum per channel.
Overlooking Channel-to-Channel Isolation RulesTechs daisy-chain 48VDC returns between channels. Breaks isolation, causes cross-talk and diagnostic interference.
- Field Rule: Keep each channel’s positive/negative wiring fully isolated; no daisy-chaining returns.
