Component Snapshot At-a-Glance
- Model: 4609
- Alt. P/N: No OEM direct replacement; upgrade cross-reference to newer 4610 ACM variant
- Product Series: Triconex Tricon 4600-series ACM, compatible with V9/V10 TMR SIS chassis
- Hardware Type: Rack-mounted triple-redundant advanced communication gateway module
- Key Feature: Three independent onboard comm processors with isolated TriBus backplane + dual redundant external serial ports
- Primary Field Use: Bridges Tricon SIS core logic to third-party DCS, SCADA and remote Modbus field host devices without breaking SIS safety voting

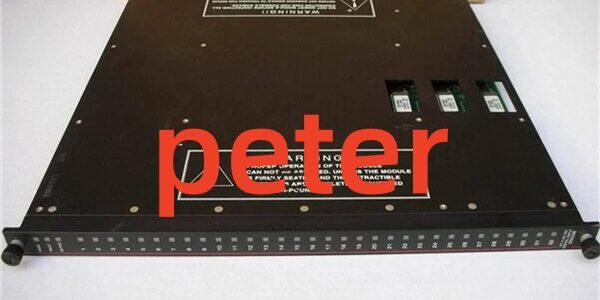

TRICONEX 3502E
Hard-Numbers: Technical Specifications
- Backplane Supply Voltage: 18VDC ~ 30VDC nominal 24VDC chassis feed
- Nominal Power Draw: 5.1W steady-state operating draw from TriBus backplane
- Supported Protocols: Modbus RTU/TCP, Foxboro IA, Honeywell UCN, custom serial host protocol
- External Port Spec: Dual opto-isolated RS485/RS232 configurable ports, max 19200 standard baud rate
- Isolation Rating: 2500V channel-to-backplane galvanic isolation per communication lane
- Operating Temperature: -40°C ~ +70°C continuous cabinet run; -40°C ~ +85°C storage range
- Safety Rating: IEC61508 SIL3 certified, UL Class I Div2, ATEX Zone2 hazardous area approval
- Form Factor: Single full rack slot, full live hot-swap compatible with powered Tricon chassis
- Diagnostic Coverage: >99% onboard channel fault detection for open/short external field wiring
The Real-World Problem It Solves
Direct hardwiring between SIS CPU and outside DCS creates common-cause fault paths; single shorted field serial cable can crash entire Tricon safety rack and trigger unplanned process trip. Older non-redundant gateway cards lose all cross-system data on single component burnout.
Where you’ll typically find it:
- Refinery FCC ESD rack linking Tricon SIS to Foxboro DCS for real-time process trending and trip alarm forwarding
- Coal-fired power BMS cabinet connecting boiler safety system to plant Honeywell SCADA host
- Onshore gas plant compressor SIS rack interfacing remote Modbus flow transmitters to core safety logic
Triple redundant onboard comm hardware segregates external field faults away from main SIS CPU to preserve uninterrupted safety operation.
Hardware Architecture & Under-the-Hood Logic
Three segregated communication processor lanes tie directly to chassis TriBus; no shared power or signal trace between lanes to eliminate cross-contamination from external wiring surges.
- Tricon 3004/3005 main CPU sends safety data across isolated TriBus simultaneously to all three independent 4609 onboard processors.
- Each lane independently translates native Tricon protocol into configured external field bus language (Modbus/DCS protocol).
- Hardware 2oo3 voting circuit validates translated data before routing out to dual external terminal block ports.
- Inbound third-party DCS/SCADA data splits equally across three isolated input circuits for redundant validation before backplane upload.
- Front-panel LED bank flags per-lane faults: green = all three lanes functional; amber = single degraded comm channel; red = dual lane failure requiring spare replacement.
- Onboard nonvolatile flash retains port protocol config through full rack power outage, no manual reconfiguration post power restore.
TRICONEX 3502E
Field Service Pitfalls: What Rookies Get Wrong
Mismatched Port Wiring Between RS232 and RS485 TerminalsNew tech terminates RS485 Modbus field cable onto RS232-configured port without checking module dipswitch settings; constant garbled register values flood DCS with invalid false process alarms.
- Quick Fix: Confirm dipswitch port mode before landing field wiring; label terminal block with selected protocol post-commissioning.
Unshielded Field Cable Run Parallel To High-VAC Power TraysInstallers route unshielded serial cabling alongside 480V motor power wiring; induced EMI causes intermittent random communication dropouts that only surface during plant motor startup.
- Field Rule: Use fully shielded twisted-pair for all 4609 external wiring, ground shield drain at cabinet single-point earth only.
Cross-Firmware Mismatch Between ACM and Chassis CPU RevisionTechnician loads V10 firmware onto V9.6 fixed 4609 without matching host 3004/3005 CPU firmware; TriBus handshake errors lock entire module off backplane communication bus.
- Quick Fix: Align ACM firmware major revision number with installed main processor software before any flash update.
