Component Snapshot At-a-Glance
- Model: 3008
- Alt. P/N: No direct OEM cross; drop-in field upgrade replacement for legacy 3004/3005 MP modules
- Product Series: Triconex Tricon V9.6 ~ V11 SIL3 TMR SIS main chassis platform
- Hardware Type: Single-slot rack mount triple redundant upgraded main processor module
- Key Feature: Optimized PCB layout cuts internal thermal rise, extended 7-year rated onboard lithium backup cell vs older 3005 variants
- Primary Field Use: Executes compiled TriStation safety logic, manages full chassis I/O polling and high-precision SOE timestamping for critical ESD/F&G racks

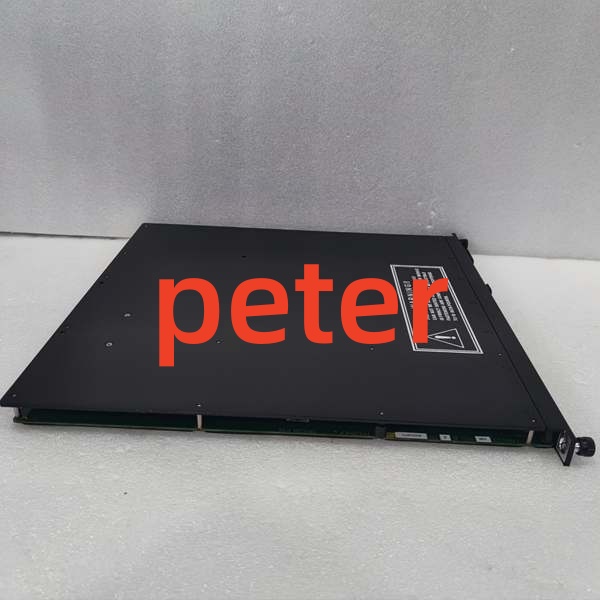

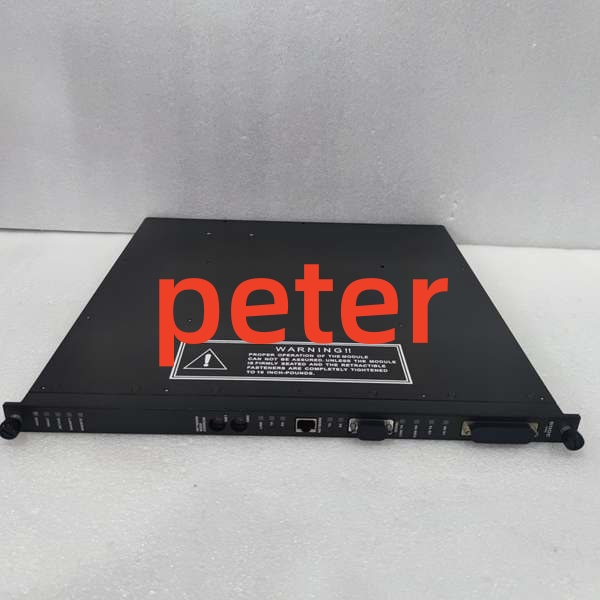

TRICONEX 3008
Hard-Numbers: Technical Specifications
- Onboard CPU: 3× Motorola MPC860 32-bit 50MHz electrically isolated independent processing cores
- Memory Layout: 16MB non-battery DRAM, 32KB lithium-backed SRAM for SOE retention, 6MB onboard Flash firmware storage
- TriBus Backplane Rate: 25Mbps with 32-bit CRC end-to-end error checking proprietary rack bus
- Front Port Isolation Rating: 500VDC opto-isolation for onboard RS232 debug terminal
- Operating Temperature: -40°C ~ +70°C continuous cabinet duty; -40°C ~ +85°C ambient storage rating
- Nominal Backplane Power Draw: 10.2W steady-state off 24VDC chassis bus (11~28.8VDC allowable input range)
- Safety Certification: IEC61508 SIL3, UL Class I Div2, ATEX Zone2 hazardous location approved
- SOE Clock Drift: ≤1.8s per 24hr, improved oscillator over original 3004/3005 CPUs
- Form Factor: Standard single chassis slot, full live hot-swap compatible on energized SIS rack
The Real-World Problem It Solves
Legacy 3004/3005 CPUs run hot in cramped unventilated cabinet bays; elevated internal heat accelerates lithium cell degradation and triggers random single-core dropout that spurs nuisance SIS trips. Older MP boards also carry looser SOE clock drift, making post-trip root-cause sequence mapping unreliable.
Where you’ll typically find it:
- Ethylene plant reactor ESD racks replacing end-of-life 3005 CPUs for high-temperature process cabinet upgrades
- Combined-cycle power boiler BMS cabinets handling furnace purge and fuel gas safety interlock logic
- Offshore platform natural gas F&G racks exposed to fluctuating ambient salt-laden cabinet heat
Revised internal thermal design and upgraded timing circuitry reduces premature battery failure and delivers consistent, audit-ready trip event logging through transient cabinet heat swings.
Hardware Architecture & Under-the-Hood Logic
Three fully segregated PCB processing lanes run isolated power and clock circuits to eliminate shared common-cause failure points; upgraded copper trace routing lowers internal junction heat versus prior-gen processors.
- All chassis I/O modules stream raw analog/digital field values over isolated TriBus simultaneously to each of three separate CPU lanes.
- Every core independently executes identical loaded safety program stored in onboard Flash, calculates discrete output setpoints separately.
- Dedicated hardware voting IC runs continuous 2oo3 value comparison, automatically discards outlier data from any single impaired core.
- Validated control commands route back across TriBus to corresponding output I/O modules to actuate field trip solenoids and shutdown devices.
- All logic state transitions get high-precision timestamped and locked into battery-backed SRAM for permanent nonvolatile SOE history storage.
- Front status LED grouping: solid green = all three cores healthy; amber = single core degraded; solid red = dual core fault requiring immediate spare swap.

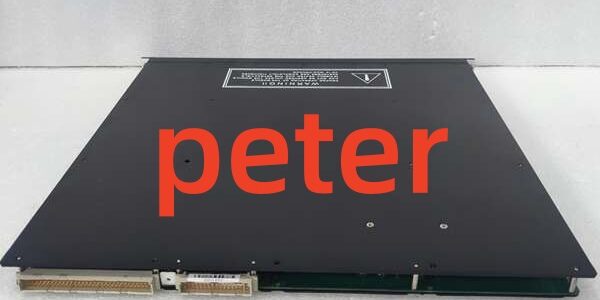

TRICONEX 3008
Field Service Pitfalls: What Rookies Get Wrong
Loading V11 Exclusive Firmware Onto V9.6 Locked 3008 HardwareNew technicians flash latest V11 TriStation firmware onto fixed-revision 3008 without matching chassis base software; partial TriBus sync failure creates intermittent missing I/O tags and random false fault alarms.
- Field Rule: Cross-check chassis installed TriStation major revision before uploading any CPU firmware onto 3008 modules.
Skipping Scheduled Onboard Lithium Cell Preventative ReplacementField crews ignore extended-but-fixed 7-year cell lifespan; depleted backup cell wipes all SOE archives during brief rack power sag, erasing critical shutdown investigation data.
- Quick Fix: Hand-mark module install date on edge label; swap internal lithium cell during scheduled annual unit turnaround downtime only.
Unisolated Grounded Service Laptop Plugged Directly Into Live RS232 PortTechnician connects mains-powered grounded laptop straight to front debug port without galvanic isolation; chassis-laptop ground potential difference spikes blow serial transceiver chips on MP PCB.
- Quick Fix: Use fully floating battery-only field laptop or opto-isolated RS232/USB converter for all live front-panel debug connections.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
