Component Snapshot At-a-Glance
- Model: 3004
- Alt. P/N: No direct OEM replacement; field upgrade cross to 3005 newer enhanced CPU
- Product Series: Triconex Tricon V9.6~V10 SIL3 TMR SIS main chassis platform
- Hardware Type: Rack-mount triple redundant main processor module (legacy MPM predecessor to 3005)
- Key Feature: Three independent MPC860 cores, 32KB lithium-backed SRAM for SOE event retention during full rack power loss
- Primary Field Use: Runs compiled TriStation safety logic, polls all chassis I/O, timestamps SIS trip events for refinery, power plant critical ESD racks

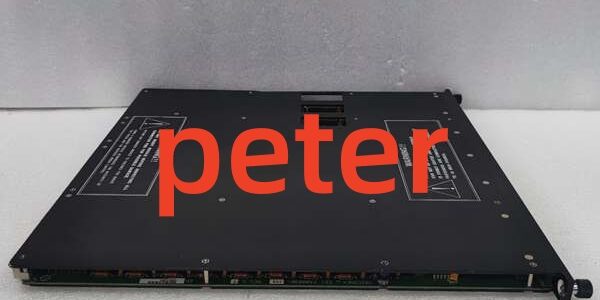

TRICONEX 3501E
Hard-Numbers: Technical Specifications
- Onboard CPU: 3× Motorola MPC860 32-bit 50MHz isolated TMR processing cores
- Memory Layout: 16MB non-battery DRAM, 32KB lithium-powered SRAM, 6MB onboard Flash firmware storage
- TriBus Backplane Rate: 25Mbps, 32-bit CRC error checked proprietary rack bus
- Backplane Isolation Rating: 500VDC opto-isolation for front panel RS232 debug port
- Operating Temperature: -40°C ~ +70°C continuous cabinet operation; -40°C ~ +85°C storage rating
- Nominal Backplane Power Draw: 9.8W steady-state from chassis 24VDC bus (11~28.8VDC operating range)
- Safety Certification: IEC61508 SIL3, UL Class I Div2, ATEX Zone2 hazardous area approved
- SOE Clock Accuracy: ≤2.5s total drift per 24hr, maintained via onboard coin lithium cell
- Form Factor: Single chassis slot, supports live hot-swap without SIS shutdown
The Real-World Problem It Solves
Older single-board non-redundant controllers suffer random CPU lockup from cabinet heat spike or transient surge, triggering unplanned SIS plant trip and costly feedstock waste. Non-buffered event memory loses all trip history on power drop, leaving zero root-cause data after shutdown.
Where you’ll typically find it:
- Combined-cycle power plant BMS racks managing boiler fuel trip and furnace purge interlock safety logic
- Mid-size chemical plant reactor ESD chassis controlling catalyst feed shutdown and overpressure blowdown loops
- Onshore natural gas compressor station F&G racks for compressor suction/discharge emergency isolation
Built-in TMR 2oo3 voting masks single core failure and battery-backed SRAM locks all SOE data through full rack blackout for post-fault troubleshooting.
Hardware Architecture & Under-the-Hood Logic
Three electrically segregated processor PCB lanes share no common power or clock rail to eliminate single-point common cause failure, core sync held under microsecond tolerance via dedicated cross-board sync lines.
- All chassis I/O modules stream raw analog/digital field data over isolated TriBus simultaneously to each of three separate CPU lanes.
- Every core independently executes identical compiled safety program from onboard Flash and generates unique calculated output values.
- Onboard hardware voting circuit runs continuous 2oo3 comparison, discards outlier readings from any single degraded core automatically.
- Validated control commands route back across TriBus to respective output I/O cards to energize/de-energize field trip solenoids.
- All logic state changes get timestamped and written into battery-backed SRAM for permanent SOE event logging.
- Front LED status: solid green = all three cores healthy; amber = single core degraded; solid red = dual core fault requiring immediate spare swap.
TRICONEX 3501E
Field Service Pitfalls: What Rookies Get Wrong
Cross-Installing V10 Firmware Onto V9.6 Locked 3004 HardwareNew tech flashes 3005-compatible V10 firmware onto legacy 3004 without verifying chassis software revision; partial bus handshake failure creates intermittent random I/O dropouts and spurious safety fault alarms.
- Field Rule: Match installed chassis TriStation software major revision before loading any CPU firmware onto 3004 modules.
Ignoring 5-Year Lithium Battery Service LifespanField crews skip scheduled battery replacement; depleted backup cell erases all SOE logs during brief rack power dip, losing critical trip root-cause data after unplanned shutdown.
- Quick Fix: Mark install date on module edge label; swap onboard lithium cell every 5 calendar years during planned unit downtime only.
Unisolated Grounded Laptop Connected Directly To RS232 Debug Port LiveTechnician plugs mains-powered grounded service laptop into front RS232 without isolation; cabinet-to-laptop ground potential surge fries onboard serial transceiver circuitry on CPU PCB.
- Quick Fix: Use floating battery-only field laptop or opto-isolated RS232-to-USB adapter for all live debug connections to 3004.
