Component Snapshot At-a-Glance
- Model: 3005
- Alt. P/N: No direct OEM alternate part; cross upgrade to 3006 newer generation CPU
- Product Series: Triconex Tricon V9/V10 SIL3 TMR SIS main rack platform
- Hardware Type: Rack-mounted triple redundant main processor module (MPM core CPU)
- Key Feature: Independent tri-core Motorola MPC860 CPUs with isolated TriBus backplane communication and onboard backup SRAM battery
- Primary Field Use: Executes deterministic ESD/F&G safety logic, polls all rack I/O and handles SOE timestamp logging for refinery, power plant SIS racks

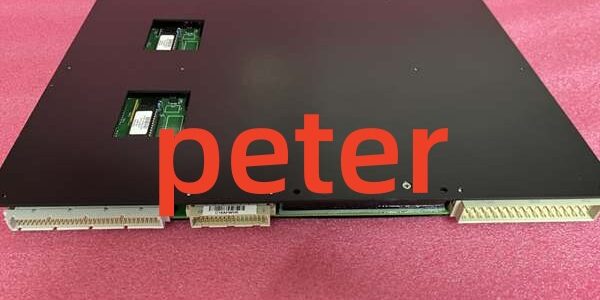

Triconex 3531E
Hard-Numbers: Technical Specifications
- Core Processor: 3× Motorola MPC860 32-bit 50MHz independent TMR CPU cores
- Onboard Memory: 16MB non-battery DRAM, 32KB battery-backed SRAM, 6MB onboard Flash PROM
- Backplane Bus Speed: 25Mbps TriBus with 32-bit CRC data validation, full galvanic isolation
- Isolation Rating: 500VDC isolation for onboard RS232 diagnostic serial port
- Operating Temperature: -40°C ~ +70°C continuous cabinet run; -40°C ~ +85°C storage limit
- Backplane Power Draw: 11.2W nominal steady-state bus consumption from chassis 24VDC supply
- Safety Rating: IEC61508 SIL3, UL Class I Div2, ATEX Zone2 hazardous location certified
- Diagnostic Clock Drift: Max 2.16 seconds per 24hr onboard TriClock drift, lithium coin cell powered
- Supported Interfaces: Opto-isolated RS232 debug port + TriBus backplane I/O bus
The Real-World Problem It Solves
Single-core controller hardware faults trigger full SIS trip and unplanned plant shutdown, costing large-scale process downtime and feedstock loss. Legacy non-TMR CPUs lack per-core fault diagnostics to flag pending component degradation pre-failure.
Where you’ll typically find it:
- Coal-fired utility boiler BMS/SIS main rack controlling furnace safety interlock and drum protection logic
- Refinery FCC unit ESD core rack governing reactor feed and regenerator emergency shutdown loops
- Offshore gas platform F&G fire/gas safety rack managing platform blowdown and compressor trip functions
Triple parallel core voting suppresses single-core faults entirely and pre-alerts technicians to degraded lanes during monthly site proof tests.
Hardware Architecture & Under-the-Hood Logic
Three fully segregated PCB processor lanes run identical safety code independently; no shared clock or power rail across redundant cores to avoid common-cause failures.
- Backplane TriBus pulls raw digital/analog process data from all rack I/O modules into each of three separate CPU lanes simultaneously.
- Each core executes identical user safety logic via TriStation compiled code and outputs independent calculated trip values.
- Onboard hardware 2oo3 voting circuit compares three computed results, discards outlier values from faulty single CPU lane.
- Validated control commands route back across isolated TriBus to corresponding output I/O cards to drive field solenoids/interlocks.
- Internal TriClock timestamps all state changes for SOE event logging stored inside battery-backed SRAM.
- Front panel LED bank: green = all three cores healthy; amber = single degraded core detected; solid red = dual-core fault requiring immediate spare swap.

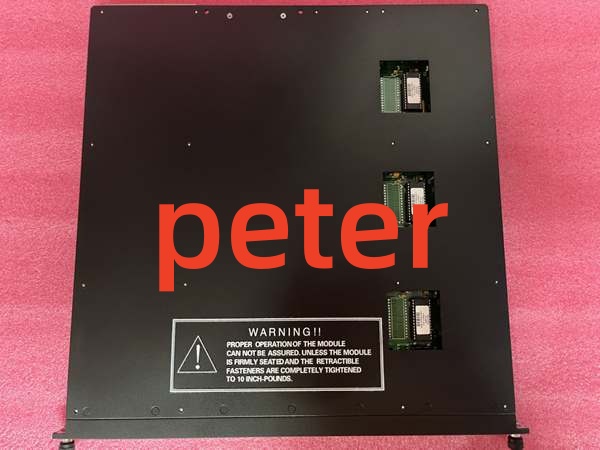

Triconex 3531E
Field Service Pitfalls: What Rookies Get Wrong
Early Battery Depletion From Continuous Rack Hot-Swap Without Power ManagementNew technicians leave chassis fully powered while removing/reseating adjacent I/O cards repeatedly; frequent backplane voltage spikes drain onboard SRAM backup lithium battery months ahead of rated service life.
- Quick Fix: Note battery install date on module edge label; replace every 5 calendar years regardless of shelf time, pull spare CPU offline for battery swap during scheduled downtime only.
Firmware Version Mismatch Between 3005 CPU & Rack I/O Card FamiliesField crews install newer v10 firmware onto legacy V9 chassis 3005 without cross-checking existing I/O card firmware revisions; intermittent TriBus communication drops trigger random spurious safety fault flags.
- Field Rule: Match CPU firmware major revision number to installed I/O module series before flashing any firmware updates to live SIS rack.
Improper Grounding of RS232 Diagnostic Laptop During Live DebugTechnician connects unisolated grounded service laptop directly to module RS232 port while cabinet chassis sits on uneven insulated flooring; potential ground difference induces transient surge damaging serial transceiver circuitry on CPU PCB.
- Quick Fix: Use isolated USB-to-RS232 adapter or battery-only floating field laptop for all live 3005 diagnostic serial connections.
