Backplane Power Draw:5.8W steady-state rack bus consumption
Signal Response: OFF→ON ≤8ms, ON→OFF ≤15ms input latency
Diagnostic Coverage: 100% channel open-loop / missing field power fault detection onboard
Certifications: IEC61508 SIL3, UL Class I Div2, ATEX Zone2 hazardous location approved
Unit Weight:1.51kg fully assembled card
Humidity Range: 5%~95%RH non-condensing cabinet environment only
The Real-World Problem It Solves
Non-diagnostic DI hardware leaves open field wiring faults hidden until a safety trip fails on demand, a catastrophic risk on critical shutdown circuits. Ungrouped standalone channel cards also inflate field wiring labor costs when bundling multi-switch common supply runs.
FCCU refinery SIS cabinets for reactor feed shutdown valve critical position feedback
Coal-fired power plant BMS racks for boiler fuel shutoff safety interlock contact inputs
Built-in loop diagnostics catch broken field wiring during routine proof tests and eliminate unplanned SIS trip failures from hidden open circuits.
Hardware Architecture & Under-the-Hood Logic
No local onboard microcontroller; three fully isolated opto sampling PCB lanes run parallel for TMR 2oo3 hardware voting, with dedicated diagnostic injection circuitry hardwired to each input bank.
Field 48V contact wiring lands on dedicated grouped common termination base via ribbon harness per 4-channel bank.
Each raw input signal splits equally across three independent optocoupler sampling legs for separate voltage measurement across all TMR paths.
Periodic low-amplitude diagnostic pulse injects into each channel to check for open wire or missing field supply without altering contact state.
Fixed hardware comparator executes 2-out-of-3 voting to filter transient EMI and single TMR leg component drift faults.
Valid binary channel status plus diagnostic fault flags transmit over proprietary TriBus backplane to rack main CPU.
Front panel LED: solid green = closed valid contact, solid red = detected open wire / field supply loss per channel.

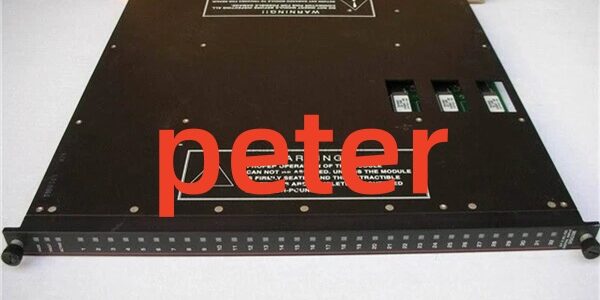

TRICONEX 3502E
Field Service Pitfalls: What Rookies Get Wrong
Crossing Common Bank Return Wiring Between Separate 4CH GroupsNew tech ties field negative returns across two different module common banks, creating uneven ground offset and random intermittent open-wire diagnostic false alarms.
Quick Fix: Strictly isolate each of 8 common return groups; never cross-bank field return wiring on termination strips.
Disabling Onboard Diagnostics To Clear Persistent Red Fault LightsField maintenance masks open-circuit alarms via system software instead of tracing broken field cables, leaving critical safety loops blind to future wire breaks.
Field Rule: Never disable card diagnostics; red fault LED always requires field wiring inspection and continuity check during scheduled downtime.
Live Hot Swap With Unisolated Field Power Still EnergizedTechnician pulls powered 3502E while field 48V feed remains live on termination base, backfeed voltage fries internal diagnostic pulse generation circuits and permanently disables channel fault detection.
Quick Fix: Cut field bank supply before card removal; verify zero field voltage at terminals via multimeter prior to rack slot re-seating.
