Component Snapshot At-a-Glance
- Model:
- Alt. P/N: No direct factory alternate; length variants marked with trailing dash suffix
- Product Series: Foxboro I/A Series FBM2xx family I/O subsystem

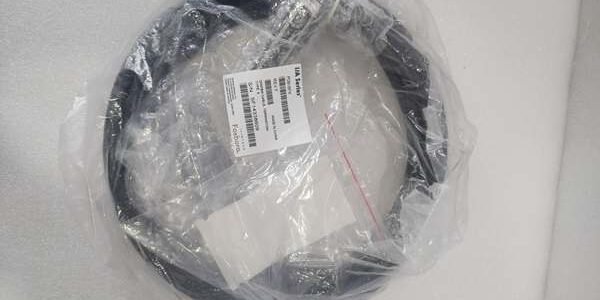

- Hardware Type: Factory pre-crimped shielded ribbon interconnect cable assembly
- Key Feature: Molded keyed dual-end connectors preventing misplug into mismatched FBM/terminal base
- Primary Field Use: Creates fixed wiring path between rear FBM card edge header and cabinet field terminal assembly to eliminate loose hand-terminated wiring faults.
Hard-Numbers: Technical Specifications
- Protocol Support: Passive analog/digital signal transit for Nodebus-linked FBM I/O signals
- Port Count: 1 x FBM card-side keyed male connector + 1 x terminal block female header per single harness
- Wire Gauge: 24AWG stranded copper internal conductors
- Operating Temperature: -20°C ~ +70°C continuous cabinet runtime; -55°C ~ +85°C storage range
- Isolation Rating: Overall foil braid shielding for bulk EMI suppression; no per-channel galvanic isolation
- Power Draw: Zero active power consumption, pure passive signal routing component
- Shield Spec: Full coverage tinned copper braid + outer PVC jacket, single-point ground termination only
- Standard Length: Factory default 0.3m, custom 0.5m/1m field-ordered lengths available
The Real-World Problem It Solves
Field technicians building custom point-to-point wiring for FBM cards introduce stray opens and cold crimps; vibration from nearby blowers and MCC motors triggers intermittent loss of analog/digital I/O across boiler and refining unit loops. Random spiking PV readings fill controller fault logs and force unplanned loop bump tests every shutdown cycle.Where you’ll typically find it:
- Coal-fired boiler DCS marshalling racks linking FBM201 AI cards to field terminal strips
- Refinery distillation unit auxiliary cabinet connecting FBM203 RTD input modules to marshalling terminals
- Offshore FPSO compact control shelter dense FBM rack layouts minimizing messy loose field wiring
Pre-built molded cable cuts field wiring error rate and stabilizes long-term I/O signal integrity across vibration-prone cabinet environments.
Hardware Architecture & Under-the-Hood Logic
This is a fully passive wiring assembly with no embedded semiconductors or signal conditioning chips; internal conductors map 1:1 pinout between FBM rear header and matching terminal block footprint to preserve factory signal routing layout.
- Molded keyed connector locks onto FBM card rear edge to block reverse or cross-card misinsertion.
- Internal multi-conductor ribbon wires run full length inside continuous braided shielding to block radiated cabinet EMI.
- Opposite-end factory crimped header snaps directly into matching I/O terminal base pin receptacles.
- Outer PVC jacket constrains wire movement to stop conductor fatigue from cabinet thermal cycling and mechanical vibration.
- Braided shield tail extends out one cable end for single-point chassis ground lug attachment at terminal rack ground bar.
Field Service Pitfalls: What Rookies Get Wrong
Force Non-Matching FBM Card Into Keyed Connector
New tech pries incompatible FBM variant into keyed cable end; plastic pin alignment ribs shear off internal header pins creating hidden intermittent open circuits that only fail under heat expansion.
- Field Rule: Match printed FBM part number on card label to specified harness only; never pry misaligned connectors into place.
Ground Cable Shield At Both Terminal And FBM Cabinet Ends
Dual-ended shield grounding creates circulating ground loop currents; induced AC noise modulates 4–20mA analog readings causing unstable process variable drift.
- Quick Fix: Terminate braided shield to ground bar exclusively at terminal block rack side; leave FBM card end shield floating ungrounded.
Route Parallel Within 10cm Of 480V MCC Power Runs
Unshielded makeshift routing next to high-current feeders bypasses cable’s EMI design; VFD switching noise corrupts low-level RTD and thermocouple millivolt inputs.
- Field Rule: Separate all harness runs minimum 25cm from AC power cabling inside cable trays.
Commercial Availability & Pricing Note
Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
