Component Snapshot At-a-Glance

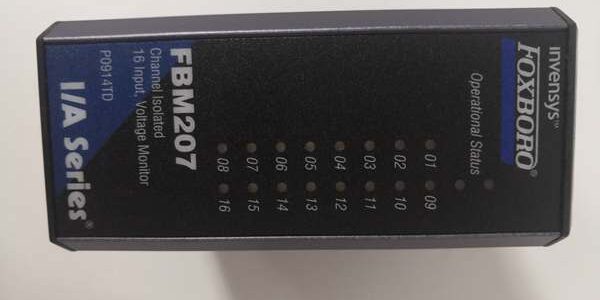

- Model: | Factory part number: P0914TD
- Alt. P/N: FBM207B, FBM207C (variant hardware for different field voltage ratings)
- Product Series: Foxboro I/A Series DCS FBM fieldbus module family
- Hardware Type: Single-width rack mount isolated discrete input fieldbus module
- Key Feature: Per-channel galvanic isolation, independently configurable input debounce filtering per point
- Primary Field Use: Captures MCC breaker status, valve limit switches and motor auxiliary contact signals into I/A DCS control database
Hard-Numbers: Technical Specifications
- Protocol Support: Proprietary 2Mbps redundant Nodebus to FCM/DNBT backplane transceiver
- Port Count: 16 isolated field input channels; rear gold-finger backplane connector only
- Input Logic Threshold: Logic 1 = 15~60VDC, Logic 0 = 0~5VDC nominal dry contact sensing
- Operating Temperature: 0°C ~ +60°C continuous cabinet duty; -40°C ~ +85°C storage range
- Isolation Rating: 1500VAC channel-to-channel & field-to-backplane opto-isolation per individual input
- Power Draw: Max 3.0W steady operating load, powered entirely via I/A baseplate 24VDC backplane rail
- Debounce Settings: Software selectable 0/4/8/16/32ms per single input channel from workstation config
- Physical Spec: 45(W)×104(D)×102(H)mm, unit weight 284g standard single slot footprint
- Hot-Swap Rating: Certified live card pull/replace on energized baseplate without rack shutdown
The Real-World Problem It Solves
Non-isolated multi-channel DI cards let field-side surge or shorted wiring take out entire 16-point bank; transient spikes from VFD motor switching cascade across unseparated inputs and flood controller diagnostics with false open/closed alarms during unit startup cycles. Unfiltered raw contact chatter from worn mechanical limit switches generates constant spurious status toggles forcing constant operator screen oversight.Where you’ll typically find it:
- Coal-fired power boiler MCC cabinet tracking feeder breaker auxiliary contact open/close feedback
- Refinery crude distillation rack monitoring shutoff valve limit switch discrete status signals
- Offshore FPSO pump module control shelter logging pump run/stop auxiliary contact inputs
Per-channel isolation plus configurable filter cuts cross-channel fault bleed and eliminates mechanical contact bounce false alarms without reworking field wiring.
Hardware Architecture & Under-the-Hood Logic
This PCB houses independent optocoupler isolation per input plus shared bus ASIC for Nodebus communication; no common field ground ties across 16 channels to block fault propagation between disparate field wiring runs.
- External contact/DC voltage feeds each channel’s front-end current limiting resistor before hitting dedicated opto-isolator chip.
- Isolated digital logic samples raw input state and applies user-programmed software debounce timing to suppress mechanical bounce.
- Onboard ASIC aggregates all 16 channel status data into standard Nodebus formatted serial packets.
- Rear edge gold fingers transfer compiled digital data across backplane to rack FCM/DNBT communication card.
- Front panel LED array lights per-channel fault/active status for quick in-cabinet point troubleshooting without workstation access.
Field Service Pitfalls: What Rookies Get Wrong
Mix Multiple Field Supply Voltages On Single Terminal Base
New technicians wire 24VDC and 120VAC field contacts onto identical TA base terminals; mismatched potential blows channel optocoupler isolators one by one and creates intermittent floating input faults.
- Field Rule: Dedicate one TA terminal assembly exclusively to single nominal field voltage per installed card.
Leave Debounce Set To Zero MS On Mechanical Limit Switch Inputs
Default zero filter setting passes every contact bounce pulse straight to DCS; worn valve switches trigger dozens of false status changes daily filling event logs with useless toggle alarms.
- Quick Fix: Set 8ms or 16ms software debounce for all mechanical contact inputs; reserve 0ms only for solid-state transistor outputs.
Ignore Single-Point Shield Ground On Field Input Cable
Dual-ended grounding of multi-pair input wiring induces ground loop AC noise; induced hum modulates contact status and causes random intermittent open indications across hot cabinet temperature swings.
- Field Rule: Terminate cable shield only at DCS marshalling rack end; field device side shield must remain floating ungrounded.
