Field Engineer’s Notes (From the Trenches)

Watch Out for Inductive Kickback and Backplane Oxidation.

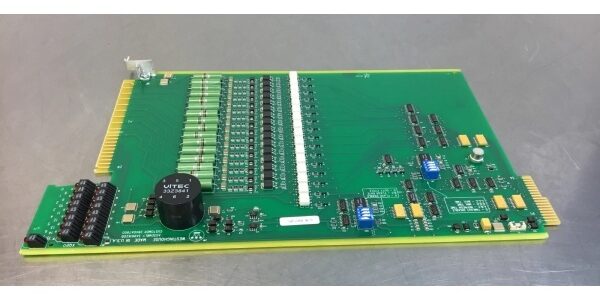

When using digital output cards like the 3A99162G01 to drive inductive loads (such as relay coils, motor contactors, or solenoid valves), always ensure you have proper flyback diodes or snubber circuits installed across the field devices. Without them, the voltage spike generated when the coil de-energizes can arc across the card’s internal output transistors, permanently welding them shut or blowing the channel.

Additionally, because this is a legacy Westinghouse card, the backplane edge connectors (gold fingers) are highly prone to oxidation after decades of service. If you’re seeing intermittent output faults or channels that won’t toggle, power down the chassis, pull the card, and gently clean the edge connectors with a high-grade electronics contact cleaner and a soft eraser before reseating it firmly.

Real-World Applications

• Power Plant Burner Management System (BMS):
  In fossil fuel power plants running WDPF, the 3A99162G01 is frequently used to physically actuate the fuel shut-off valves and igniter transformers in the Burner Management System. Its high stability and anti-interference design are critical here, ensuring that safety logic commands instantly and reliably cut off fuel flow during a furnace purge or flame failure.
• Water & Wastewater Pump Station Control:
  In municipal water treatment facilities, this module is commonly found interfacing with Motor Control Centers (MCCs). It receives start/stop commands from the Ovation controller to energize the contactors for massive raw water intake pumps and aeration blowers, providing robust and reliable control over the plant’s core hydraulic processes.

High-Frequency Troubleshooting FAQ

Q: The DCS is commanding an output on, but the field device (relay/valve) isn’t energizing. How do I troubleshoot the 3A99162G01?
A: First, check the onboard LED for the specific output channel. If the LED is lit but the field device isn’t energized, the issue is in the field wiring, an external fuse, or the field device itself (use a multimeter to check for voltage at the terminal block). If the LED is not lit, verify the logic command in the DCS. If the logic is forcing the output on but the LED remains off, the card’s internal output driver for that channel has likely failed and the card needs to be replaced.

Q: Can I directly substitute the 3A99162G01 with other Westinghouse output cards?
A: Proceed with extreme caution. Westinghouse part numbers often have subtle hardware and firmware changes between revisions. Dropping an unverified revision into a chassis slot can cause logic mismatches or backplane communication faults. Always verify the exact part number against your system’s hardware manual or existing chassis configuration before swapping.

Q: Where can I find the official datasheet or manual for the 3A99162G01?
A: Because this is a legacy Westinghouse part number, official PDFs are notoriously hard to find on the open web. Your best bet is to look for the “WDPF I/O Module Reference Manual” series. If you are performing a replacement, always double-check the physical wiring and channel mapping against your plant’s existing marshalling drawings.

Commercial Availability & Pricing

Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
