Field Engineer’s Notes (From the Trenches)

Don’t Ignore Heat Dissipation and Parallel Redundancy.

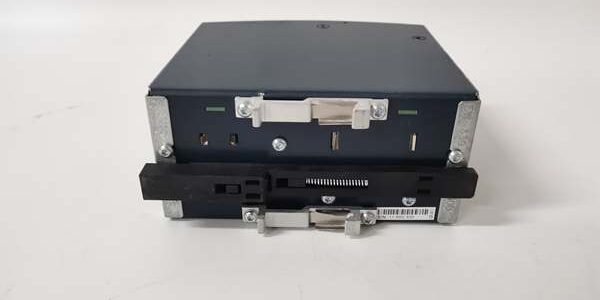

Although the 1X00781H01L uses natural convection cooling and runs cooler than older models, it still generates heat. When installing multiple modules side-by-side on a DIN rail, always leave at least 20-40mm of vertical and horizontal spacing between units. Cramming them tightly together will trap heat, significantly shortening the module’s lifespan and potentially triggering thermal shutdowns during summer.

Also, if you are setting up a redundant power supply configuration (using two of these modules in parallel), ensure your load-sharing wiring is perfectly balanced. Uneven current sharing will cause one module to carry the majority of the load, leading to premature failure. Always verify the output voltage of both modules is trimmed to the exact same value before connecting them in parallel.

Real-World Applications

• Power Plant DCS Controller Power:
  In a large fossil fuel or combined-cycle power plant, the 1X00781H01L is the standard power source for the Ovation controllers and I/O bases. It takes the plant’s 110VDC or 220VAC station battery supply and converts it to the precise 24VDC required by the Ovation processors. Its ability to ride through voltage sags ensures the boiler and turbine controls never lose power, even when large motors are starting elsewhere in the plant.
• Oil & Gas Remote Terminal Unit (RTU) Power:
  In remote oil fields or pipeline compressor stations, grid power is often dirty and unstable. This module’s wide input voltage range (90-264VAC) allows it to accept fluctuating generator power while still providing a clean, regulated 24VDC output to power sensitive gas chromatographs, flow computers, and communication radios, ensuring zero data loss in custody transfer applications.

High-Frequency Troubleshooting FAQ

Q: The 1X00781H01L output voltage is zero and the LED is off. What is the issue?
A: First, use a multimeter to verify that the upstream AC or DC input power is present and within the 90-264VAC / 100-370VDC range. If input power is good, check for a tripped external circuit breaker or a blown fuse on the input wiring. If input power is present but the module is dead, the internal power supply has likely failed and needs to be hot-swapped with a spare.

Q: Can I use the 1X00781H01L to power field instruments directly?
A: Yes, absolutely. As long as your field devices (transmitters, positioners, solenoids) operate on 24VDC and the total current draw does not exceed the module’s 10A rating, it is perfectly suited for this. Just ensure you account for the inrush current of inductive loads (like solenoid valves) when sizing your power budget.

Q: My module is running extremely hot to the touch. Is this normal?
A: The 1X00781H01L is designed with a high thermal conductivity aluminum shell, so it is supposed to feel warm—it is dissipating heat away from the internal components. However, if it is too hot to keep your hand on, or if it is triggering an over-temperature shutdown, check your cabinet cooling fans and ensure the module has adequate spacing for natural convection airflow. Also, verify you aren’t running the module at 100% load continuously; derating to 80% is a good best practice for longevity.

Commercial Availability & Pricing

Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
