Customer Value & Operational Benefits

High Precision & Operational Stability

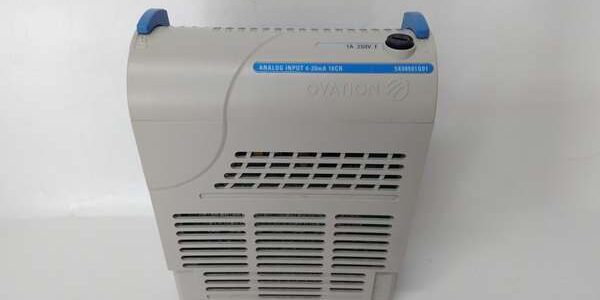

The 5X00501G01 utilizes advanced hardware design to achieve highly reliable analog signal processing. Its powerful anti-interference capabilities ensure that critical process variables—such as boiler drum level or reactor pressure—are reported accurately to the control room, allowing operators to maintain tight process stability and product quality.

Flexible Configuration & Easy Maintenance
Thanks to its modular design, the 5X00501G01 allows engineers to easily configure and expand I/O points based on actual plant needs. This modularity also greatly improves equipment maintainability; a faulty channel or card can be rapidly identified via onboard LEDs and replaced with minimal downtime, significantly reducing Mean Time To Repair (MTTR).

Seamless Legacy System Support
For plants still running Westinghouse or Ovation architectures, sourcing verified units like the 5X00501G01 is a lifeline. It allows facilities to extend the life of their existing control strategies by decades without requiring a financially crippling and operationally risky full DCS migration.

Field Engineer’s Notes (From the Trenches)

Watch Your Loop Power, Grounding, and Revisions.
The most common issue with analog I/O cards like the 5X00501G01 isn’t the card itself, but the field loop wiring. If you’re getting erratic readings or a valve is hunting, first check your 24VDC loop power supply. A sagging or noisy power supply will directly corrupt your analog signal.

Also, ensure your analog shield is grounded at the cabinet end ONLY. Grounding the shield at both the cabinet and the field device creates a ground loop, which induces 60Hz noise onto your signal. Finally, always double-check the part number revision. Westinghouse/Emerson modules often have subtle hardware changes between revisions, and dropping an unverified card into a chassis slot can cause logic mismatches or backplane communication faults.

Real-World Applications

• Power Plant Boiler Feedwater Control:
  In fossil fuel power plants running Ovation, the 5X00501G01 is frequently used to interface with differential pressure (DP) transmitters that measure boiler drum level, or to drive the massive feedwater control valves. Its precise analog processing ensures the controller receives accurate level readings and can modulate valves perfectly to prevent dangerous boiler trips.
• Petrochemical Process Monitoring:
  In chemical processing facilities, this module connects to temperature, pressure, and flow transmitters outputting standard analog signals. The Ovation controller uses this data for real-time process monitoring and safety interlocks. The module’s reliability ensures that expensive raw materials are processed safely, preventing recipe errors and financial loss.

High-Frequency Troubleshooting FAQ

Q: My analog reading on the 5X00501G01 is erratic or pegging high/low. How do I troubleshoot?
A: A reading pegging high (over-range) usually indicates an open loop (broken wire or blown fuse). A reading pegging low (under-range) often points to a short circuit in the field wiring. Use a multimeter to measure the actual signal at the module’s terminal block to isolate whether the issue is with the field device/wiring or the card’s internal circuitry.

Q: Can I directly substitute the 5X00501G01 with other Westinghouse analog cards?
A: Proceed with extreme caution. Westinghouse part numbers often have subtle hardware and firmware changes between revisions. Dropping an unverified revision into a chassis slot can cause inaccurate readings or backplane communication faults. Always verify the exact part number against your system’s hardware manual or existing chassis configuration before swapping.

Q: Where can I find the official datasheet or manual for the 5X00501G01?
A: Because this is a legacy Westinghouse part number, official PDFs are notoriously hard to find on the open web. Your best bet is to look for the “Ovation I/O Module Reference Manual” series. If you are performing a replacement, always double-check the physical wiring and channel mapping against your plant’s existing marshalling drawings.

Commercial Availability & Pricing

Please note: The listed price is not the actual final price. It is for reference only and is subject to appropriate negotiation based on current market conditions, quantity, and availability.
