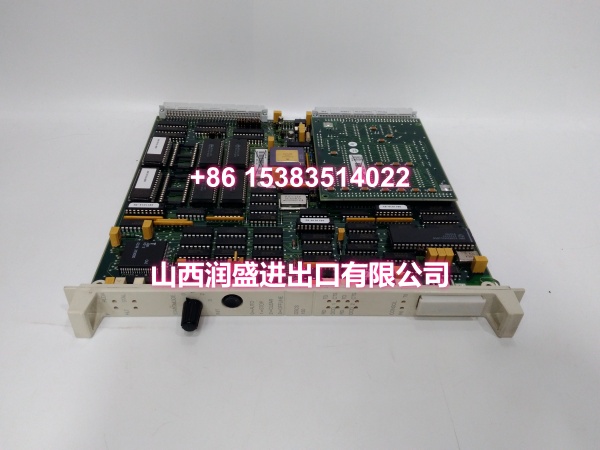

Product Core Brief
- Model: DSDP140A
- Brand: ABB
- Series: Advant Master S100 I/O
- Core Function: Complete interface module for one positioning loop within the ABB Advant Master S100 I/O system, combining pulse inputs, digital I/O, and an analog output for position transducer and actuator control.
- Product Type: Positioning Interface Module
- Key Specs: 3 pulse inputs | 24 V DC DI/DO | ±10 V / ±20 mA analog output | 11-bit AO resolution | S100 rack plug-in format
- Condition: New Original / New Surplus
Key Technical Specifications
- Function: Single positioning loop interface for Advant Master S100 I/O
- Compatible systems: ABB Advant Master, Advant Controller 400 series (AC 410 / AC 450)
- Pulse inputs: 3 channels (A, B, STROBE), ±15 mA, max 80 kHz
- Digital I/O: 24 V DC DI/DO, DO max 150 mA
- Analog output: ±10 V / ±20 mA, 11-bit resolution
- Installation: S100 I/O rack plug-in module with connection unit
- Origin: varies by production batch
Product Introduction (No Fluff)
This is an ABB Advant Master S100 I/O positioning interface module. It provides a complete interface for one positioning loop, combining pulse encoder inputs, digital I/O, and an analog output in a single S100 rack module.
The practical value is integration. Instead of assembling separate pulse counter, digital I/O, and analog output cards for a single positioning application, DSDP140A consolidates them into one module. It is commonly used with position transducers, valve actuators, and motor positioning applications in legacy Advant Master installations. For plants maintaining mature S100 systems, this module is a targeted spare for positioning loop continuity.
QA & Testing SOP (Dynamic & Transparent)
This is a multi-function positioning module. Testing covers visual, mechanical, and basic electrical verification—not full loop calibration.
- Incoming inspection — Verify model DSDP140A. Check for cracked PCB, damaged edge connector, corrosion, and label consistency.
- Connector inspection — Examine backplane mating contacts and front-panel connectors (pulse, DI/DO, AO) for bent pins, oxidation, or burn marks.
- Power-up test — Install in a compatible S100 rack, apply system power, and verify normal LED behavior without immediate fault indication.
- Signal spot check — Where test equipment allows, verify pulse input response, digital I/O switching, and analog output range.
- Packing — Place in anti-static packaging with rigid support to protect connectors during transit.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Confirm the exact S100 slot and connection unit. DSDP140A requires a compatible S100 termination/connection unit. Using the wrong TU can misroute pulse, DI/DO, or AO signals.
❗ Do not confuse with DSDP170. DSDP170 supports four position transducers with higher pulse frequency (up to 2.5 MHz), while DSDP140A handles one positioning loop with 80 kHz pulse input. They are not interchangeable.
❗ Verify pulse input wiring polarity. The A, B, and STROBE channels must match the encoder phasing. Reversed A/B wiring causes incorrect position counting.
❗ Check AO range configuration. The analog output supports ±10 V or ±20 mA. Confirm the controller configuration matches the field device requirement before commissioning.
Replacement steps
- Pre-install: Confirm the S100 slot position and connection unit type. Back up the controller configuration.
- Removal: If hot-swap is supported by the system configuration, follow ABB procedures. Otherwise, remove during a controlled shutdown.
- Install: Seat the module firmly into the S100 rack and reconnect the termination unit wiring.
- Verification: Check LED status, verify pulse counting, confirm DI/DO operation, and validate analog output for at least 15 minutes.
Technical FAQ
Is this an OEM genuine ABB part? We supply new original and new surplus stock depending on availability. If sealed original packaging is required, confirm before ordering.
Does DSDP140A need configuration? Yes. The module must be configured in the Advant Master controller hardware configuration. For a like-for-like replacement, existing configuration can usually be retained.
Can DSDP140A replace DSDP170? No. DSDP140A supports one positioning loop with 80 kHz pulse input, while DSDP170 supports four position transducers with up to 2.5 MHz pulse frequency. They serve different application scales.
What connection unit does it require? It requires a compatible S100 termination/connection unit. The exact TU type depends on wiring style and application. Confirm against your existing rack documentation.
Is it in stock and ready to ship? Inventory changes daily. Send the required quantity and destination, and we will confirm availability, lead time, and shipping options.
