Product Core Brief

• Model: DSAI146 3BSE007949R1
• Brand: ABB
• Series: Advant OCS / S100 I/O Series
• Core Function: High-density RTD (Resistance Temperature Detector) analog input module, converting temperature signals from Pt100 sensors into digital data for process control systems.
• Product Type: RTD Input Module / Analog Input Unit
• Key Specs: 31 RTD input channels | Pt100 (3-wire) compatible | Input range −100°C to +320°C or −200°C to +640°C | Designed for Advant OCS/S100 systems
• Condition: New Original / New Surplus

Key Technical Specifications

• Product Type: RTD (Resistance Temperature Detector) Analog Input Module
• Brand: ABB
• Model Number:
• Order Code: 3BSE007949R1
• Series: Advant OCS / S100 I/O System
• Input Channels: 31 isolated RTD input channels — one of the highest-density temperature input modules in the Advant OCS lineup
• Sensor Compatibility: Pt100 RTD sensors, 3-wire configuration
• Input Range: Configurable for −100°C to +320°C or −200°C to +640°C depending on application requirements
• Measurement Accuracy: High-precision temperature measurement suitable for process control applications requiring reliable temperature monitoring
• Isolation: Channel-to-channel and channel-to-ground isolation for noise immunity in electrically noisy industrial environments
• Operating Voltage: 24V DC (supplied from the Advant OCS/S100 backplane)
• Communication: Interfaces with the Advant OCS/S100 system via the module bus; no standalone communication ports (integrates through the system controller)
• Mounting Method: DIN rail or rack-mounted installation within the Advant OCS/S100 system chassis
• Typical Applications: Process temperature monitoring in chemical and petrochemical plants; reactor and vessel temperature control in pharmaceutical manufacturing; heat exchanger and boiler temperature monitoring in power generation; HVAC and building automation temperature sensing; food and beverage process temperature control; continuous temperature monitoring in oil and gas pipelines and storage tanks



Product Introduction

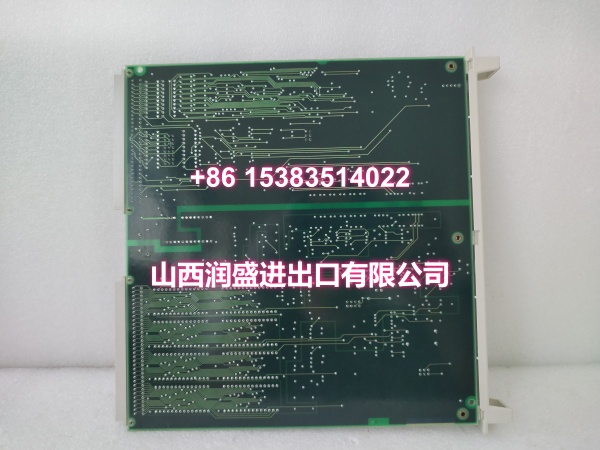

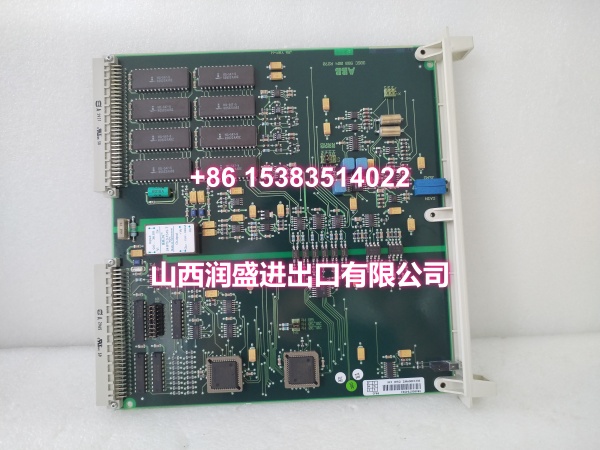

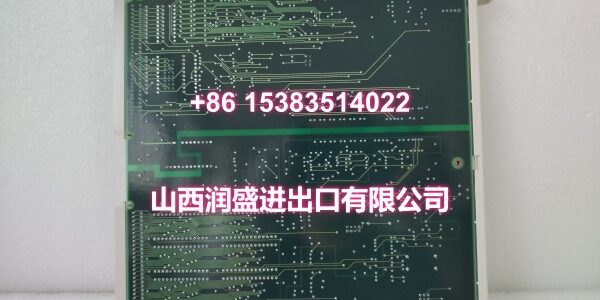

The ABB DSAI146 3BSE007949R1 is a 31-channel RTD input module from ABB’s Advant OCS / S100 I/O system, purpose-built for high-density temperature monitoring in process control applications. Unlike general-purpose analog input modules that handle mixed signal types, the DSAI146 is specialized for Pt100 RTD sensors — the industry-standard temperature transducer for process industries where accuracy, stability, and long-term drift performance matter.

What makes the DSAI146 stand out is its channel density. With 31 RTD inputs in a single module slot, it dramatically reduces the number of I/O slots required for large-scale temperature monitoring applications. In a chemical reactor with dozens of temperature measurement points, or a boiler system with multiple thermocouple zones, replacing multiple 8-channel modules with a single DSAI146 saves chassis space, simplifies wiring, and reduces the number of spare modules you need to stock. For system integrators designing or maintaining Advant OCS installations, this density advantage translates directly into lower installation cost and faster commissioning.

The 3-wire Pt100 configuration is another practical advantage. Three-wire RTD wiring compensates for lead wire resistance, eliminating the measurement error that 2-wire configurations introduce over long cable runs. In process plants where temperature sensors may be hundreds of meters from the control room, this compensation is essential for maintaining measurement accuracy without requiring expensive 4-wire installations.

For MRO procurement teams maintaining legacy Advant OCS or S100 systems, the DSAI146 is a critical spare. These systems have been deployed in power plants, chemical facilities, and manufacturing operations for decades, and finding genuine replacement I/O modules becomes increasingly difficult as ABB transitions to newer platforms. Having a verified genuine DSAI146 on hand means you can replace a failed temperature input module during a planned shutdown without waiting for long-lead OEM orders — avoiding unplanned downtime that can cost tens of thousands per hour in continuous process operations.

QA & Testing SOP

Every unit undergoes a standardized verification process before shipment:

• Visual & Anti-Counterfeit Check: Inspect the module housing for proper ABB branding and part number marking (DSAI146, 3BSE007949R1). Check for physical damage including cracked PCB, damaged connector pins, burnt components, or signs of moisture ingress (corrosion, white residue on contacts).
• Connector Pin Inspection: Examine the backplane connector pins for straightness, corrosion, or bending. Bent pins can cause intermittent connections or short circuits when inserted into the Advant OCS chassis.
• Channel Continuity Test: Verify electrical continuity on all 31 input channels to confirm no open circuits or short circuits exist in the input stage.
• Resistance Measurement Accuracy Test: Apply precision resistance values corresponding to known temperatures (e.g., 100Ω for 0°C, 138.5Ω for 100°C on a Pt100 sensor) and verify that the module reports the correct temperature value within specification.
• Isolation Test: Verify channel-to-channel and channel-to-ground isolation resistance meets specification (typically >100MΩ at 500V DC) to ensure proper noise immunity.
• 3-Wire Compensation Verification: Test the module’s lead wire resistance compensation function by applying unbalanced lead resistances and verifying that the temperature reading remains accurate.
• Backplane Communication Test: Insert the module into a test Advant OCS chassis and verify that the controller recognizes the module, reads channel data correctly, and reports no fault codes.
• Anti-Static & Mechanical Protection: After passing all tests, the module is placed in anti-static shielding with protective caps on connectors. It is then packed in rigid cardboard with foam cushioning to prevent mechanical shock and ESD damage during transit.

Installation Pitfalls & Guide

Real-World Risks When Replacing This Module:

❗ Incorrect Sensor Wiring Configuration: The DSAI146 is designed for 3-wire Pt100 sensors. Connecting a 2-wire or 4-wire RTD without proper configuration will introduce measurement errors. If replacing a module in an existing system, verify the existing sensor wiring matches the 3-wire configuration before commissioning the new module.

❗ Lead Wire Resistance Mismatch: While the 3-wire configuration compensates for lead resistance, excessive lead resistance (e.g., from very long cable runs with undersized wire) can exceed the module’s compensation range. Verify that the total lead resistance is within the module’s specification (typically <50Ω per lead) before installation.

❗ Channel Addressing Conflict: In the Advant OCS/S100 system, each module slot has a fixed address. Installing the DSAI146 in the wrong slot can cause the controller to misidentify the module type, leading to incorrect data mapping or system faults. Always verify the slot assignment matches the system configuration before inserting the module.

❗ Hot-Swap Risk: While some Advant OCS modules support hot-swapping, the DSAI146 may not. Removing or inserting the module while the system is powered can cause transient signals, data corruption, or damage to the module or backplane. Always follow the manufacturer’s hot-swap procedure — if uncertain, power down the chassis before replacement.

❗ Ground Loop Issues: If RTD sensors are grounded at the process end and the module chassis is also grounded, ground loops can introduce measurement noise. Verify the system grounding scheme and use isolated sensors or isolation barriers if ground loops are suspected.

❗ Calibration Drift After Replacement: Even with a genuine replacement module, the new module may have slightly different calibration characteristics than the old one. After installation, verify temperature readings against a known reference (e.g., a calibrated handheld thermometer at a test point) and adjust the controller scaling if necessary.

4-Step Replacement Guide:

1. Pre-Install: Identify the failed module slot and document the existing wiring configuration (which terminals connect to which sensors). Back up the current system configuration and temperature scaling parameters from the Advant OCS controller. If possible, schedule the replacement during a planned maintenance window to minimize process disruption.
2. Removal: If hot-swap is supported per the system documentation, follow the proper hot-swap procedure. Otherwise, power down the Advant OCS chassis. Disconnect all RTD sensor wiring from the module terminal block, labeling each wire pair for reconnection. Release the module locking mechanism and carefully slide the old module out of the chassis slot.
3. Install: Insert the new DSAI146 module into the correct chassis slot, ensuring proper alignment with the backplane connector. Secure the module with the locking mechanism. Reconnect all RTD sensor wiring to the correct terminals, verifying the 3-wire configuration (A, B, b or similar labeling per the terminal diagram). Double-check that no wires are cross-connected or loose.
4. Power-On Test: Power up the chassis (if it was shut down). Verify that the controller recognizes the module and reports no fault codes. Check temperature readings on all 31 channels against expected values — compare with handheld reference measurements at accessible sensor points. Verify that temperature trends are stable and no channels show erratic readings or open-circuit faults. Adjust controller scaling if necessary to match the previous module’s calibration.



Technical FAQ

What is the difference between the DSAI146 and a general-purpose analog input module? The DSAI146 is specialized for RTD (Pt100) temperature sensors with 31 dedicated input channels, while general-purpose analog input modules (like the DSAI146’s cousin modules) handle mixed signal types (4-20mA, 0-10V, thermocouples) but typically with fewer channels (8 or 16). The DSAI146’s specialization means it has built-in linearization for Pt100 sensors, 3-wire lead compensation, and higher channel density — making it the optimal choice when your application is primarily temperature monitoring with Pt100 sensors.

Can I use the DSAI146 with thermocouple sensors? No. The DSAI146 is designed specifically for Pt100 RTD sensors. Thermocouples require different signal conditioning (millivolt-level inputs with cold junction compensation) that the DSAI146 does not provide. For thermocouple inputs, you would need a different ABB module such as the DSAI130 or equivalent thermocouple input module.

What Advant OCS/S100 controllers is the DSAI146 compatible with? The DSAI146 is compatible with the Advant OCS and S100 I/O system family, including controllers such as the AC110, AC160, AC450, and related system components. It interfaces through the Advant OCS module bus and is recognized by the system configuration software. Always verify compatibility with your specific controller model and firmware version before ordering.

What are common failure modes for this module? Common failure modes include: individual channel failures due to overvoltage or ESD damage from sensor wiring; backplane connector pin damage from repeated insertion/removal; PCB trace corrosion from moisture ingress in humid environments; and firmware/configuration corruption causing the controller to misidentify the module. In most cases, a failed channel will report an open-circuit fault or erratic temperature readings.

What warranty do you offer on New Surplus parts? We provide a full 12-month warranty on all New Original / New Surplus units. This is fundamentally different from refurbished or pulled modules, which often carry 30–90 day warranties and come with unknown operational history, potential connector wear, and degraded calibration accuracy. For a temperature input module that directly impacts process control accuracy and product quality, the reliability difference between new surplus and refurbished directly impacts measurement integrity and the risk of process upsets.
