Product Core Brief
- Model: VE4012S2B1
- Brand: Emerson (DeltaV)
- Series: DeltaV DCS / Industrial Control System
- Core Function: Interfaces digital input/output signals and serves as a termination block for industrial control systems.
- Product Type: Digital I/O Signal Module & Termination Block
- Key Specs: 12 Channels | 2.5 A Max | IP20 Protection
- Condition: New Original / New Surplus

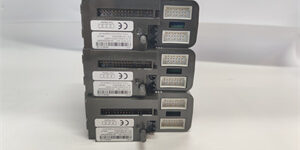

Emerson VE4012S2B1
Product Introduction
The Emerson serves as a versatile digital input/output signal module and I/O termination block. This industrial automation unit is designed to withstand harsh industrial environments, ensuring uninterrupted operation in challenging conditions.
This replacement module features a robust stainless steel housing and polyamide insulation. It supports 12 channels with spring clamping connectors for quick, secure wiring and versatile integration capabilities.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Digital I/O Signal Module / Termination Block |
| Channel Count | 12 Channels |
| Operating Voltage | 220V AC |
| Max Current Capacity | 2.5 A |
| Operating Temperature | -40°C to +85°C |
| Protection Rating | IP20 (Non-hazardous areas) |
| Wire Capacity | Up to 16 AWG |
| Dimensions | 120mm x 60mm x 30mm |
| Primary Application | Production Line Control & Equipment Monitoring |
| Compliance | UL, CE, ISO 9001 |
Quality Control Process
Every replacement module undergoes strict electrical validation. We first verify the 220V AC power rails using a calibrated Fluke multimeter to ensure stable operation. Next, we perform signal injection testing on all 12 channels to confirm accurate state transitions and current handling up to 2.5 A. We then inspect the spring clamping connectors for tension and the stainless steel housing for structural integrity. All units ship in anti-static shielding.
Replacement Pitfall Guide
❗ Verify Wire Gauge Compatibility. This termination block supports wires up to 16 AWG. Attempting to force thicker gauge wires into the spring clamps will damage the connectors and compromise signal integrity.
❗ Check Environmental Ratings. With an IP20 protection class, this module is strictly designed for non-hazardous, indoor areas. Exposing it to dust or moisture without proper cabinet sealing will degrade the internal circuitry.
❗ Mind the Temperature Limits. The -40°C to +85°C operating range is absolute. Installing this module in unventilated enclosures exceeding 85°C degrades performance rapidly. Ensure adequate rack cooling.
❗ Inspect Spring Clamps. The spring clamping connectors facilitate quick wiring but require proper insertion. Ensure wires are fully seated to prevent intermittent signal loss during machine vibration.
Keep these in mind and you’ll cut 90% of rework time.
Emerson VE4012S2B1
Compatibility Matrix & Benchmarks
| Original Model | Replacement / Successor Model | Compatibility Level | Migration Notes |
|---|---|---|---|
| Direct | Identical electrical specs | ||
| VE4003S2B1 | Needs Adaptation | Different AI variant, verify channel count | |
| CE4012S2B1 | Needs Adaptation | Verify communication variant |
- Current Handling: Capable of handling substantial power transfer up to 2.5 A.
- Data Integration: Seamless plug-and-play integration with DeltaV controllers.
