Product Core Brief
- Model: 135489-02
- Brand: Bently Nevada
- Series: 3500/42M Vibration Monitor
- Core Function: Serves as the rear I/O module with internal safety barriers for 2 displacement/acceleration and 2 velocity channels.
- Product Type: Monitor I/O Backplane Assembly
- Key Specs: 2x Disp/Accel + 2x Vel | Internal Safety Barrier | 3500/42M Specific
- Condition: New Surplus / Original OEM

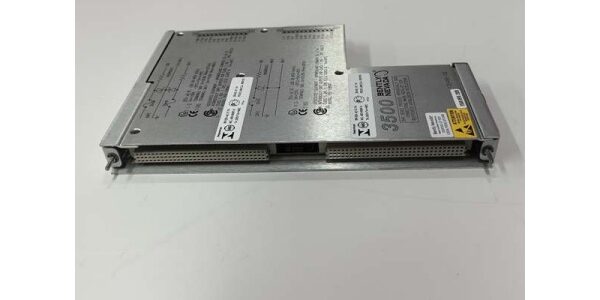

Bently 135489-02
Key Technical Specifications
- Manufacturer: Bently Nevada
- Part Number: 135489-02
- Product Category: 3500/42M Rear I/O Module
- System Architecture: Bently Nevada 3500 Rack
- Channel Configuration: 2x Displacement/Acceleration + 2x Velocity
- Key Feature: Internal Safety Barrier / Isolation
- Compatible Module: 3500/42M (Front Panel)
- Mounting: Rear Rack Mount
- Operating Temp Range: -20°C to +65°C
- Compliance: API 670 / CE / CSA / ATEX / IECEx
Product Introduction (No Fluff)
This 135489-02 is the specialized rear I/O module for the Bently Nevada 3500/42M, providing internal safety barriers and signal conditioning for mixed sensor types. It specifically supports two displacement/acceleration channels and two velocity channels, making it distinct from standard 4-channel proximity bases.
Sourcing this exact OEM replacement part is critical when the rear assembly suffers from barrier failure, pin damage, or configuration mismatches. Keeping verified new surplus stock on hand prevents extended downtime when the front panel is functional but the rear I/O base is compromised or misconfigured.
QA & Testing SOP (Dynamic & Transparent)
Safety barrier assemblies demand rigorous validation. Every 135489-02 undergoes a strict inbound anti-counterfeit inspection, verifying the PCB laminate, connector pin straightness, and Bently Nevada factory labels. Next, we perform a continuity test across all 4 channels to the front panel connector to ensure no open circuits or internal trace breaks. We also verify the internal barrier isolation resistance and check the specific channel mapping to confirm it matches the 2+2 configuration. Finally, a mechanical fit-check on a 3500 test rack ensures the mounting points and guide rails are within tolerance. All units ship in anti-static shielding with a printed QA test report.
Installation Pitfalls & Guide (Engineer to Engineer)
❗ Channel Configuration Mismatch: The 135489-02 is not a universal 4-channel proximity base. It is hardwired for 2x Displacement/Acceleration + 2x Velocity. If you plug a 3500/42M front panel configured for 4x proximity probes into this base, you will get invalid readings or faults. Verify your sensor mix matches this specific part number.
❗ Backplane Pin Inspection: The 3500/42M front panel has a dense pin array that mates directly to this rear base. If the previous module failed due to a short or arc, inspect every pin on this 135489-02 with a magnifying glass. A single bent or bridged pin will destroy the new front panel immediately.
❗ Internal Barrier Integrity: This part includes the internal safety barrier for hazardous area compliance. If you are replacing this due to noise or ground loop issues, verify that the barrier components on the PCB are not physically cracked or burnt. A compromised barrier will pass EMI directly to the sensitive analog inputs and void your safety certification.
Replacement Protocol:
- Pre-Install: Lock out the 3500 rack power. Verify 0 VDC at the backplane. Ground yourself properly.
- Removal: Remove the front 3500/42M panel. Unscrew the rear 135489-02 from the rack rails. Disconnect any rear cabling if applicable.
- Install: Align the new 135489-02 with the rack guides. Secure to the rails with even torque. Visually inspect the mating surface one last time.
- Power-on Test: Mate the 3500/42M front panel. Restore rack power. Verify the “OK” LED and check for zero fault codes in the Configuration Software before reconnecting field probes.
Bently 135489-02
Technical FAQ
Is this an exact drop-in replacement for my damaged 3500/42M rear base?
Only if your system uses the 2x Displacement/Accel + 2x Velocity configuration. The 135489-02 is mechanically identical to other 3500/42M rear bases but electrically distinct. Check your old part number: if it ends in -01 (4x Disp/Accel) or -03 (4x Vel), this -02 will not work.
Why is this listed as “New Surplus” instead of factory-new?
This is genuine Bently Nevada stock that was never deployed in a power plant or refinery. It has been stored in climate-controlled inventory rather than exposed to harsh industrial environments. You receive the exact same MTBF and lifespan as a factory-fresh unit, typically at a significantly lower cost and without the 16-week lead time.
Can I hot-swap this rear I/O module while the rack is live?
No. This is a structural backplane component, not a hot-swappable module. Removing it requires disconnecting the front panel and unbolting the rear assembly. This will cause an immediate loss of monitoring for that slot. Always schedule this during a shutdown.
What is the warranty coverage on this part?
We provide a standard 12-month functional warranty. If the backplane shows open circuits, barrier failure, or mechanical defects under normal operating conditions within that window, we replace it. Our QA testing proves the assembly passed continuity and isolation tests before it left our bench.
My 3500/42M is failing. Do I need to replace the front panel too?
Not necessarily. If the failure was caused by a field wiring short, a lightning strike, or physical damage to the rear connector, the front panel might be fine. Test the front panel on a known good backplane first. If it passes, you only need this 135489-02. If the front panel is also dead, replace both to avoid cross-contamination.
