Product Core Brief
- Model: PCI-6221
- Brand: National Instruments (NI)
- Series: NI M Series Multifunction DAQ
- Core Function: Provides high-precision analog I/O, digital I/O, and counter/timer functions for PCI-based test and measurement systems.
- Product Type: Multifunction I/O Device (DAQ)
- Key Specs: 16 AI (16-Bit, 250 kS/s) | 2 AO | 24 DIO | 2 Counters | PCI Bus
- Condition: New Original (New Surplus)
- ⚠️ Status: End of Life (EOL) – Suggested Replacement: PCIe-6321
Product Introduction
The is a versatile, mid-range multifunction I/O device from the highly successful M Series family. Designed for laboratory automation, research, and manufacturing test, it consolidates analog input, analog output, digital I/O, and counters onto a single PCI card, significantly reducing system complexity and cost.
At its core, the features 16 analog input channels (8 differential or 16 single-ended) with 16-bit resolution and a 250 kS/s aggregate sampling rate. It also provides 2 analog output channels (16-bit, up to 833 kS/s), 24 digital I/O lines, and two 32-bit counter/timers. This “all-in-one” architecture makes it an ideal workhorse for applications requiring synchronized, multi-signal acquisition and control, such as sensor characterization, device testing, and process monitoring.

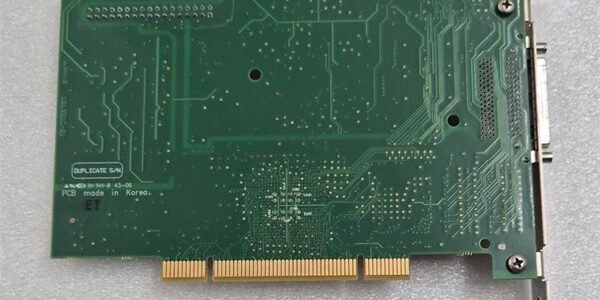

NI PCI-6221
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Multifunction I/O Device (DAQ) |
| Bus Interface | PCI |
| Analog Input | 16 SE / 8 Diff, 16-Bit, 250 kS/s |
| Analog Output | 2 Channels, 16-Bit, 833 kS/s |
| Digital I/O | 24 Lines (8 Correlated) |
| Counters/Timers | 2x 32-Bit |
| Input Range | ±0.2 V, ±1 V, ±5 V, ±10 V |
| Output Range | ±10 V |
| Driver Support | NI-DAQmx |
| Connector | 68-Pin SCSI-II (via SHC68-68-EPM cable) |
| Certifications | CE, IEC 61010-1 |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against NI traceability records. A visual inspection checks for bent pins on the PCI edge connector and the 68-pin SCSI connector, ensuring no physical damage or corrosion.
- Live Functional Test: We mount the unit in a live PCI test system. We verify that NI MAX correctly enumerates the device and passes the self-test, confirming all AI, AO, DIO, and counter channels are accessible.
- Analog Accuracy Test: Using a precision voltage calibrator and DMM, we verify DC accuracy and linearity across all input ranges (±10V, ±5V, etc.) and both output channels.
- Timing & Synchronization Test: We configure a simultaneous AI/AO task and use an oscilloscope to verify the update/sample timing accuracy and channel-to-channel synchronization.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on legacy DAQ systems are unforgiving. Watch out for these traps.
- Bus Mismatch: ❗ Critical. The is a native PCI card. It will not fit in a PCIe slot. If your new motherboard lacks a native PCI slot, you must migrate to the PCIe equivalent (PCIe-6321) or use a PCI-to-PCIe adapter (not recommended for timing-critical applications).
- End-of-Life Status: ❗ Critical. This product is obsolete. NI no longer manufactures it. While NI-DAQmx drivers still support it, plan for a future migration to the PCIe-6321 (PCIe) or PXIe-6321 (PXI Express) to ensure long-term support and availability.
- Connector & Cabling: ❗ Critical. The uses a 68-pin SCSI-II connector. Ensure you have the correct shielded cable (e.g., NI SHC68-68-EPM) and a compatible terminal block (e.g., BNC-2110, SCB-68). Using unshielded or incorrect cables will introduce noise and cause erratic readings.
- Signal Conditioning: The has limited onboard signal conditioning. If measuring thermocouples, RTDs, or high-voltage signals, you must use external SCXI or SCC modules. Connecting these sensors directly will damage the card.
- ESD Damage: The 16-bit ADC/DAC and PCI interface are sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen cards fail self-tests because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
NI PCI-6221
Compatibility Matrix & Benchmarks
Compatibility
- NI → : Direct Replacement – Verify NI-DAQmx driver version compatibility.
- NI PCI-6024 → : Recommended Upgrade – PCI-6024 is the E Series predecessor; offers higher resolution (16-bit vs 12-bit) and faster sampling.
- NI → PCIe-6321 : Migration Path – PCIe-6321 is the direct X Series replacement with higher speed (250 kS/s/ch vs aggregate) and PCIe bus. Requires PCIe slot and driver re-validation.
Benchmarks
- AI Sample Rate: 250 kS/s (Aggregate, verified across 16 channels)
- AO Update Rate: 833 kS/s (Single channel, verified)
- DC Accuracy: ±0.01% of range (Typical, post-calibration)
