Product Core Brief
- Model: MTL4842
- Brand: MTL (Eaton Crouse-Hinds)
- Series: MTL4840 HART Multiplexer System
- Core Function: Serves as the HART interface module, providing the critical data interface between smart field devices and PC-based HART instrument management software.
- Product Type: HART Interface Module
- Key Specs: Pairs with MTL4841 | Supports 4-20mA Analog Pass-through | Modular Backplane Mount
- Condition: New Original (New Surplus)
Product Introduction
The is a specialized HART interface module designed to act as the hardware backbone for HART multiplexer systems. Working in tandem with the MTL4841 HART communications module, it provides the essential data interface connecting smart field devices to host control software.
A key engineering advantage of the is its ability to handle both digital HART communication and standard 4-20mA analog signals simultaneously. It allows the HART communication modules to be added, deleted, or re-powered without interfering with or disrupting the continuous 4-20mA analog control signals. This ensures uninterrupted process control while maintaining full visibility into smart field device diagnostics.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | HART Interface Module |
| System Compatibility | MTL4840 Series (Requires MTL4841) |
| Backplane Compatibility | HART Backplanes (e.g., BPHM64) |
| Signal Support | 4-20mA Analog + HART Digital Protocol |
| Hot-Swap Capability | Yes (Does not disrupt 4-20mA signals) |
| Mounting | Modular Backplane Mount |
| Origin | United Kingdom |
| Certifications | Industrial Automation & Hazardous Area Standards |

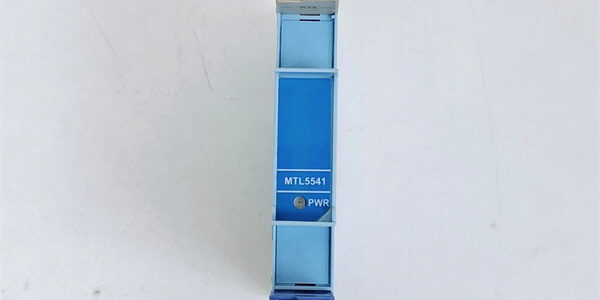

MTL MTL-5541
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against MTL/Eaton traceability records. A visual inspection checks for physical damage, ensuring the backplane connector pins are straight and the housing is intact.
- Live Functional Test: We mount the unit on a live HART backplane. We verify that it correctly pairs with the MTL4841 module and establishes a stable data link.
- Signal Integrity Test: We inject a 4-20mA analog signal and a HART digital command to confirm the module successfully passes both signals without degradation or interference.
- Hot-Swap Simulation: We simulate the removal and re-insertion of the module to verify that the 4-20mA analog loop remains stable and uninterrupted during the maintenance action.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on HART multiplexer systems are unforgiving. Watch out for these traps.
- Missing Companion Module: ❗ Critical. The is strictly an interface module. It cannot function alone. It must be paired with the MTL4841 HART communications module. Ensure the MTL4841 is present and functioning before troubleshooting the .
- Backplane Compatibility: ❗ Critical. Verify that you are mounting the on the correct HART backplane (such as the BPHM64). Forcing it onto an incompatible standard I/O backplane will cause connection failures.
- Analog Loop Disruption: While the module is designed not to disrupt 4-20mA signals during hot-swaps, ensure the terminal block and field wiring are securely torqued. A loose connection during module insertion can still cause a momentary analog spike.
- Software Configuration: The MTL4840 system relies heavily on PC-based HART instrument management software. Ensure the host software is properly configured to recognize the specific slot/channel where the new is installed.
- ESD Damage: HART interface modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
MTL MTL-5541
Compatibility Matrix & Benchmarks
Compatibility
- MTL → : Direct Replacement — Verify backplane compatibility.
- MTL MTL4840 System → MTL4850 System : Upgrade Path — The MTL4840 series has been discontinued and superseded by the MTL4850 range, which offers simpler installation and superior functionality. ⚠️ Note: is NOT cross-compatible with MTL4850 backplanes.
Benchmarks
- Analog Pass-Through: 0 ms disruption (verified during hot-swap testing)
- HART Handshake: < 100 ms (from power-up to software recognition)
Need the installation guide for the HART interface module? I can pull up the backplane mounting diagram and the pairing configuration steps with the communications module.
