Product Core Brief
- Model: MTL5532
- Brand: MTL (Eaton)
- Series: MTL5500 Intrinsically Safe Isolators
- Core Function: Isolates pulse/frequency signals and converts them to an analog 4-20 mA output with a configurable trip point.
- Product Type: Pulse Isolator & Converter
- Key Specs: 1 Channel | 0-50 kHz Input | 4-20 mA Output | DIN Rail
- Condition: New Original (New Surplus)
Product Introduction
MTL is a single-channel pulse isolator and converter designed for hazardous area applications. This module accepts pulse, frequency, or vibration signals from field devices and provides a galvanically isolated pulse output alongside a proportional 4-20 mA analog signal.
Unlike simple pass-through isolators, the features a configurable trip point that can trigger an alarm relay when the input frequency crosses a set threshold. Configuration is performed via a PC using the PCL45USB cable, allowing for flexible setup without hardware jumpers. It is ideal for monitoring turbine speed, flow meters, or vibration sensors in Zone 0/1/2 environments.

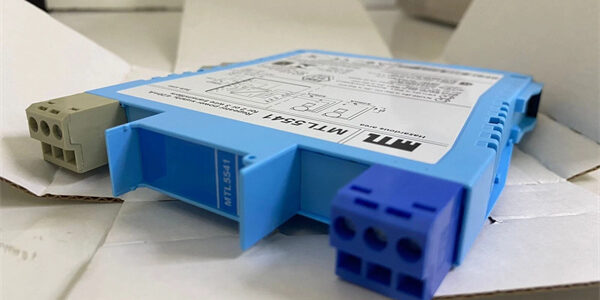

MTL 5541
Key Technical Specifications
| Parameter | Value |
|---|---|
| Channel Count | 1 (Full Floating) |
| Input Type | Pulse / Frequency / Vibration |
| Input Frequency Range | 0–50 kHz (Pulse Out) / 0–10 kHz (Analog Out) |
| Output Signal | Isolated Pulse + 4-20 mA Analog |
| Alarm Output | Relay (0.5A @ 35Vdc max) |
| Configuration | PC via PCL45USB Cable |
| Mounting | DIN Rail (DIN EN 50022) |
| Power Supply | 20–35 Vdc |
| Certification | ATEX / IECEx / FM (Zone 0/1/2) |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for pin corrosion or PCB scratches.
- Live Functional Test: Power-on self-check runs first. We verify pulse counting accuracy and 4-20 mA linearity >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity is mandatory.
- Configuration Verification: Connect via PCL45USB to read current parameters. Photograph trip point and scaling settings before racking.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Configuration Loss: This module is software-configurable, not jumper-set. Always read and save parameters from the old unit before replacement, or re-verify against P&ID.
❗ Frequency Range Mismatch: Ensure your input signal is within 0-10 kHz if you require the 4-20 mA analog output; pulse output supports up to 50 kHz.
❗ Wiring Polarity: Pulse inputs can be sensitive to polarity. Verify NAMUR or active source wiring at the terminal block to prevent false tripping.
❗ Power Supply Headroom: Calculate total backplane/rail draw. Maintain 20% headroom on your 24 V DC supply to prevent brownouts during relay actuation.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
MTL 5541
Compatibility Matrix & Benchmarks
- Needs Adaptation — Backplane version, verify base unit compatibility.
- Incompatible — Vibration transducer interface, different signal conditioning.
- Incompatible — Dual-channel vibration interface.
Benchmarks:
- Scan Cycle: <1 ms (Pulse counting hardware)
- Analog Update: 100 ms (Configurable filter)
- Comms Throughput: N/A (Local PC Config Only)
Need me to pull up the wiring diagram or PCL45USB configuration guide for this module? Let me know.
