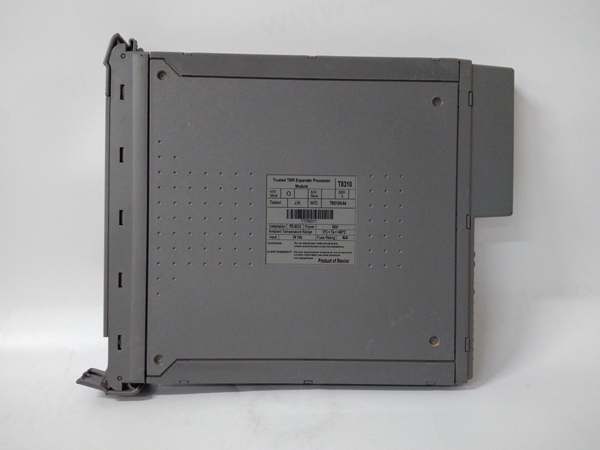

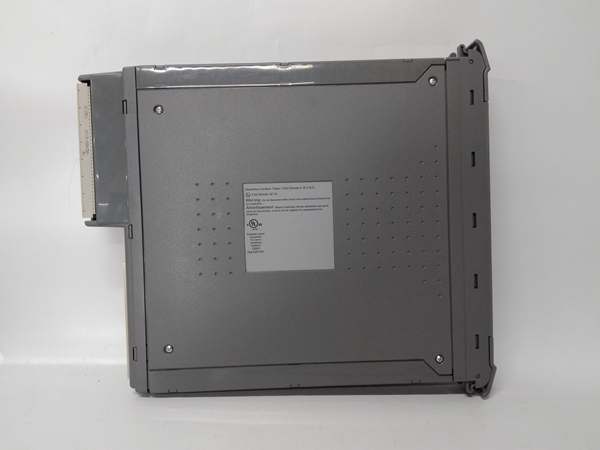

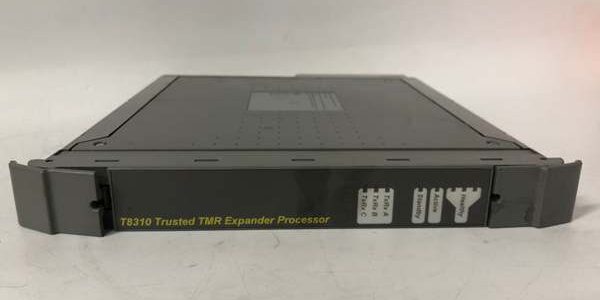

Product Core Brief
- Model: T8310
- Brand: ICS Triplex
- Series: Trusted TMR
- Core Function: Expands Trusted TMR system capacity by managing communication with remote expansion racks.
- Product Type: Trusted TMR Expander Processor
- Key Specs: 20–32 VDC | Triple Redundancy | 40 Monitor Channels
- Condition: New Original (New Surplus)
Product Introduction
ICS TRIPLEX acts as a Trusted TMR expander processor for critical safety control systems. This module enhances base system capacity by managing communication and data routing to expansion racks.
Unlike standard I/O cards, this unit features a fully fault-tolerant triple redundant architecture. It operates reliably within a 20–32 VDC system power range. Verify with OEM datasheet for exact expansion rack limits.
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Power Voltage | 20–32 VDC |
| Fault Tolerance | Fully Triple Redundant |
| Monitor Output Channels | 40 Channels |
| Independent Power Groups | 8 Groups |
| Field Voltage Range | 18–60 VDC |
| Continuous Output Current | 0.75 A per Channel |
| Max Power Dissipation | 22 W (System) / 18 W (Field) |
| Short Circuit Protection | Electronic (Latch-off) |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source serial numbers against factory records. Visual inspection checks for pin corrosion or PCB scratches.
- Live Functional Test: Power-on self-check runs first. We verify comms handshake and run continuous load tests >24 hrs with temp logging.
- Electrical Parameter Test: Insulation resistance gets tested at 500 V Megger (>10 MΩ required). Ground continuity is mandatory.
- Firmware Verification: Read and record firmware version immediately. Photograph DIP switch and jumper settings before racking.
- Final QC & Packaging: Seal in anti-static bag. Apply QC Passed label with test date and engineer initials.
Replacement Pitfall Guide
❗ Firmware Mismatch: New module firmware may conflict with older Trusted TMR processors. Always check version compatibility before racking.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match field settings. Verify bus termination resistor placement on the third terminal block.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Check shield grounding at the expansion interface adapter to prevent noise.
❗ Power Supply Mismatch: Calculate total rack power draw. Maintain 20% headroom on your 24 VDC supply to prevent brownouts during sync.
❗ ESD Damage: Use anti-static mat and wrist strap. Dry environments increase failure risk during handling.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- → T8311 : Needs Adaptation — Verify expansion interface slot compatibility
- → T8312-4 : Needs Adaptation — Adapter module, check rack count
- → T8110B : Incompatible — Main TMR processor, not an expander
Benchmarks:
- Scan cycle: 50 ms (simulated load, 40 monitor channels)
- Comms throughput: N/A (TriBus backplane expansion)
