Product Core Brief
- Model: T8403 (also known as T8403C / T8403CX)
- Brand: ICS Triplex / Rockwell Automation
- Series: Trusted TMR Safety System
- Core Function: Acquires discrete 24VDC field signals for safety-critical logic evaluation using Triple Modular Redundancy.
- Product Type: 40-Channel TMR Digital Input Module
- Key Specs: 40 TMR Channels | 24VDC | 1ms SOE Resolution | SIL3 Certified
- Condition: New Original (New Surplus)
Product Introduction

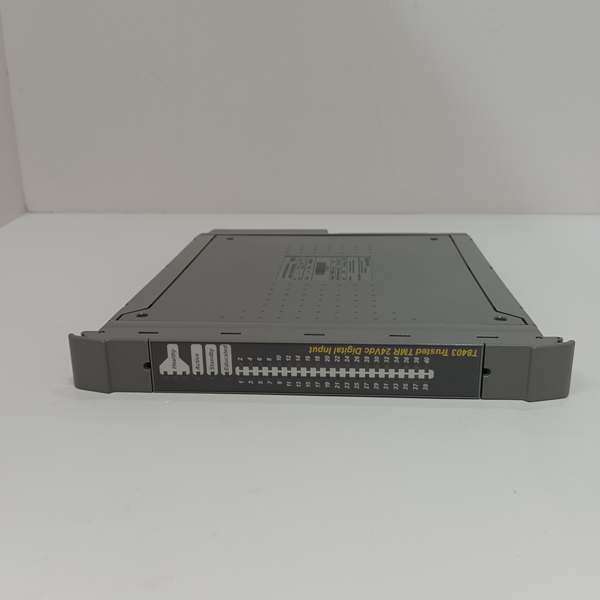

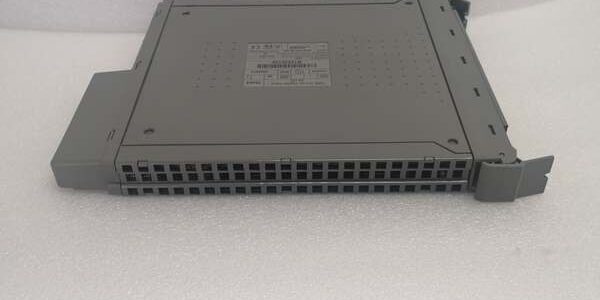

The is a high-performance digital input module specifically engineered for the Trusted TMR (Triple Modular Redundancy) safety system. It serves as the critical sensing interface for discrete field devices, such as limit switches, pressure switches, and emergency stop buttons, converting their on/off states into reliable logic signals for safety evaluation.
Built on the Trusted TMR platform, the utilizes three synchronized processor fault containment regions to execute identical operations and perform majority voting on internal operations. This architecture ensures that even in the event of internal component failures, the module continues to provide accurate and reliable discrete signal monitoring without nuisance alarming, making it ideal for SIL3 safety applications in oil & gas, power generation, and chemical processing.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Trusted TMR Digital Input Module |
| System Compatibility | ICS Triplex Trusted TMR Rack |
| Channel Count | 40 Independent TMR Digital Input Channels |
| Input Voltage | 24 VDC |
| Redundancy Architecture | Triple Modular Redundancy (TMR) with 2oo3 Voting |
| Safety Integrity Level | SIL3 (IEC 61508 / TÜV Certified) |
| Event Sequencing | 1ms Resolution SOE (Sequence of Events) |
| Isolation | 2500V Pulse-Tolerant Opto-Isolation Barrier |
| Diagnostics | Auto Line Monitoring (Open/Short), Stuck-On/Stuck-Off Detection |
| Status Indication | Per-Channel Front Panel LEDs, Module Status LEDs |
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against ICS Triplex traceability records. A visual inspection checks for bent pins on the backplane connector and ensures all 40+ front panel LEDs are intact.
- Live Functional Test: We mount the unit in a live TMR test rack. We simulate 24VDC signals on all 40 channels across all three redundant slices and verify that the majority voting logic accurately updates the status LEDs and controller inputs.
- Electrical Parameter Test: We perform a 500 V Megger test between the field input terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
- Diagnostic Injection Test: We intentionally inject open-circuit and short-circuit faults to confirm the module’s auto-line monitoring triggers the correct fault codes without tripping adjacent channels or causing false voting failures.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on TMR safety systems are unforgiving. Watch out for these traps.
- Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing TMR CPU. The controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
- TMR Voting Faults: ❗ Critical. The relies on three identical slices voting. If you are replacing a single slice, ensure the new module’s hardware revision and firmware match the other two slices. A mismatch will cause continuous voting failures and system faults.
- Terminal / Cable Incompatibility: Inspect the field wiring before plugging in the new card. A shorted switch or grounded cable will immediately trip the ‘s internal protection, locking out the channel and mimicking a module failure.
- Hot-Swap Procedure: While the module supports online hot-swapping via companion modules, always follow the TMR system’s specific hot-swap procedure. Improper removal can cause a momentary mismatch in the redundant slices, potentially triggering a system fault.
- ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility
- ICS Triplex Rev A → Rev B : Direct Replacement — Verify firmware compatibility with TMR CPU.
- ICS Triplex T8403C → : Direct Replacement — Same module, variant nomenclature.
- ICS Triplex T8403CX → : Direct Replacement — Enhanced diagnostics variant; verify configuration compatibility.
Benchmarks
- SOE Resolution: 1 ms (verified timestamp accuracy during fault injection)
- Voting Consensus: < 5 ms (for three-slice synchronization)
- Diagnostic Response: < 10 ms (from fault detection to controller notification)
