Product Core Brief
- Model: T8311
- Brand: ICS Triplex / Rockwell Automation
- Series: Trusted TMR Safety System
- Core Function: Provides the primary interface between the controller chassis and external expansion chassis to increase I/O capacity.
- Product Type: Expander Interface Module
- Key Specs: HIFT TMR Architecture | 3-2-0 Fault Tolerance | Hot-Swappable
- Condition: New Original (New Surplus)
Product Introduction
The is a critical expansion interface module designed for the Trusted TMR (Triple Modular Redundancy) safety system. Installed in the main controller chassis, it acts as the “master” interface between the controller’s internal Module Bus (IMB) and the external expander bus.
Engineered for mission-critical industrial environments, the allows the system to seamlessly connect to multiple external expansion chassis (up to 4 or 7, depending on the companion adapter used) via UTP cables. It features a Hardware Implemented Fault Tolerant (HIFT) TMR architecture, providing comprehensive diagnostics, monitoring, and automatic fault isolation. This ensures that any potential bus faults are contained locally, maximizing overall system availability without causing nuisance alarms.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Expander Interface Module |
| System Compatibility | ICS Triplex Trusted TMR Controller Rack |
| Redundancy Architecture | HIFT TMR (Hardware Implemented Fault Tolerant) |
| Fault Tolerance | 3-2-0 Operation |
| Safety Integrity Level | SIL 3 (IEC 61508 / TÜV Certified) |
| Expansion Capacity | Supports up to 4 or 7 Expander Chassis |
| Hot Swap | Supported (Automatic Fault Handling) |
| Diagnostics | Comprehensive Monitoring, Fast Fault Identification |
| Status Indication | Front Panel LEDs (Module Status & Health) |
| Certifications | IEC 61508 SIL3, TÜV Certified |

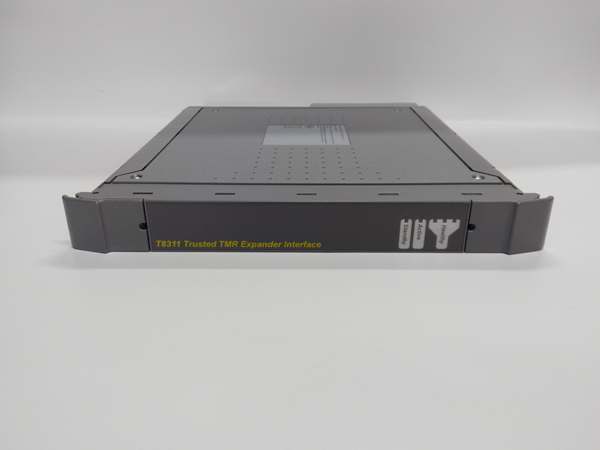

ICS TRIPLEX T8311
Quality Control Process (Engineer’s Perspective)
We don’t just box these and ship them. Here is our actual bench test workflow.
- Incoming Verification: We verify the serial number against ICS Triplex traceability records. A visual inspection checks for bent pins on the IMB backplane connector and ensures the front panel status LEDs are intact.
- Live Functional Test: We mount the unit in a live TMR test rack. We verify the module’s communication handshake across the expander bus and confirm the controller recognizes the module without configuration errors.
- Electrical Parameter Test: We perform a 500 V Megger test between the expander bus terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is verified.
- Diagnostic Injection Test: We simulate expander bus communication faults to confirm the module’s internal diagnostics trigger the correct fault codes and successfully isolate the fault without disrupting the main controller.
- Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.
Replacement Pitfall Guide
Field replacements on TMR expansion systems are unforgiving. Watch out for these traps.
- Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing TMR CPU. The controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
- Expander Adapter Compatibility: ❗ Critical. The requires a companion Expander Interface Adapter (e.g., T8312-4 for 4 chassis or T8312-7 for 7 chassis) in the expansion racks. Ensure the adapter type matches your physical expansion setup.
- UTP Cable Integrity: Inspect the UTP cables connecting the controller to the expansion chassis. A damaged or improperly terminated cable will cause communication dropouts that mimic module failures.
- Hot-Swap Procedure: While the module supports online hot-swapping, always follow the TMR system’s specific hot-swap procedure. Improper removal can cause a momentary mismatch in the redundant slices, potentially triggering a system fault.
- ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility
- ICS Triplex Rev A → Rev B : Direct Replacement — Verify firmware compatibility with TMR CPU.
- ICS Triplex T8311C → : Direct Replacement — T8311C is a conformal-coated variant for harsh environments; verify configuration compatibility.
- ICS Triplex → T8312-4 / T8312-7 : Companion Hardware — T8312 adapters are required in the expansion chassis to complete the link.
Benchmarks
- Bus Communication Latency: < 5 ms (verified at full expander bus load)
- Fault Isolation Time: < 10 ms (from fault detection to local containment)
Need the wiring diagram for the expander bus? I can pull up the termination schematic showing the UTP cable routing and companion adapter (T8312) connections.
