Product Core Brief
- Model: M9494F1003
- Brand: HONEYWELL
- Series: Modutrol IV / Series 90
- Core Function: Modulates dampers or valves with precise stroke control and auxiliary switching.
- Product Type: Electric Damper/Valve Actuator
- Key Specs: 24 VAC | 160° Stroke | Spring Return
- Condition: New Original (New Surplus)
Product Introduction
HONEYWELL operates as a Series 90 Modutrol IV motor for HVAC control applications. It provides reliable modulation for dampers and valves with integrated spring return functionality.
This actuator features a 160° stroke specifically designed for Honeywell valve linkages. Torque ratings support occasional breakaway loads up to 300 lb-in without continuous operation. Verify with OEM datasheet for exact timing, as some OEM models use non-standard specs.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 24 VAC |
| Stroke Angle | 160° (Valve Application) |
| Return Type | Spring Return |
| Breakaway Torque | 300 lb-in (Max) |
| Normal Running Torque | 75 lb-in |
| Timing (90°) | 30 Seconds |
| Series | Modutrol IV / Series 90 |
| Auxiliary Switch | Field Installable (220736 Kit) |
| Mounting | Direct or Bracket (220738A) |
| Application | Dampers, Globe, Butterfly Valves |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for gear housing cracks or terminal corrosion.
- Live Functional Test: Power-on self-tests run first. We verify full stroke travel and spring return action with continuous cycle runs exceeding 24 hours.
- Electrical Parameter Test: Coil resistance gets measured with a Fluke 115. Insulation resistance is confirmed at >10 MΩ using a Megger.
- Mechanical Verification: We check crank arm clearance and auxiliary switch cam alignment. Stroke settings are verified against the 160° valve requirement.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.

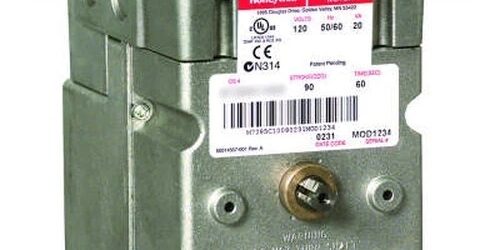

Honeywell M9494F1003
Replacement Pitfall Guide
❗ Stroke Mismatch: This unit is 160° for valve apps. Standard damper motors are 90°. Installing the wrong stroke destroys valve seats or linkage.
❗ Crank Arm Clearance: Check if the arm rotates through the downward position. You might need the 220738A Adapter Bracket or the shorter 221455A crank arm to prevent binding.
❗ Breakaway Torque Abuse: Never run the motor continuously at breakaway torque (300 lb-in). It’s for seizing valves only. Continuous use burns the internal clutch.
❗ Auxiliary Switch Timing: Factory cams are set to mid-stroke. Always re-adjust the O-Auxiliary switch after installation to match your specific control sequence.
❗ Spring Return Orientation: Ensure the motor is mounted upright unless using the weatherproofing kit (4074ERU). Non-upright mounting without protection voids the NEMA rating.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- HONEYWELL → HONEYWELL : Direct — Identical replacement
- HONEYWELL → HONEYWELL M9484 : Needs Adaptation — Verify stroke angle and torque requirements
- HONEYWELL → HONEYWELL M9184D : Incompatible — Different timing and torque class
- HONEYWELL → HONEYWELL M945A : Incompatible — M945A is non-spring return, 90° stroke
- Full Stroke Time: 30 Seconds (90° Nominal)
- Spring Return Time: < 30 Seconds (Unloaded)
