Product Core Brief

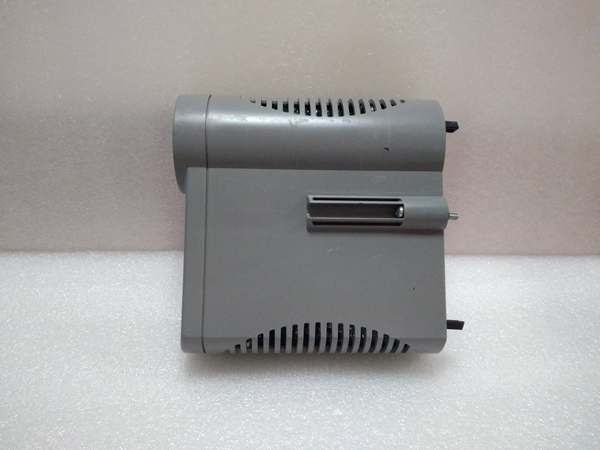

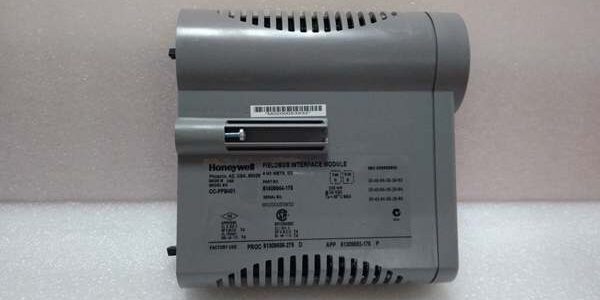

• Model: CC-PFB401
• Brand: Honeywell
• Series: Experion PKS / FIM4 Series C
• Core Function: Bridges the Experion control environment with Fieldbus control functions.
• Product Type: Fieldbus Interface Module (FIM)
• Key Specs: Publish/Subscribe & Client/Server | C300 Compatible | C-Series I/O
• Condition: New Original (New Surplus)

Product Introduction

The is a Series C Fieldbus Interface Module (FIM4) that serves as the critical bridge between the Experion control environment and Fieldbus control functions. It supports both publish/subscribe and client/server communication methods to interact seamlessly with Fieldbus function blocks.

Unlike standard I/O cards, this unit processes complex control algorithms directly on the fieldbus. The must be configured downstream from CEE function blocks, ensuring deterministic data exchange for high-speed process control applications.

Key Technical Specifications

Quality Control Process (Engineer’s Perspective)

We don’t just box these and ship them. Here is our actual bench test workflow.

1. Incoming Verification: We verify the serial number against OEM traceability records. A visual inspection checks for bent pins on the C-Bus connector and ensures the DIN rail clip isn’t cracked.
2. Live Functional Test: We mount the unit in a live C300 test rack. We verify the Fieldbus handshake and confirm the controller recognizes the without configuration errors.
3. Electrical Parameter Test: We perform a 500 V Megger test between the field wiring terminals and the backplane. Insulation resistance must exceed 10 MΩ. Ground continuity is also verified.
4. Firmware Verification: We read the module’s internal firmware revision via the service port. We photograph the DIP switch settings to ensure they match factory defaults before shipping.
5. Final QC & Packaging: The module is sealed in an anti-static bag with silica gel. A QC sticker showing the test date and technician initials is applied to the exterior.

Replacement Pitfall Guide

Field replacements on Fieldbus systems are unforgiving. Watch out for these traps.

1. Firmware Mismatch: ❗ Critical. A brand-new might have a newer firmware revision than your existing C300 CPU. The Experion controller will block it with a configuration mismatch fault. Always check your system’s allowed firmware matrix before installing.
2. DIP Switch / Jumper Misconfiguration: This module uses hardware addressing for bus station ID. If you pull the old card and forget to transfer the binary address switches to the new one, the system will not recognize it.
3. Terminal / Cable Incompatibility: Inspect the Fieldbus cabling before plugging in the new card. Incorrect termination or reversed pairs will cause communication failures that mimic module faults.
4. Power Supply Mismatch: Verify your external 24 VDC field power supply has at least 20% headroom over the total calculated load. This module draws current for its own internal monitoring circuits.
5. ESD Damage: Safety modules are highly sensitive to electrostatic discharge. Always wear a grounded wrist strap when handling the bare PCB. I’ve seen modules fail bench testing because they were handled on a dry winter day without protection.

Keep these in mind and you’ll cut 90% of rework time.

Compatibility Matrix & Benchmarks

Compatibility

• Honeywell CC- Rev A → CC- Rev B : Direct Replacement — Verify firmware compatibility with C300 CPU.
• Honeywell CC- → CC- 51405044-175 : Direct Replacement — Same module, OEM part number format.

Benchmarks

• Fieldbus Handshake: < 100 ms (from power-up to controller recognition)
• Communication Latency: < 5 ms (publish/subscribe cycle, verified at full load)

Need the CEE function block configuration guide for the ? I can pull up the integration schematic so you don’t have to guess the downstream mapping.
