Product Core Brief

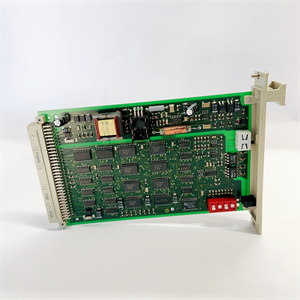

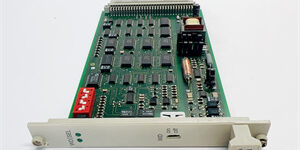

- Model: HIMA F7553
- Brand: HIMA
- Series: H51q PES
- Core Function: Bridges central processing units with I/O subracks via backplane bus.
- Product Type: PLC Coupling / Bus Interface Module
- Key Specs: 24 V DC | 4 TE Width | Watchdog Monitoring
- Condition: New Original (New Surplus)
Product Introduction
HIMA serves as the critical bus coupler for H51q safety systems. It manages data exchange between the central unit and I/O subracks.
This module requires 750 mA at 24 V DC for reliable operation. Integrated watchdog signals ensure immediate fault detection during bus failures. Verify with OEM datasheet for specific baud rate limits, though standard configurations rarely hit the ceiling.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage | 5 V DC / 24 V DC |
| Current Consumption | 600 mA (5 V) / 750 mA (24 V) |
| Space Requirement | 4 TE |
| Dimensions | 21 cm × 13 cm × 3 cm |
| Weight | 0.2 kg |
| Operating Temp | -25°C to +60°C |
| Watchdog | Front Panel LED Monitored |
| Addressing | 4 Coding Switches |
| Safety Feature | Fail-Safe Design |
| Compatibility | H51q PES |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: We trace source documentation and verify serial numbers against anti-counterfeit databases. Visual inspection checks for PCB corrosion or connector scratches.
- Live Functional Test: Power-on self-tests run first. We verify communication handshakes and execute continuous load runs exceeding 24 hours with temperature logging.
- Electrical Parameter Test: Insulation resistance gets measured at 500 V using a Megger. Readings must exceed 10 MΩ. Ground continuity is also confirmed.
- Firmware Verification: We read and record the firmware version. DIP switch and jumper settings receive photographic documentation before shipping.
- Final QC & Packaging: The unit seals in an anti-static bag. A QC Passed label with the test date goes on the exterior.
Replacement Pitfall Guide
❗ Firmware Mismatch: New hardware often ships with newer firmware. This causes bus errors if the controller expects an older revision. Always match the existing system version.
❗ DIP Switch / Jumper Misconfiguration: Factory defaults rarely match your field settings. Check the four coding switches for I/O bus addressing. Wrong settings kill communication.
❗ Terminal / Cable Incompatibility: Pin definitions change between revisions. Verify shield grounding at the cabinet entry point. Floating shields introduce noise into safety channels.
❗ Power Supply Mismatch: Calculate total rack power consumption carefully. Add 20% headroom for inrush currents. Undersized supplies cause intermittent module resets during startup.
❗ ESD Damage: Use a grounded anti-static mat during installation. Dry environments increase static risk significantly. One spark destroys internal logic gates.
Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
- HIMA → HIMA : Direct — Identical replacement
- HIMA → HIMA F7511 : Needs Adaptation — Verify bus protocol and addressing
- HIMA → HIMA F8650X : Incompatible — F8650X is a central module, not a coupler
- HIMA → HIMA F7508 : Needs Adaptation — Check subrack compatibility
- Bus Handshake: < 5 ms (Cold start to operational)
- Data Throughput: 12 Mbit/s (H51q Backplane Bus)
Need the addressing switch chart for the ? I can pull that up.
