Product Core Brief

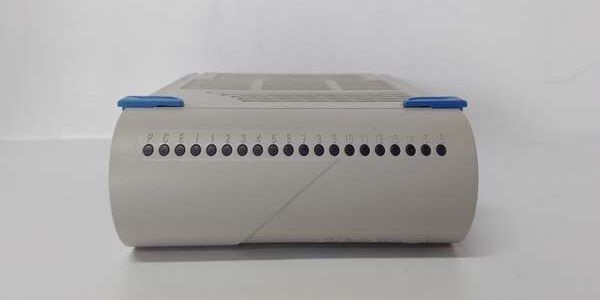

- Model: 1C31189G01
- Brand: WESTINGHOUSE (Emerson Ovation DCS legacy turbine dedicated I/O module)
- Series: Ovation special function speed detector interface module family
- Core Function: Condition pulse signals from magnetic/eddy current tachometer speed pickups, convert pulse frequency to precise RPM measurement, transmit speed value and overspeed fault status to Ovation DCS controllers for turbine, generator and large motor protection logic.
- Product Type: Single-slot plug-in Ovation I/O rack module, hot-swappable, matched dedicated terminal base unit installation
- Key Specs: 1-channel speed pickup pulse input | Measuring range 0–10,000 RPM | ±1 % full-scale accuracy | 1500 Vrms field-to-backplane galvanic isolation | Built-in overspeed threshold comparison | Hot-swap capable | Condition: Refurbished Load-Tested Surplus; ⚠️ EOL legacy power plant DCS spare
- Design note: Dedicated turbine monitoring card, auto-identifies to Ovation controllers after rack insertion; no manual DIP switch addressing required, speed alarm thresholds configured via DCS engineering software.
Product Introduction
The WESTINGHOUSE 1C31189G01 is a dedicated pulse speed acquisition module exclusively designed for Emerson Ovation DCS, widely deployed on steam/gas turbines and generator sets to monitor shaft rotational speed for critical overspeed protection sequences. It processes low-amplitude magnetic pickup pulse signals and isolates noisy field wiring from the sensitive DCS backplane logic.This unit differentiates from standard discrete/analog I/O cards by featuring specialized frequency-to-RPM conversion hardware and dedicated overspeed fault flagging critical to turbine safety interlocks. OEM field logging places its rated MTBF at 54,000 operating hours under continuous 24/7 power plant cabinet runtime at 50 °C ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | Emerson Westinghouse Ovation DCS local / remote I/O racks |
| Input Signal Type | Magnetic pickup / eddy current tachometer pulse signal |
| Rotational Speed Measurement Range | 0 – 10,000 RPM |
| Measurement Accuracy | ±1 % of full reading |
| Response Latency | < 5 ms pulse-to-RPM data conversion |
| Galvanic Isolation | 1500 Vrms field pickup circuit to DCS backplane isolation |
| Hot Swap Functionality | Ovation compliant; replace without full rack shutdown |
| Onboard Diagnostic Logic | Missing pickup signal detection, pulse loss fault, overspeed alarm flag generation |
| Module Operating Supply | 5 V DC nominal rack backplane logic supply; 200 mA typical draw |
| Status Indicators | Global Power OK, Communication OK, Input Fault LED; speed alarm status register feedback to DCS |
| Mechanical Form Factor | Single slot Ovation I/O rack plug-in module; net weight 0.2 kg |
| Overall Module Dimensions | 145 mm L × 51 mm W × 113 mm D |
| Continuous Operating Ambient Temp | -20 °C to +60 °C full rated measurement accuracy; linear derate above +60 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH humidity range |
| Integrated Protection Circuits | Onboard pulse input transient surge clamping, backplane overvoltage lockout |
| Compliance Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, power generation turbine safety standard qualified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial number against Emerson Ovation OEM part databases; inspect front status LED array for dead segments, rack gold edge connector pins for oxidation, pulse input terminal solder joints for cold cracks. Photograph rack backplane pinout for field turbine cabinet wiring reference.
- Live Functional Test: Insert module into standard Ovation I/O test rack paired with variable frequency pulse signal simulator; run 24 hour cyclic RPM ramp profiles from 0–10,000 RPM continuously. Use a Fluke 115 signal logger to track RPM conversion stability and overspeed fault trigger consistency.
- Electrical Parameter Test: 1500 V Megger isolation test between pulse input circuit and module backplane ground (pass threshold >10 MΩ); verify signal conditioning circuit accurately converts low-amplitude magnetic pickup pulses without measurement drift.
- Diagnostic & Comms Verification: Simulate broken speed pickup and overspeed threshold crossing events to validate fault LED illumination and DCS controller alarm register feedback; retain full speed scale configuration tables over a 12 hour rack power-off cycle to validate non-volatile memory retention.
- Final QC & Packaging: Clean rack edge connector gold plating during refurbishment cycles to remove surface oxidation; fit plastic protective dust cap over front LED panel, seal unit in anti-static PE foam bag, apply dated QC Pass label listing RPM measurement linearity, isolation resistance, and fault diagnostic function test metrics before rigid shock-resistant carton shipping.
Replacement Pitfall Guide
❗ Speed Detector / Generic I/O Module Mismatch Risk: Standard analog/digital Ovation I/O cards cannot replace this dedicated 1C31189G01 speed interface unit. Generic modules lack frequency-to-RPM conversion logic and overspeed fault detection, disabling critical turbine overspeed protection interlocks. Match full 1C31189G01 part number for all turbine/generator shaft speed monitoring racks only. Photograph original DCS speed point scaling parameters before module extraction from the rack.❗ Partial Rack Insertion Hazard: Uneven module insertion creates high-resistance backplane contact points that break DCS communication and generate false zero-RPM shaft stall alarms during turbine startup sequences. Tighten rack retainer latches fully to lock the module flush against the backplane edge connector.❗ Magnetic Pickup Cable Shielding Miswiring Risk: Unshielded tachometer pulse wiring run parallel to high-current generator excitation cabling introduces pulse noise and unstable RPM readings. Run dedicated twisted shielded speed pickup cabling per OEM turbine wiring standards, terminate shield at one end only.❗ DCS Cabinet Condensation Short-Circuit Risk: Cold-stored modules moved into warm humid power plant control enclosures form PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before inserting into powered Ovation I/O racks to prevent pulse conditioning ASIC corrosion and intermittent speed dropout faults.❗ ESD Pulse Input Circuit Damage: Onboard high-speed pulse signal conditioning circuits carry low electrostatic discharge tolerance. Always rest the module on a grounded anti-static mat during rack insertion or field speed pickup terminal wiring rewiring, especially in low-humidity climate-controlled central control rooms.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- Ovation standard analog input module → 1C31189G01 : Needs Adaptation — cannot perform native pulse-to-RPM conversion; full turbine speed protection control logic rewrite required
- Ovation standard I/O rack backplane base unit → 1C31189G01 : Direct — factory edge connector pinout natively matches backplane 5 V logic supply and Ovation proprietary I/O bus communication routing
- VM310 24 V cabinet auxiliary power supply → 1C31189G01 : Direct — regulated 24 V DC auxiliary rail powers turbine speed pickup excitation circuits via terminal base
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → 1C31189G01 : Direct — DCS speed alarm dry contacts wire directly to motion PLC 24 V digital input channels for generator-train coordinated interlock logic
