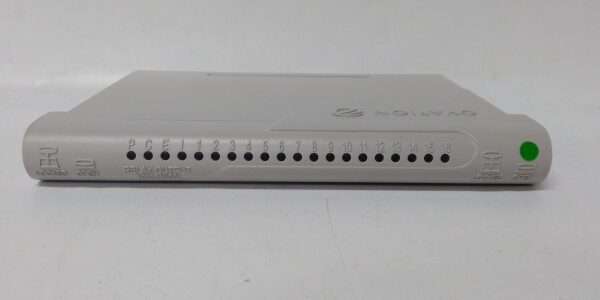

Product Core Brief
- Model: 1C31219G01
- Brand: WESTINGHOUSE (Emerson Ovation DCS platform legacy module)
- Series: Ovation distributed control system I/O relay output module family
- Core Function: Provide 16 independent Form-C relay output channels to drive field solenoids, valve actuators, motor interlock relays, and alarm annunciators; isolate field high-voltage loads from Ovation backplane logic and report relay fault diagnostics to DCS controllers.
- Product Type: Single-slot plug-in rack I/O module, hot-swappable, matched Ovation I/O base unit installation
- Key Specs: 16 Form-C relay output channels | 5 A @ 250 VAC per channel | 2500 Vrms channel-to-backplane galvanic isolation | Hot-swap supported | Built-in contact weld / open coil fault detection | Condition: Refurbished Load-Tested Surplus; EOL legacy DCS spare
- Design note: This high-density relay DO module auto-identifies to Ovation controllers after rack insertion, no manual hardware address jumpers required.
Product Introduction
The WESTINGHOUSE 1C31219G01 is a high-density relay output I/O card exclusively built for Emerson Ovation DCS, widely deployed in power generation, chemical processing, and water treatment plants to switch discrete field loads. Its 16-channel design cuts rack space consumption in half compared to 8-channel relay output modules.This unit differentiates from solid-state DO variants by supporting high-current AC/DC inductive field loads and adding dedicated relay health diagnostics for predictive maintenance. OEM field logging lists its rated MTBF at 52,000 operating hours under continuous 24/7 power plant cabinet runtime at 50 °C ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | Emerson Westinghouse Ovation DCS local / remote I/O racks |
| Output Channel Count | 16 independent Form-C SPDT relay channels |
| Single Channel Contact Rating | 5 A resistive @ 250 VAC; 2 A inductive @ 24 VDC |
| Galvanic Isolation | 2500 Vrms channel-to-backplane isolation (blocks field transient noise) |
| Hot Swap Functionality | Ovation compliant, replaceable without full DCS rack shutdown |
| Onboard Diagnostic Logic | Contact weld-out detection, open coil monitoring, per-channel fault LED indicators |
| Module Operating Supply | 24 VDC nominal rack backplane logic supply |
| Status Indicators | Global Power OK, Communication OK, Internal Fault LED; individual channel status LEDs |
| Mechanical Form Factor | Single slot Ovation I/O rack plug-in module; net weight 0.34 kg |
| Overall Module Dimensions | 121 mm L × 51 mm W × 166 mm D |
| Continuous Operating Ambient Temp | -25 °C to +70 °C full rated switching capacity; linear derate above +70 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH humidity range |
| Integrated Protection Circuits | Onboard backplane overvoltage clamping, relay coil transient suppression diodes |
| Compliance Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, power generation standard qualified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial number against Emerson Ovation OEM part databases; inspect front channel LED array for dead segments, rack gold edge connector pins for oxidation, relay terminal solder joints for cold cracks. Photograph rack backplane pinout for field DCS cabinet wiring reference.
- Live Functional Test: Insert module into standard Ovation I/O test rack paired with variable AC/DC load banks; run 24 hour cyclic relay on/off switching profiles across all 16 channels simultaneously. Use a Fluke 115 signal logger to track contact switching timing and fault diagnostic trigger consistency.
- Electrical Parameter Test: 2500 V Megger isolation test between each relay channel circuit and module backplane ground (pass threshold >10 MΩ); verify relay contact withstands full 5 A 250 VAC rated load without thermal drift.
- Diagnostic & Comms Verification: Simulate welded contacts and open relay coil faults to validate per-channel fault LED illumination and DCS controller alarm register feedback; retain full channel configuration tables over a 12 hour rack power-off cycle to validate non-volatile memory retention.
- Final QC & Packaging: Clean rack edge connector gold plating during refurbishment cycles to remove surface oxidation; fit plastic protective dust cap over front LED panel, seal unit in anti-static PE foam bag, apply dated QC Pass label listing relay contact continuity, isolation resistance, and fault diagnostic function test metrics before rigid shock-resistant carton shipping.
Replacement Pitfall Guide
❗ Relay DO Module Model Mismatch Risk: Low-density 8-channel Ovation relay DO modules cannot replace this 16-channel 1C31219G01 unit. Direct substitution halves available field control outputs and requires full DCS control logic tag remapping. Match full 1C31219G01 part number for high-density discrete actuator control racks only. Photograph original DCS I/O point channel mapping before module extraction from the rack.❗ Partial Rack Insertion Hazard: Uneven module insertion creates high-resistance backplane contact points that break DCS communication and trigger random relay dropout alarms during critical process runs. Tighten rack retainer latches fully to lock the module flush against the backplane edge connector.❗ Field Load Overcurrent Miscalculation Risk: Inductive solenoid and valve actuator inrush current can exceed the 5 A resistive contact rating. Add external interposing relay panels for high-inductance field loads to prevent premature relay contact burnout.❗ DCS Cabinet Condensation Short-Circuit Risk: Cold-stored modules moved into warm humid power plant control enclosures form PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before inserting into powered Ovation I/O racks to prevent relay driver chip corrosion and intermittent channel fault dropout.❗ ESD Relay Driver Circuit Damage: Onboard relay control ASIC circuits carry low electrostatic discharge tolerance. Always rest the module on a grounded anti-static mat during rack insertion or field terminal wiring rewiring, especially in low-humidity climate-controlled central control rooms.Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- Ovation 8-channel relay DO module → 1C31219G01 : Needs Adaptation — expand DCS point database to add 8 extra discrete output tags, rework field wiring harness to accommodate 16-channel terminal base
- Ovation standard I/O rack backplane base unit → 1C31219G01 : Direct — factory edge connector pinout natively matches backplane 24 V logic supply and DCS communication signal routing
- VM310 24 V cabinet auxiliary power supply → 1C31219G01 : Direct — regulated 24 V DC auxiliary rail matches Ovation rack backplane module supply requirements without voltage conditioning
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → 1C31219G01 : Direct — DCS alarm dry contacts wire directly to motion PLC 24 V digital input channels for process-motion interlock logic
