Product Core Brief

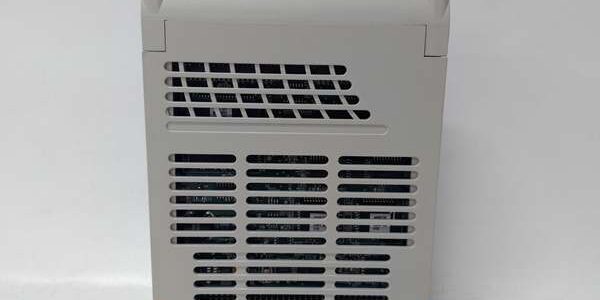

- Model: 1C31166G01
- Brand: WESTINGHOUSE (Emerson Ovation DCS Link Controller LC personality module family)
- Series: Ovation Link Controller dedicated serial communication personality module
- Core Function: Serve as front-end RS232 serial interface for Ovation Link Controller (LC), provide isolated local PC commissioning port, upload/download DCS control logic, calibrate I/O scaling parameters, and support real-time serial data monitoring for power/chemical process DCS systems.
- Product Type: Single-slot plug-in personality card matched to Ovation Link Controller electronic base unit, hot-swappable inside standard Ovation I/O racks
- Key Specs: Isolated RS232 DB9 front port | 300–19200 adjustable baud rate | 1000 V field-to-backplane galvanic isolation | Hot-swap support | Per-port communication fault diagnostics | Condition: Refurbished Load-Tested Surplus; ⚠️ EOL legacy power plant DCS spare
- Design note: Exclusive personality module for Link Controller LC; paired electronic base unit required for full functionality, auto-recognized by Ovation DCS without manual DIP switch addressing.
Product Introduction
The WESTINGHOUSE 1C31166G01 is a dedicated RS232 serial personality module built exclusively for Emerson Ovation Link Controllers, deployed across power generation, chemical and water treatment plants to enable on-site DCS engineering access without disrupting plant running logic. It creates a galvanically isolated serial tunnel between local engineering laptops and the Ovation Link Controller core firmware.This unit differentiates from RS485 variant 1C31169G02 by implementing RS232 point-to-point local commissioning instead of multi-drop field bus communication. OEM field logging lists its rated MTBF at 53,000 operating hours under continuous 24/7 control cabinet runtime at 50 °C ambient.
Key Technical Specifications
| Parameter | Value |
|---|---|
| System Compatibility | Emerson Westinghouse Ovation Link Controller (LC) electronic base unit, standard Ovation I/O racks |
| Serial Communication Standard | RS-232, front panel female DB9 connector |
| Supported Baud Rates | 300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 bps software configurable |
| Galvanic Isolation | 1000 Vrms serial port to DCS backplane isolation for EMI noise suppression |
| Hot Swap Functionality | Ovation compliant; replaceable without full rack or DCS controller shutdown |
| Onboard Diagnostic Logic | Serial link loss detection, communication parity error monitoring, module power fault LED indication |
| Module Operating Supply | 5 V DC nominal Link Controller backplane logic supply; 180 mA typical steady draw |
| Status Indicators | Global Power OK, Link Communication OK, Serial Fault front panel LEDs |
| Mechanical Form Factor | Single slot Ovation I/O rack plug-in personality module; net weight 0.35 kg |
| Overall Module Dimensions | 125 mm L × 51 mm W × 113 mm D |
| Continuous Operating Ambient Temp | -20 °C to +60 °C full rated communication stability; linear performance derate above +60 °C |
| Storage / Transport Temperature | -40 °C to +85 °C, non-condensing 5–95 % RH humidity range |
| Integrated Protection Circuits | line transient surge clamping, backplane overvoltage lockout, reverse supply polarity protection |
| Compliance Certifications | UL, CE, RoHS, EN61000 Class A industrial EMC filtering, power generation control standard qualified |
Quality Control Process (Engineer’s Perspective)
- Incoming Verification: Cross-reference serial number against Emerson Ovation OEM part databases; inspect front DB9 port pins for bending, rack gold edge connector pins for oxidation, PCB solder joints for cold cracks. Photograph rack backplane pinout and DB9 wiring pinout for field DCS cabinet engineering reference.
- Live Functional Test: Insert module into matched Ovation Link Controller base unit test rack paired with engineering PC serial simulator; run 24 hour cyclic firmware upload/download and real-time data read/write profiles across all supported baud rate ranges. Use a Fluke 115 signal logger to track serial communication latency and link stability consistency.
- Electrical Parameter Test: 1000 V Megger isolation test between serial circuit and module backplane ground (pass threshold >10 MΩ); verify serial transceiver withstands industrial cabinet EMI noise without data corruption.
- Diagnostic & Comms Verification: Simulate disconnected serial cable and parity error conditions to validate fault LED illumination and DCS controller alarm register feedback; retain full Link Controller communication configuration tables over a 12 hour rack power-off cycle to validate non-volatile memory retention.
- Final QC & Packaging: Clean rack edge connector gold plating during refurbishment cycles to remove surface oxidation; fit plastic protective dust cap over front DB9 port, seal unit in anti-static PE foam bag, apply dated QC Pass label listing serial throughput, isolation resistance, and communication fault diagnostic function test metrics before rigid shock-resistant carton shipping.
Replacement Pitfall Guide
❗ Photograph original DCS serial port baud rate configuration before module extraction from the rack.❗ Partial Rack Insertion Hazard: Uneven module insertion creates high-resistance backplane contact points that drop serial communication links mid-engineering download, risking incomplete DCS logic programming. Tighten rack retainer latches fully to lock the module flush against the backplane edge connector.❗ ❗ DCS Cabinet Condensation Short-Circuit Risk: Cold-stored modules moved into warm humid power plant control enclosures form PCB trace condensation within two hours. Allow minimum four-hour temperature acclimation before inserting into powered Ovation Link Controller racks to prevent serial transceiver chip corrosion and intermittent communication dropout faults.❗ Keep these in mind and you’ll cut 90% of rework time.
Compatibility Matrix & Benchmarks
Compatibility Matrix
- 1C31169G02 RS485 Link Controller personality module → 1C31166G01 : Needs Adaptation — rework Link Controller communication logic to support point-to-point engineering access, install dedicated shielded laptop cabling
- Ovation Link Controller LC electronic base unit → 1C31166G01 : Direct — factory edge connector pinout natively matches backplane 5 V logic supply and Link Controller internal communication signal routing
- VM310 24 V cabinet auxiliary power supply → 1C31166G01 : Direct — regulated 24 V DC auxiliary rail powers external engineering laptop serial port isolated circuit
- CML40.2-SP-330-NA-NNNN-NW Rexroth SERCOS motion PLC → 1C31166G01 : Direct — Ovation DCS serial alarm registers wire via Link Controller to motion PLC 24 V digital input channels for power-train coordinated interlock logic
