Component Snapshot At-a-Glance

• Model: DSAI130D, full part number 3BSE003127R1
• Alt. P/N: DSAI130 (8-channel single-ended base variant, incompatible backplane pinout, no differential topology)
• Product Series: ABB Advant OCS, S100 legacy rack I/O system

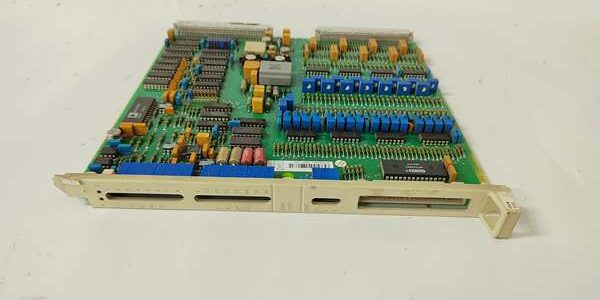

• Hardware Type: Single-slot rack mount differential analog input PCB, front multi-pin screw terminal bank, channel status LED array
• Key Feature: 16 fully differential input channels with four configurable analog filter cutoff frequencies for variable industrial noise suppression
• Primary Field Use: Capture differential ±10V voltage and ±10mA current signals from pressure, flow, vibration, temperature transmitters for legacy Advant DCS closed-loop control

Hard-Numbers: Technical Specifications

• Protocol Support: S100 I/O proprietary parallel rack backplane bus, interfaces to Advant Master controller chassis
• Port Count: 16 differential analog input terminal pairs, single rack backplane edge connector
• Baud/Data Rate: Fixed 20ms per-channel ADC conversion cycle, 50 Hz maximum per-channel sampling
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing 5–95% RH
• Isolation Rating: 1500VAC galvanic isolation between analog field circuits and S100 backplane logic
• Power Draw: Max 6W total module load, powered 24VDC from rack backplane power rail
• ADC Resolution: 12-bit differential conversion
• Full Scale Accuracy: ±0.03% of measurement range
• Supported Signal Ranges: Software selectable ±10VDC, ±10mA DC per channel
• Filter Cutoff Options: 10Hz, 30Hz, 100Hz, 300Hz software configurable per rack group
• Physical Weight: 0.475kg, dimension 365 × 261 × 20 mm
• Certifications: CE, UL/cUL, IEC 61010-1 industrial safety compliance

The Real-World Problem It Solves

Single-ended low-density DSAI130 boards only carry 8 acquisition points, doubling rack slot usage for high point-count process monitoring layouts. Single-ended wiring cannot cancel common-mode ground offset noise from long field transmitter cables routed alongside VFD power wiring.Fixed low-pass filter boards lack adjustable noise rejection; high-frequency vibration signal capture gets distorted with heavy filtering, while low-frequency flow signals pick up inverter hash without sufficient attenuation.Where you’ll typically find it:

• Fossil power plant Advant OCS turbine control racks for bearing vibration, steam pressure and exhaust temperature transmitters
• Refinery legacy DCS MCC cabinets for pipeline flow, reactor pressure and tank level differential sensors
• Pulp mill process control racks for stock consistency, dryer temperature and hydraulic pressure analog transmittersThis 16-channel differential card cuts rack slot consumption in half, cancels common-mode electrical interference via balanced wiring topology, and lets technicians tune filter response to match process signal bandwidth without swapping hardware.

Hardware Architecture & Under-the-Hood Logic

This module uses a dedicated analog front-end ASIC paired with shared 12-bit ADC hardware; no onboard standalone CPU, all scaled measurement values pass to the Advant Master controller over the S100 backplane bus.

1. 24VDC rack backplane power feeds internal EMI filtering, isolated analog power rails, and LED status indicator circuits.
2. Each differential channel pair routes balanced positive/negative field signals to discrete TVS surge suppression to block transient voltage spikes from long cable runs.
3. Software-selected analog low-pass filter stages attenuate high-frequency industrial noise at one of four fixed cutoff frequencies before ADC conversion.
4. Multiplexer cycles sequentially through all 16 differential channels, completing full 20ms conversion per channel before latching digital readings to onboard buffer registers.
5. Buffered raw ADC values and channel fault flags transfer cyclically to the backplane; controller scales raw counts to engineering units for HMI trending and interlock logic.

Field Service Pitfalls: What Rookies Get Wrong

Installing DSAI130 8-Channel Single-Ended Boards As Drop-In Replacements

Junior technicians pull DSAI130 spare stock without matching full part number. The backplane pin mapping and input topology differ entirely, cutting half the configured analog points and generating persistent bus mapping faults on controller warm restart.

• Field Rule: Only mount for 16-point differential AI rack slots; segregate DSAI130 single-ended spares to dedicated low-density cabinet storage bins.

Running Single-Ended Transmitter Wiring Into Differential Channel Terminals

Techs wire two-wire 4–20mA transmitters to only one leg of the differential input pair. Unbalanced wiring eliminates common-mode noise rejection, causing random signal drift and false high/low process alarms during VFD startup transients.

• Quick Fix: Terminate both positive and negative transmitter leads to matching differential channel terminals; tie unused negative legs to local field ground if single-ended sensors are unavoidable.

Hot-Swapping Module With Live Analog Field Wiring Terminated

Inductive voltage transients from energized sensor cables surge back through the backplane during card extraction. This corrupts controller analog register data and can trigger unplanned unit load reduction trips on critical turbine control systems.

• Field Rule: Cut rack main power supply and disconnect all field analog terminal wiring before inserting or removing the module.

Commercial Availability & Pricing Note

Please note: The listed price is for reference only and is not binding. Final pricing and terms are subject to negotiation based on current market conditions and availability.
