Component Snapshot At-a-Glance

• Model: DSDI110AV1, part number 3BSE018295R1
• Alt. P/N: DSDI110A (16-channel low-density variant, non-interchangeable backplane pinout)
• Product Series: S800 I/O, System 800xA DCS, Advant OCS legacy control racks

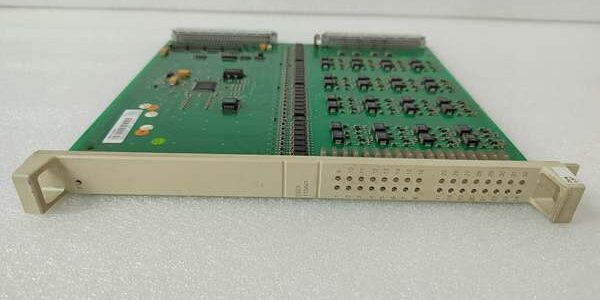

• Hardware Type: Single-slot plug-in rack digital input PCB, front screw terminal block, status LED bank
• Key Feature: Four independent 8-channel galvanically isolated banks with internal 24V wet contact excitation power
• Primary Field Use: Monitor passive valve limit switches, motor auxiliary contacts, breaker position feedback for process interlock and SOE logging

Hard-Numbers: Technical Specifications

• Protocol Support: S800 internal parallel backplane bus, Profibus DP via CI840A/CI840B communication interface
• Port Count: 32 digital input terminals split into four isolated 8-channel groups
• Baud/Data Rate: Backplane scan cycle fixed at 100ms, hardware event capture latency ≤1ms
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 500VAC opto-isolation between each channel group and control backplane logic
• Power Draw: Max 6W total module load, fed 24VDC from rack backplane power rail
• Input Voltage Range: 10–30VDC nominal 24V wet contact loop
• Per-Loop Current Draw: 3mA to 10mA closed contact operating current
• Filter Adjustment: Software configurable input debounce from 0ms to 100ms
• Physical Weight: 0.332kg, IP20 rated for cabinet-only mounting

The Real-World Problem It Solves

Dual 16-channel DSDI110A cards consume twice the rack space for high point-count I/O layouts, adding extra terminal terminations prone to corrosion in high-humidity pulp and refinery MCC rooms. External 24V power supplies for dry contact loops add wiring clutter and extra points of failure in densely packed control cabinets.Unisolated single-group input cards suffer ground loop voltage offsets from long field cables; VFD switching noise creates random false contact status trips that trigger unplanned process shutdowns.Where you’ll typically find it:

• Fossil and combined cycle power plant boiler DCS racks for pump, fan, and safety valve feedback
• Refinery ESD control cabinets for shutdown valve limit and circuit breaker position monitoring
• Pulp mill process line I/O racks for machine safety door and hydraulic valve auxiliary contactsThis single-slot 32-channel card cuts rack space usage in half, eliminates external contact power wiring, and blocks cross-talk noise with segmented isolation banks to reduce nuisance alarms.

Hardware Architecture & Under-the-Hood Logic

This module carries a dedicated local logic ASIC to handle channel sampling, fault detection, and backplane data packaging; no independent CPU for process control, all state data passes to the AC800M controller via S800 backplane.

1. 24VDC rack backplane power feeds onboard EMI filters, isolated optocoupler power rails, and channel diagnostic sensing circuits.
2. Each field passive contact connects to internal 24V excitation, forming a complete sensing loop; TVS transient suppression blocks surge spikes from long field wiring runs.
3. Four separate opto-isolation barriers separate field circuit ground potentials from low-voltage backplane logic, eliminating cross-group ground drift.
4. Onboard current sensors judge three distinct loop states: contact closed, open wire, short circuit, flagging faults to the controller without disabling adjacent channels.
5. Sampled channel data and diagnostic codes buffer to backplane registers, transmitted cyclically to the Profibus CI840 interface for controller logic and HMI alarming.

Field Service Pitfalls: What Rookies Get Wrong

Swapping DSDI110A 16-Channel Cards as Direct Replacements

Techs grab 16-channel spare boards without matching full part number. The backplane pin mapping differs entirely, cutting half the configured I/O points and throwing persistent bus mapping faults on controller startup.

• Field Rule: Only install for 32-point DI rack slots; segregate DSDI110A spares to dedicated low-density cabinet bins.

Stacking Multiple Contacts in Parallel on a Single Input Channel

Parallel limit switches create residual leakage current that skews loop voltage readings. The card misinterprets open contacts as closed during cabinet temperature swings, triggering false interlock trips.

• Quick Fix: Run one discrete contact per channel; use intermediate auxiliary relays if multiple switch signals require combined logic.

Hot-Swapping Module With Live Field Wiring Terminated

Inductive transients from energized field cables surge back through the S800 backplane bus during card extraction. This corrupts controller I/O register data and can initiate full plant safety trips.

• Field Rule: Drop cabinet main power and disconnect all field terminal wiring before removing or inserting the module.
