Component Snapshot At-a-Glance

• Model: DSDO115A, full part number 3BSE018298R1
• Alt. P/N: DSDO110A (16-channel low-density DO card, incompatible backplane pin layout)
• Product Series: S800 I/O, System 800xA, Advant OCS control rack hardware

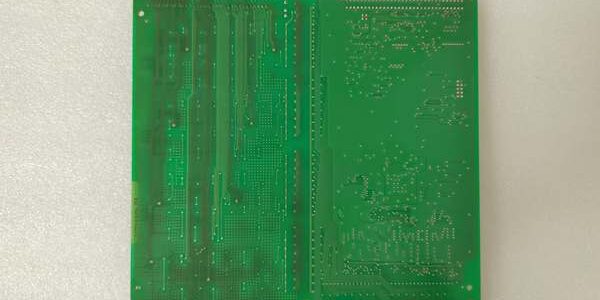

• Hardware Type: Single-slot plug-in solid-state digital output PCB, front screw terminal strip, channel status LED array
• Key Feature: 32 sink-type outputs split into four electrically isolated 8-channel banks with bank-level overcurrent protection
• Primary Field Use: Switch 24VDC solenoid valves, alarm beacons, auxiliary control relays for process interlock and shutdown logic

Hard-Numbers: Technical Specifications

• Protocol Support: S800 internal parallel backplane bus, Profibus DP communication via CI840A/CI840B interface modules
• Port Count: 32 digital sink output terminals, grouped into four independent 8-channel banks
• Baud/Data Rate: Fixed 100ms rack backplane scan cycle, instantaneous hardware output switching
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage, non-condensing humidity 5–95% RH
• Isolation Rating: 500VAC opto-isolation separating each output bank from control backplane logic
• Power Draw: Max 7W total module load, supplied 24VDC from rack backplane power rail
• Output Electrical Rating: Sink output, 0.5A maximum per single channel, 4A total limit per 8-channel bank
• Fault Cutoff: Overcurrent triggers automatic bank shutdown without disabling adjacent output groups
• Load Compatibility: 24VDC resistive and low-inductance solenoid loads
• Physical Weight: 0.34 kg, IP20 rated for cabinet-only installation
• Certifications: CE, UL/cUL, IEC 61010-1 industrial control safety standard

The Real-World Problem It Solves

Pairing two 16-channel DSDO110A boards burns double rack space for high-point valve and alarm layouts, adding extra terminal junctions prone to oxidation in humid pulp and offshore MCC rooms. Mechanical relay output cards suffer contact wear and stuck states after millions of switching cycles, increasing unplanned maintenance visits.Non-grouped output boards lack segmented overcurrent protection; one shorted solenoid load locks the entire module offline and triggers full process trip logic.Where you’ll typically find it:

• Combined cycle power plant boiler DCS racks for fuel gas solenoid and purge valve drive circuits
• Refinery ESD safety cabinets for shutdown valve coils and plant-wide hazard alarm stacks
• Paper mill process line I/O racks for hydraulic valve solenoids and machine fault indicator lightsThis solid-state 32-channel sink output card cuts rack slot usage in half, eliminates mechanical relay contact degradation, and isolates short-circuit faults to a single 8-channel bank to limit process disruption.

Hardware Architecture & Under-the-Hood Logic

This module holds dedicated output drive ASIC and bank fault detection circuitry; no onboard standalone CPU, all output setpoints arrive from AC800M controllers over the S800 backplane bus.

1. 24VDC rack backplane power feeds onboard EMI filters, optocoupler isolation supplies, solid-state sink driver circuits and front-panel LED indicators.
2. Each output bank uses independent TVS flyback suppression to absorb inductive kickback from solenoid coils during switch-off cycles.
3. Current sensing circuits monitor total draw per 8-channel bank; overcurrent condition cuts power to only the affected bank, leaving other three groups fully functional.
4. Opto-isolation barriers break ground potential differences between field 24V load circuits and low-voltage backplane logic to block ground loop noise interference.
5. Output state and bank fault codes buffer to backplane registers, transmitted cyclically to Profibus CI840 modules for controller logic execution and HMI fault alarming.

Field Service Pitfalls: What Rookies Get Wrong

Swapping DSDO110A 16-Channel DO Cards As Direct Drop-In Replacements

New technicians grab 16-channel spare boards without cross-checking full part numbers. Backplane pin mapping does not match, half of configured output points go offline and the controller logs persistent bus mapping faults after restart.

• Field Rule: Only install DSDO115A for 32-point DO rack slots; store DSDO110A spares in separate bins reserved for low-density auxiliary control racks.

Parallel Multiple High-Current Solenoids On A Single Output Channel

Stacking two or more solenoid coils on one terminal pushes channel load above the 0.5A limit, triggering repeated bank overcurrent trips and premature solid-state driver burnout.

• Quick Fix: Run one solenoid per channel; use intermediate 24V auxiliary relays to split high-current loads across multiple output terminals.

Hot-Swapping Module With Energized Solenoid Field Wiring Connected

Inductive voltage transients from live coil wiring surge backward through the S800 backplane during card removal. This corrupts controller I/O register data and can initiate unplanned safety shutdown sequences.

• Field Rule: De-energize cabinet rack power and disconnect all field terminal wiring before inserting or removing the DSDO115A module.
