Component Snapshot At-a-Glance

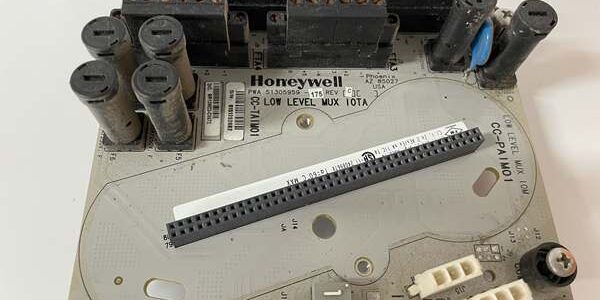

• Model: CC-TAIM01
• Alt. P/N: CC-PAIM01 (standard non-FTE low level MUX, backplane/IOTA pinout incompatible); CC-TAID01 (FTE high level 4-20mA AI, cannot read mV thermocouple signals)
• Product Series: Honeywell Experion PKS Series C FTE Fault Tolerant Ethernet I/O, matched to C300 FTE controllers
• Hardware Type: Rack-mount 16-channel low-level millivolt multiplexer IOM, hot-swap capable, mates exclusively with FTE TAIM series IOTA termination base
• Key Feature: FTE dual redundant backplane interface, per-channel galvanic isolation, integrated cold junction compensation (CJC) for all thermocouple types
• Primary Field Use: Capture weak millivolt signals from thermocouples, Pt100 RTDs, strain gauges on fault-tolerant FTE I/O racks for critical furnace and reactor temperature monitoring.

Hard-Numbers: Technical Specifications

• Protocol Support: FTE redundant I/O backplane bus, chassis diagnostic telemetry, native TC/RTD signal conditioning
• Port Count: 16 fully differential low-level input channels; FTE gold finger backplane connector; mates only with FTE TAIM IOTA base
• Baud/Data Rate: Fixed 100ms full module scan cycle; software configurable digital filter 1–100Hz per channel
• Operating Temperature: 0°C to +60°C cabinet operational; -40°C to +85°C storage
• Isolation Rating: 500Vrms channel-to-backplane galvanic isolation per input channel
• Power Draw: 24VDC ±10% rack supply, typical module power draw 5.1W
• ADC Resolution: 16-bit delta-sigma analog-to-digital conversion
• Supported Input Ranges: -100mV to +100mV differential; all standard TC (B/E/J/K/S/T/R), Pt100/Pt1000 RTD
• Input Impedance: >10MΩ per channel to avoid loading weak low-mV sensor outputs
• Accuracy Rating: ±0.05%FS at 25°C, ±0.1%FS full operating temperature range
• Built-In Diagnostics: Open wire detection, short circuit flag, CJC temperature drift alarm, FTE link loss
• Certifications: CE Class B EMC, ATEX Ex ec IIC T4 Zone 2 cabinet compliant
• Physical Weight: 0.84kg single module assembly

The Real-World Problem It Solves

Standard CC-PAIM01 low-level MUX hardware lacks FTE backplane circuitry, cannot mount in fault-tolerant I/O racks, forcing full cabinet rework for sites running redundant FTE control networks. Non-isolated low-density temperature IOMs create ground loop interference from furnace heating elements and VFD motor loads, causing wild temperature PV swings and false high-temperature safety trips.Without onboard CJC compensation, crews must install external cold junction blocks at every terminal marshalling panel, adding hours of calibration labor during annual outages. Generic low-level multiplexers lack channel-by-channel isolation; a single shorted thermocouple cable knocks out all 16 temperature points simultaneously.Where you’ll typically find it:

• Refinery FTE redundant I/O racks monitoring catalytic reactor and furnace thermocouple temperature loops
• Fossil power plant boiler superheater, furnace wall, turbine metal temperature FTE DCS panels
• Offshore FPSO chemical reactor FTE control cabinets with precision RTD temperature monitoringThis FTE-native low-level MUX eliminates external signal amplifiers and standalone CJC hardware, fits fault-tolerant I/O backplanes, and stabilizes weak thermocouple measurements in electrically noisy industrial cabinet environments.

Hardware Architecture & Under-the-Hood Logic

This module uses independent isolated differential signal conditioning circuits for every channel, paired with an FTE dedicated communication ASIC to transmit redundant temperature data without taxing the C300 FTE main CPU.

1. Weak millivolt TC/RTD signals enter matched FTE TAIM IOTA base, pass TVS surge suppression before 500V isolation barriers to break ground loop paths between field sensors and DCS cabinet ground.
2. Per-channel high-impedance input buffers prevent loading low-output thermocouple sensors, feed scaled differential voltage to 16-bit delta-sigma ADC sampling.
3. Onboard precision temperature sensor measures IOTA terminal block temperature, executes real-time cold junction compensation math to eliminate TC cold-joint measurement offset error.
4. Software-adjustable digital low-pass filters suppress high-frequency furnace EMI noise, configurable per channel to match slow RTD or fast thermocouple response speeds.
5. Dual redundant FTE backplane transceivers transmit validated temperature PV values, sensor fault codes, and CJC drift alarms to the C300 FTE controller over redundant I/O links.
6. Front panel multi-color LED bank displays module RUN status, aggregate channel fault, dual FTE backplane link health, and CJC drift warning for quick cabinet troubleshooting.

Field Service Pitfalls: What Rookies Get Wrong

Installing CC-PAIM01 Non-FTE Low Level MUX Into FTE TAIM IOTA Chassis

New techs swap standard CC-PAIM01 spare cards into FTE rack slots to reduce spare inventory costs. Mismatched backplane pinout breaks all FTE communication, module locks into permanent FAULT state, all 16 critical furnace temperature readings go invalid on HMI.Field Rule: Only deploy CC- on FTE Series C I/O chassis; segregate FTE and standard low-level AI spares in clearly labeled storage bins to avoid cross-installs.

Running Unshielded Thermocouple Extension Wire Parallel To VFD Power Cables

Apprentices route unshielded TC wire alongside variable frequency motor power cables. EMI noise injects large false mV offsets into temperature signals, triggering unplanned furnace high-temperature safety interlock trips.Quick Fix: Use shielded thermocouple extension wire for all field runs; terminate shield drain wire only at the FTE TAIM IOTA cabinet side, tape and isolate field thermocouple head shield from earth ground.

Failing To Update DCS Sensor Type Configuration After Thermocouple Replacement

Crews replace K-type thermocouple with S-type without updating CC- channel block configuration. Uncompensated CJC offset generates massive temperature reading drift, leading to off-spec furnace operation with no channel fault alarm.Field Rule: Re-verify sensor type and CJC calibration in Experion block configuration after every thermocouple/RTD field swap; cross-check PV against portable calibrator before returning temperature loop online.
